Service Bulletin
Bulletin No.:
Date:
15285D
April 2017
SPECIAL COVERAGE
SUBJECT: Special Coverage Adjustment – Excessive Engine Oil Consumption
MODELS: 2011 Chevrolet Equinox
2011 GMC Terrain
Equipped with 2.4L Engine (LAF)
The Piston and Ring Replacement section has been revised, prior to step 1, to emphasize the PCV
orifice procedure in the referenced Technical Service Bulletin. Please discard all copies of bulletin
15285C.
CONDITION
Some 2011 model year Chevrolet Equinox and GMC Terrain vehicles, equipped with a 2.4L engine,
may exhibit excessive engine oil consumption (less than 2,000 miles per quart of engine oil), due
to piston ring wear. If this condition is present, the oil can light may illuminate on the instrument
panel or the following message may appear in the Driver Information Center: “Oil Pressure Low –
Stop Engine”.
SPECIAL COVERAGE ADJUSTMENT
This special coverage covers the condition described above for a period of 7 years and 6 months
or 120,000 miles (193,000 km), whichever occurs first, from the date the vehicle was originally
placed in service, regardless of ownership.
Dealers are to replace the 4 piston assemblies. The repairs will be made at no charge to the
customer.
For vehicles covered by Vehicle Service Contracts, all eligible claims with repair orders on or after
July 21, 2015, are covered by this special coverage and must be submitted using the labor operation
codes provided with this bulletin. Claims with repair orders prior to July 21, 2015, must be submitted
to the Service Contract provider.
VEHICLES INVOLVED
All involved vehicles are identified by Vehicle Identification Number on the Applicable Warranties
section in GM Global Warranty Management system. Dealership service personnel should always
check this site to confirm vehicle involvement prior to beginning any required inspections and/or
repairs. It is important to routinely use this tool to verify eligibility because not all similar vehicles
may be involved regardless of description or option content.
Page 2 April 2017 Bulletin No.: 15285D
PART INFORMATION
Parts required to complete this special coverage are to be obtained from General Motors Customer
Care and Aftersales (GMCC&A).
Reminder: Parts may be removed from Retail Inventory Management (RIM) management.
Dealers should review the affected parts to confirm RIM managed status. Parts may have quantity
limiters in effect.
Part Number Description Quantity/Vehicle
19303450 Piston Kit 1

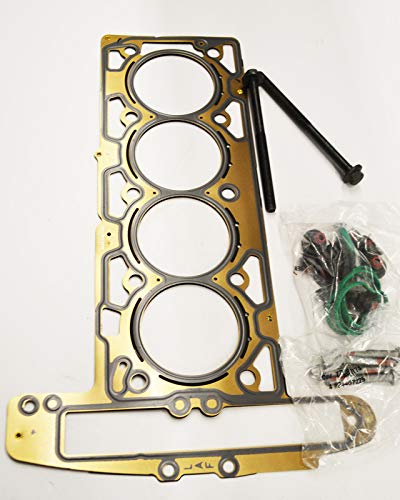

12637166 Gasket Kit, Cylinder Head 1
12609291 Gasket Kit, Camshaft Cover 1
12635447 Seal, Chain Package, Timing 1
12635427 Chain Assembly, W/Pmp And Balr Shf 1
12649233 Tensioner Asm – W/Pmp & Balr Shf Chain 1
24435052 Gasket, Engine Front Cover 1
12602379 Seal, Fuel Pump Housing (Oring) 1
12608374 Pipe Asm, Fuel Feed Inter 1
12584041 Seal, Cr/Shf Front Oil 1
11589123 Bolt Asm, Hx Hd W/Con Spr Washer 1
11588844 Bolt, Cm/Shf Posn Actr 2
12605566 Filter, Oil 1
19293000 Oil, Engine, AC Delco DEXOS1 5W30 5
90537293 Screw Schraube (Connecting Rod) 8
88864346 Sealant, RTV 2
90537336 Guide, Balr Chain 1
12346290 Coolant, Engine, Dexcool Antifreeze 1
SERVICE PROCEDURE
Note: This special policy covers repairs after the original powertrain warranty has expired. For
vehicles still covered under the original powertrain warranty, the labor code operations should be
used from bulletin 13-06-01-003.
Note: Technicians should perform an oil consumption test to determine if the pistons and rings
must be replaced. Follow the latest version of Corporate Bulletin Number 01-06-01-011 to perform
an oil consumption test. Before starting the oil consumption test, verify the ECM has latest
TIS2web calibrations to adjust the engine oil life monitor to a maximum of 7,500 miles (12,070 km)
— Refer to the latest version of Customer Satisfaction Bulletin number 12312.
Page 3 April 2017 Bulletin No.: 15285D
1. Determine the rate of oil consumption.
 If the oil consumption test indicates that the rate of consumption is less than 1 quart (0.946L)
of oil every 2,000 miles (3,200 km), note the oil consumption rate and the date that the ECM
was reprogrammed. No further action is required.
 If the oil consumption test indicates that the rate of consumption is greater than 1 quart
(0.946 L) of oil every 2,000 miles (3,200 km), note the oil consumption rate, the date that the
ECM was reprogrammed and replace the pistons and rings.
Note: The repair is to replace the pistons and rings. In some cases the bore surface may not have
a uniform look to the finish (zebra stripes) as shown in Technical Service Bulletin 13-06-01-003F.
As a result, some technicians may question whether the engine should be repaired or replaced.
After careful evaluation, GM Powertrain has determined that the new pistons and rings will
perform correctly in bores that have this appearance so engine replacement should not be
necessary. The cylinder bores do not need any machine or honing work performed on them. Refer
to Technical Service Bulletin 13-06-01-003F for more information.
Piston and Ring Replacement Procedure
2146346
Note: Review the following service procedures and technical bulletin in SI:
 Engine Replacement
 Technical Service Bulletin 13-06-01-003F placing a special emphasis on the PCV orifice
between the #2 and #3 intake runners.
 Piston and Connecting Rod Disassemble
 Piston and Connecting Rod Assemble
 Piston, Connecting Rod, and Bearing Installation (LAF, LAT, LE5, LE9, LEA, or LUK)
1. Remove the engine from the vehicle.
2. Remove the pistons from the engine.
3. Remove the pistons from the connecting rods.
4. Discard the pistons and piston rings.
Page 4 April 2017 Bulletin No.: 15285D
5. Install the new piston rings onto the new pistons.
6. Install the new pistons onto the connecting rods.
7. Assemble the engine.
8. Install the engine into the vehicle.
CUSTOMER REIMBURSEMENT – For US
Customer requests for reimbursement of previously paid repairs to correct the condition described
in this bulletin are to be submitted to the dealer by August 31, 2016, unless otherwise specified by
state law. If this is not convenient for the customer, they may mail the completed Customer
Reimbursement Request Form and all required documents to the GM Customer Assistance Center.
Repairs must have occurred within the 7 years and 6 months of the date the vehicle was originally
placed in service, or 120,000 miles, whichever occurs first.
All reasonable and customary costs to correct the condition described in this bulletin should
be considered for reimbursement. Any questions or concerns should be reviewed with your
GM representative prior to processing the request.
When a customer requests reimbursement, they must provide the following:
 A completed Customer Reimbursement Request Form. This form is mailed to the customer
or can be obtained through GM GlobalConnect.
 The name and address of the person who paid for the repair.
 Paid receipt confirming the amount of the repair expense, a description of the repair, and
the person or entity performing the repair.
IMPORTANT: GM requires dealers to approve or deny a reimbursement request within 30 days of
receipt. If a reimbursement request is approved, the dealer should immediately issue a check to
the customer and submit an appropriate warranty transaction for the incurred expense. If a
reimbursement request is denied, the dealer MUST provide the customer with a clear and concise
explanation, in writing, as to why the request was denied. The bottom portion of the Customer
Reimbursement Request Form may be used for this purpose. If the denial was due to missing
documents, the customer can resubmit the request when the missing documents are obtained, as
long as it is still within the allowed reimbursement period.
Warranty transactions for customer reimbursement of previously paid repairs are to be submitted
as required by GM Global Warranty Management. Additional information can also be found in
Warranty Administration Bulletin 11-00-89-004.
Page 5 April 2017 Bulletin No.: 15285D
CUSTOMER REIMBURSEMENT – For Canada and Export
Customer requests for reimbursement of previously paid repairs to correct the condition described
in this bulletin are to be submitted to the dealer prior to or by August 31, 2016. Repairs must have
occurred within the 7 years and 6 months of the date the vehicle was originally placed in service, or
193,000 kilometers, whichever occurs first.
When a customer requests reimbursement, they must provide the following:
– Proof of ownership at time of repair.
– Original paid receipt confirming the amount of unreimbursed repair expense(s) (including
Service Contract deductibles), a description of the repair, and the person or entity performing
the repair.
All reasonable and customary costs to correct the condition described in this bulletin should be
considered for reimbursement. Any questions or concerns should be reviewed with your GM
representative prior to processing the request.
COURTESY TRANSPORTATION – For US and Canada
The General Motors Courtesy Transportation program is intended to minimize customer
inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited
Warranties. The availability of courtesy transportation to customers whose vehicles are within the
warranty coverage period and involved in a product program is very important in maintaining
customer satisfaction. Dealers are to ensure that these customers understand that shuttle service
or some other form of courtesy transportation is available and will be provided at no charge. Dealers
should refer to the General Motors Service Policies and Procedures Manual for Courtesy
Transportation guidelines.
WARRANTY TRANSACTION INFORMATION
Submit a transaction using the table below. All transactions should be submitted as a ZREG
transaction type, unless noted otherwise.
Note: This special policy covers repairs after the original powertrain warranty has expired. For
vehicles still covered under the original powertrain warranty, the labor code operations
should be used from bulletin 13-06-01-003 as shown below.
Note: To avoid having to “H” route the customer reimbursement transaction for approval, it must
be submitted prior to the repair transaction.
Note: The labor times have been revised in the labor time files. The Labor Time Guide was
updated February 1, 2016.
For Use With Vehicles Still Covered Under Applicable New Vehicle Limited Warranties
Labor
Code Description
Labor
Time
Net
Item
4080008 Oil Consumption Test Setup – No Repair Required 0.2 N/A
4080178 Piston, Connecting Rod and Bearing Replacement (Includes Oil
Consumption Test)
– AWD
– FWD
13.0
12.6
*
Page 6 April 2017 Bulletin No.: 15285D
Note: For reimbursements on vehicles covered under warranty, refer to the Policies and Procedures
Manual.
For Use With Vehicles No Longer Covered Under Applicable New Vehicle Limited
Warranties
Labor
Code Description
Labor
Time
Net
Item
9900183 Oil Consumption Test Setup – No Repair Required 0.2 N/A
9900184 Piston and Piston Ring Replacement (Includes Oil Consumption
Test)
– AWD
– FWD
13.0
12.6
N/A
9900185 Customer Reimbursement Approved 0.2 *
9900186 Customer Reimbursement Denied – For US dealers only 0.1 N/A
* The amount identified in Net/Reimbursement should represent the dollar amount reimbursed to
the customer.
CUSTOMER NOTIFICATION
General Motors will notify customers of this special coverage on their vehicles (see copy of typical
customer letter included with this bulletin – actual divisional letter may vary slightly).
Page 7 April 2017 Bulletin No.: 15285D
August 2015
This notice applies to your vehicle, VIN: _____________________________________
Dear General Motors Customer:
As the owner of a 2011 model year Chevrolet Equinox or GMC Terrain, your satisfaction with our
product is very important to us.
This letter is intended to make you aware that some 2011 model year Chevrolet Equinox and
GMC Terrain vehicles, equipped with a 2.4L engine, may exhibit excessive engine oil
consumption (less than 2,000 miles per quart of engine oil), due to piston ring wear. Check your
oil level periodically. Also, if this condition is present, the oil can light may illuminate on your
instrument panel or you may have the following message in the Driver Information Center: “Oil
Pressure Low – Stop Engine”. See your owner manual for additional information on what to do if
the vehicle displays this message.
Do not take your vehicle to your GM dealer as a result of this letter unless you believe that
your vehicle has the condition as described above.
What We Have Done: General Motors is providing owners with additional protection for the
condition described above. If this condition occurs on your 2011 model year Chevrolet Equinox or
GMC Terrain within 7 years and 6 months of the date your vehicle was originally placed in service
or 120,000 miles (193,000 km), whichever occurs first, the condition will be repaired for you at no
charge. Diagnosis or repair for conditions other than the condition described above is not
covered under this special coverage program.
What You Should Do: Be sure to maintain proper engine oil level at all times and have the oil
changed when the CHANGE ENGINE OIL SOON message appears on the Driver Information
Center. If you believe that your vehicle has the condition described above, repairs and
adjustments qualifying under this special coverage must be performed by a General Motors
dealer. You may want to contact your GM dealer to find out how long they will need to have your
vehicle so that you may schedule the appointment at a time that is convenient for you. This will
also allow your dealer to order parts if they are not already in stock. Keep this letter with your
other important glove box literature for future reference.
Reimbursement: If you have paid for repairs for the condition described in this letter, please
complete the enclosed reimbursement form and present it to your dealer with all required
documents. Working with your dealer will expedite your request, however, if this is not
convenient, you may mail the completed reimbursement form and all required documents to
Reimbursement Department, PO Box 33170, Detroit, MI 48232-5170. The completed form and
required documents must be presented to your dealer or received by the Reimbursement
Department by August 31, 2016, unless state law specifies a longer reimbursement period.
If you have any questions or need any assistance, just contact your dealer or the appropriate
Customer Assistance Center at the number listed below.
Page 8 April 2017 Bulletin No.: 15285D
Division Number Text Telephones
(TTY)
Chevrolet 1-800-222-1020 1-800-833-2438
GMC 1-800-462-8782 1-888-889-2438
Guam 65-6267-1752
Puerto Rico – English 1-800-496-9992
Puerto Rico – Español 1-800-496-9993
Virgin Islands 1-800-496-9994
We are sorry for any inconvenience you may experience; however, we have taken this action in
the interest of your continued satisfaction with our products.
Alicia S. Boler-Davis
Sr. Vice President
Global Connected Customer Experience
Enclosure
15285
GLOBAL SAFETY FIELD INVESTIGATIONS
DCS4430
URGENT – DISTRIBUTE IMMEDIATELY
Date: April 28, 2017
Subject: 15285D – Special Coverage
Excessive Engine Oil Consumption
Revised Piston and Ring Replacement section
Models: 2011 Chevrolet Equinox
2011 GMC Terrain
Equipped with 2.4L Engine (RPO LAF)
To: All General Motors Dealers
The Piston and Ring Replacement section has been revised, prior to step 1, to
emphasize the PCV orifice procedure in the referenced Technical Service
Bulletin. Please discard all copies of bulletin 15285C.
END OF MESSAGE

SEOCONTENT-END
