NHTSA ID Number: 10163271
Manufacturer Communication Number: 130601003I
Summary
This technical bulletin provides Correction information to find the cause of oil consumption. Techs should perform an oil consumption test first, check for oil leaks and if rate of oil consumption is high, then replace the pistons and the rings.
20 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
BUICK | LACROSSE | 2010-2013 |
| BUICK | REGAL | 2011-2013 |
| BUICK | VERANO | 2012-2013 |
| CHEVROLET | CAPTIVA | 2012-2013 |
| CHEVROLET | CAPTIVA SPORT | 2012 |
| CHEVROLET | EQUINOX | 2010-2013 |
| GMC | TERRAIN | 2010-2013 |
Condition
Excessive oil consumption and/or have to add oil between oil changes.
Parts
| Description | Part Number | Qty |
| PISTON AND RING KIT, ENG | 12683595 | 4 |
| GASKET KIT, CYL HD | 12637166  | 1 |
| SEAL, CM/SHF | 12609291 | 1 |
| BOLT, CONN ROD | 11570825 | 8 |

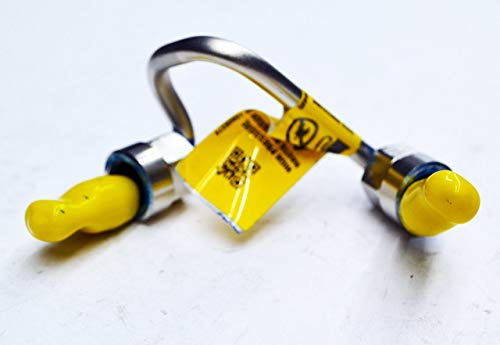

| PIPE, FUEL FEED INTER | 12608374 | 1 |
| SEAL, F/ PMP HSG | 12602379 | 1 |
| GASKET, F/ PMP BRKT | 12595951 | 1 |
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003I
Date: June, 2019
MC-10163271-9999.pdf 835.616KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10116880
Manufacturer Communication Number: 13-06-01-003H
Summary
This technical bulletin provides a procedure to replace the pistons, connecting rods and bearings for vehicles that have the condition of excessive oil consumption
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003H
Date: Feb-2016
MC-10116880-9999.pdf 874.343KB
Loading...
NHTSA ID Number: 10113541
Manufacturer Communication Number: 13-06-01-003G
Summary
This technical bulletin provides diagnostic and repair information on performing an oil consumption test and/or installing piston and piston ring kit to correct a customer concern for excessive oil consumption.
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003G
Date: Feb-2015
MC-10113541-9999.pdf 874.544KB
Loading...
NHTSA ID Number: 10137923
Manufacturer Communication Number: 13-06-01-003F
Summary
This technical bulletin provides a procedure to test for oil consumption and install new pistons and rings if no signs of consumption or oil leaks have been validated.
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003F
Date: May, 2014
MC-10137923-9999.pdf 1743.747KB
Loading...
NHTSA ID Number: 10137882
Manufacturer Communication Number: 13-06-01-003E
Summary
This technical bulletin provides a procedure to test for oil consumption and install new pistons and rings if no signs of consumption or oil leaks have been validated.
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003E
Date: April, 2014
MC-10137882-9999.pdf 1744.534KB
Loading...
NHTSA ID Number: 10130579
Manufacturer Communication Number: 13-06-01-003B
Summary
This technical bulletin provides a procedure for oil consumption test and set up including piston, connecting rod and bearing due to excessive oil consumption and/or need to add oil between oil changes.
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003B
Date: Jul-2013
MC-10130579-9999.pdf 650.995KB
Loading...
NHTSA ID Number: 10134748
Manufacturer Communication Number: 13-06-01-003
Summary
This technical bulletin provides a replacement for PIP5025F to advise engine replacement is no longer necessary if “zebra stripes” are present and to outline a related repair procedure.
1 Associated Document
Manufacturer Communications
Bulletin No.: 13-06-01-003
Date: Jun-2013
MC-10134748-9999.pdf 649.231KB
Loading...
