Upgrading an IO5 Non-Navigation Radio to an IO6 Navigation Radio – 2014-2015 Chevrolet Silverado & GMC Sierra

SEOCONTENT-START

#15-08-44-002: Information on Upgrading an IO5 NonNavigation Radio to an IO6 Navigation Radio – (Jul 22, 2015)

Subject:	Information on Upgrading an IO5 Non-Navigation Radio to an IO6 Navigation Radio
Models:	2014 Chevrolet Silverado 1500
	2015 Chevrolet Silverado 2500/3500 (without AVF)
	2014 GMC Sierra 1500
	2015 GMC Sierra 2500/3500 (without AVF)
	Equipped with IO5 Radio
Attention:	This Bulletin also applies to any of the above models that may be Export vehicles.

If a customer requests to upgrade an IO5 non-navigation radio to an IO6 navigational radio, technicians should follow the instructions below.

Note: Please review the entire procedure before trying to perform it.

1. Disable the SIR system. Refer to Vehicle Service Manual.

2. Remove the right windshield pillar assist handle covers (1).
3. Remove the right windshield pillar assist handle fasteners (2).

Tighten

Upon reassembly, tighten the right windshield pillar assist handle fasteners to 9 Nm (80 lb in).

4. Disengage the retainers and remove the right windshield garnish molding assembly (3).

Note: Upon reassembly, ensure the tab is fully seated in the I/P upper trim panel prior to engaging the upper retainer.

5. Disengage the retainers and remove the left windshield garnish molding assembly (1).

Note: Upon reassembly, the tether clip at the center portion of the left garnish molding must be replaced.

6. Using a flat-bladed plastic trim tool, release the 12 retainers securing the instrument panel extension (1) to the upper instrument panel.

Disconnect any electrical connectors.

Caution: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

7. Remove the instrument panel compartment bolts (1).

Tighten

Upon reassembly, tighten the instrument panel compartment bolts to 2.5 Nm (22 lb in).

8. Using a flat-bladed plastic trim tool, release the retainer clips securing the instrument panel compartment (2) to the instrument panel assembly.

9. Remove the instrument panel upper compartment bolts (1).

Tighten

Upon reassembly, tighten the instrument panel upper compartment bolts to 2.5 Nm (22 lb in).

10. Using a flat-bladed plastic trim tool, release the retainer clips securing the instrument panel upper compartment (2) to the instrument panel assembly.

11. Disconnect the electrical connections from the factory installed HMI module (1).
12. Slide the factory installed HMI module rearward to release from bracket.
13. Install the replacement HMI module, P/N 23266008, in reverse order and connect electrical connections.

14. Install navigation splitter (1), P/N 20960972, to the retaining tabs on bracket.

15. Unseat terminal (1) from cavity 2 of A-pillar harness connector (2).

16. Position connector from kit (1), P/N 13589365, next to current A-pillar harness connector (2) and insert previously removed terminal (3) into cavity 1 (A) of connector (1) P/N 13589365.

17. Unseat terminal (2) from cavity 2 of the A-pillar harness connector (3).
18. Position connector from kit (1), P/N 13589366, next to current A-pillar harness connector (3) and insert previously removed terminal (2) into cavity 2 (B) of connector (1) P/N 13589366.

19. Install coax jumper (1), P/N 23497539, from kit.
20. Insert female terminal end (4) into cavity 1 (A) of connector (5) P/N 13589366.
21. Insert other end of jumper (2) into splitter (3) (Gray Connector).

22. Install coax jumper (1), P/N 23497540, from kit.
23. Insert male terminal end (5) into cavity 2 (B) of connector (4) P/N 13589365.
24. Insert other end of jumper (2) into splitter (3) (Pink Connector).

25. Mate connectors (1) P/N 13589365 and (2) P/N 13589366.
26. Install coax jumper (3), P/N 23497541, from splitter (4) to HMI module.
27. Calibrate the HMI module. Go to HMI Programming Procedure-Human Machine Interface Control Module Programming and Setup-Replace and Program Control Module. Refer to Vehicle Service Manual.
28. Prior to re-installing upper and lower instrument panel compartments and trim, test drive the vehicle to ensure NAV function is working.
29. Inspect newly installed coax cables and connection system and if required use cable ties and foam tape, P/N 19243085, provided in the kit to secure existing parts.
30. Re-install previously removed trim.
31. Enable SIR system. Refer to Vehicle Service Manual.
32. Contact Techline Customer Support Center (TCSC) at 1-800-828-6860 English or 1-800-503-3222 French for vehicle software upgrade. ($50.00 additional reconfiguration fee).

Parts Information

Part Number	Description

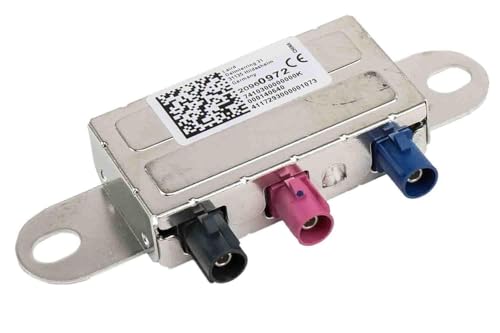

20960972 GM Genuine Parts 20960972 Navigation Signal Splitter Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE) GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle GM regularly updates production and service part designs to integrate new materials and technologies $69.86 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API	SPLITTER ASM-NAVN SIG
