Special Coverage Adjustment – Excessive Engine Oil Consumption – 2012 Chevrolet Equinox & GMC Terrain

NHTSA ID Number: 10118906

Manufacturer Communication Number: GCUS-9-4006



Summary

16118 – Special Coverage. Vehicles, equipped with a 2.4L engine, may exhibit excessive engine oil consumption (less than 2,000 miles [3,200 km] per quart [0.946 L] of engine oil), due to piston ring wear. If this condition is present, an audible rattle or knock from the engine may be heard. The engine oil pressure telltale may illuminate on the instrument panel or the following message may appear in the Driver Information Center: “Oil Pressure Low – Stop Engine”. If this condition occurs in the stated terms, dealers will replace pistons and piston rings.



Parts

1 Piston Kit 12683595
1 Gasket Kit, Cylinder Head 12637166
1 Gasket Kit, Camshaft Cover 12609291
1 Seal, Chain Package, Timing 12680750

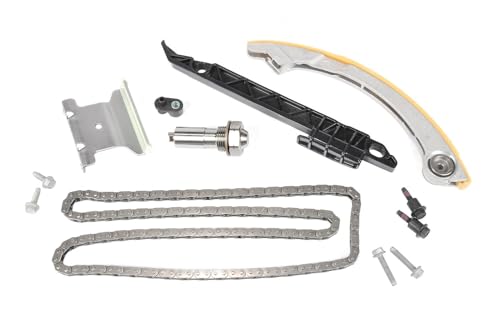

1 Chain Assembly, W/Pmp And Balr Shf 12635427
1 Tensioner Asm – W/Pmp & Balr Shf Chain 12649233
1 Gasket, Engine Front Cover 24435052
1 Seal, Fuel Pump Housing (Oring) 12602379
1 Pipe Asm, Fuel Feed Inter 12608374
1 Seal, Cr/Shf Front Oil 12584041
1 Bolt Asm, Hx Hd W/Con Spr Washer 11589123
2 Bolt, Cm/Shf Posn Actr 11588844
1 Filter, Oil 12605566
5 Oil, Engine, AC Delco DEXOS1 5W30 19293000
8 Screw Schraube (Connecting Rod) 90537293
2 Sealant, RTV – (US) 88864346
Sealant, RTV – ((Canada) 88861418
1 Guide, Balr Chain 90537336
1 Coolant, Engine, Dexcool Antifreeze – (US) 12346290
Coolant, Engine, Dexcool Antifreeze – (Canada) 10953464

2 Affected Products

Vehicles

MAKE MODEL YEAR
CHEVROLET EQUINOX 2012
GMC TERRAIN 2012

16118
April 2017

https://www.nhtsa.gov/recalls?nhtsaId=10118906

https://static.nhtsa.gov/odi/tsbs/2017/MC-10118906-9999.pdf

To View or Download this Document Click Here
