#15682-03: Special Coverage – Primary Tank Module Flange Fuel and Vapor Leaks – (Jan 17, 2017)

Subject:	15682–03 — Primary Tank Module Flange Fuel and Vapor Leaks
Models:	2007–2009 Cadillac XLR
	2007–2013 Chevrolet Corvette

Make	Model	Model Year		RPO	Description
		From	To
Cadillac	XLR	2007	2009
Chevrolet	Corvette	2007	2013

Involved vehicles are identified on the Applicable Warranties section in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.

Condition:	Some 2007 to 2009 model year Cadillac XLR and 2007 to 2013 model year Chevrolet Corvette vehicles may have a condition where a fuel odor is detected, fuel droplets appear below the left-hand fuel tank with fuel gauge level above 1/2, or a malfunction indicator lamp illuminates due to a leak path in the left-hand fuel pump module flange.
Special Coverage Adjustment	This special coverage covers the condition described above for a period of 10 years or 120,000 miles (193,000 km), whichever occurs first, from the date the vehicle was originally placed in service, regardless of ownership. For vehicles covered by Vehicle Service Contracts, all eligible claims with repair orders on or after July 25, 2016, are covered by this special coverage and must be submitted using the labor operation codes provided with this bulletin. Claims with repair orders prior to July 25, 2016, must be submitted to the Service Contract provider.
Correction	Dealers are to replace the left hand fuel tank fuel pump module. The repairs will be made at no charge to the customer.

Parts Information

Quantity	Part Name	Part No.

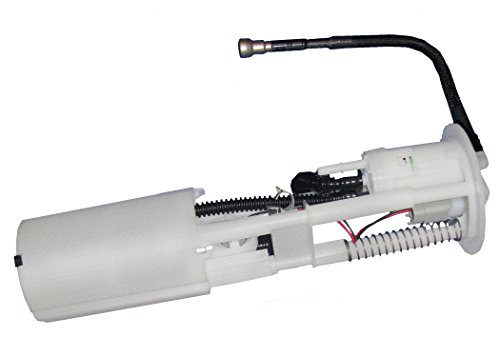

1	Fuel Tank Fuel Pump Module Kit	19354664 ACDelco GM Original Equipment M10057 (19354664) Fuel Pump Module Assembly without Fuel Level Sensor, with Seal Designed with guide rods to retain proper alignment while reducing pinching Include a reservoir and jet pump to prevent fuel pump starvation when the fuel level is low Most strainers are placed inside the module to help reduce the chance of puncture Acetyl plastic for good high-alcohol fuel tolerance Electrical connections are designed to help eliminate high resistance due to vehicle vibration Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API

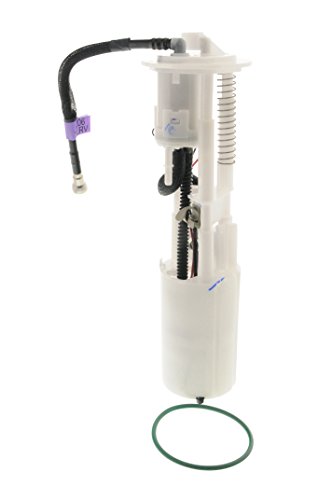

1	Fuel Tank Fuel Pump Module Kit	19354670 ACDelco GM Original Equipment M10059 (19354670) Fuel Pump Module Assembly without Fuel Level Sensor, with Seal Corvette. XLR. All. Left. 4.4l. 6.0l. 7.0l. Without zr1. Without supercharger. $305.04 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API
1	Fuel Tank Fuel Pump Module Kit	19354676 ACDelco GM Original Equipment M10068 (19354676) Fuel Pump Module Assembly without Fuel Level Sensor, with Seal Designed with guide rods to retain proper alignment while reducing pinching Include a reservoir and jet pump to fuel pump starvation when the fuel level is low Most strainers are placed inside the module to help reduce the chance of puncture Acetyl plastic for good high-alcohol fuel tolerance Electrical connections are designed to help eliminate high resistance due to vehicle vibration Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API
2	Exhaust Manifold Pipe Seal	10354707 General Motors 10354707, Catalytic Converter Gasket 7.0L. With supercharged. $16.99 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API
2	Exhaust Manifold Pipe Seal	12555555 General Motors, SEAL, 12555555 $70.98 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API

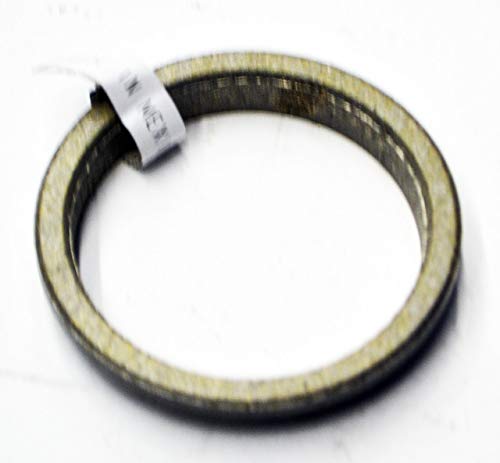

2	Exhaust Manifold Pipe Gasket	15272179 ACDelco, Gasket, 15272179 7.0L. With supercharged. Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API
2	Exhaust Manifold Pipe Gasket	21992620 General Motors 21992620, Exhaust Pipe to Manifold Gasket 4.6L. 4.0L, gasket. 6.2L supercharged. Without supercharged. Sedan, 3.6L twin-turbo. $26.99 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API

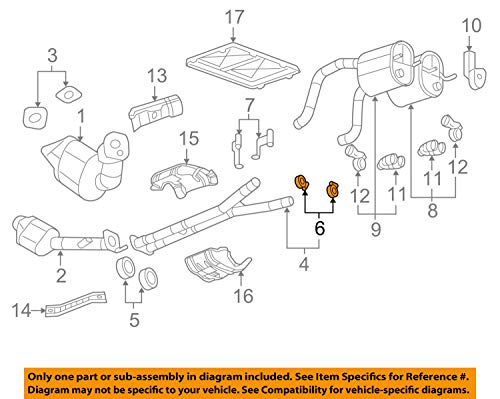

2	Exhaust Pipe Clamp	15102680 No products found.
2	Exhaust Pipe Clamp	10345549 General Motors 10345549, Exhaust Clamp Genuine General Motors OEM product $25.73 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API
4	Rear Crossmember Mounting Nuts	03537773
2	Trans Fluid Cooler Pipe Fitting Retainer	24205103 GM Genuine Parts 24205103 Multi-Purpose Retainer recommended replacement part for your gm vehicle’s original factory component offering the quality, reliability, and durability manufactured to gm oe specification for fit, form, and function package dimensions: 2.54 h x 0.508 l x 2.54 w (centimeters) Fit type: Vehicle Specific $6.87 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API

Note: Use the vehicle identification number (VIN), SI and the GM Electronic Parts Catalog (EPC) to determine which parts to order.

Parts required to complete this recall are to be obtained from General Motors Customer Care and Aftersales (GMCC&A). Please refer to your “involved vehicles listing” before ordering parts. Order parts on a CSO = Customer Special Order only. DRO’s may be cancelled. All orders will be reviewed prior to being filled. Parts may have quantity limiters in effect.

Note: Due to limited initial parts availability, dealers are encouraged not to order recall parts for use as
shelf stock.

Reminder: Parts may be removed from Retail Inventory Management (RIM). Dealers should review the affected parts to confirm RIM managed status.

Warranty Information

* The amount identified in “Net Item” should represent the dollar amount reimbursed to the customer.

For Export: Submit the dollar amount reimbursed to the Customer in Net/Reimbursement.

** Submit $10.00 administrative allowance in Net/Admin Allowance.

Service Procedure

1. Verify the fuel level is 3/8 or below before performing an evaporative emission system test. If the fuel level is above 3/8, drain fuel out of the fuel tank until it is 3/8 or below. Refer to Fuel Tank Draining in SI.
2. Inspect for an evaporative emission leak at the top of the left side fuel tank by performing an evaporative emission system test using the J 41413-200 Evaporative Emissions System Tester. Refer to Evaporative Emission System Diagnosis in SI.
   • If an evaporative emission leak is NOT detected at the top of the left side fuel tank, no further action is required. Inform the customer that any additional diagnosis and repairs are not covered under this special coverage.

Note: Do NOT remove the fuel tank until the replacement parts are available to complete the repair. Parts are in limited supply. A vehicle identification number (VIN) is required to order parts. Refer to the parts section of the bulletin.

• If an evaporative emission leak is detected at the top of the left side fuel tank, remove the fuel tank – left side. Refer to Fuel Tank Replacement – Left Side in SI.

3. Inspect the area below the electrical connector (as shown above) for evidence of fuel leakage.
   • If there is evidence of fuel leakage, replace the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement – Left Side (LS3, LS7) or Fuel Tank Fuel Pump Module Replacement – Left Side in SI.
   • If there is NO evidence of fuel leakage, no further action is required. Inform the customer that any additional diagnosis and repairs are not covered under this special coverage.
4. If fuel was removed to perform the evaporative emissions system test in step 1, refuel the fuel tank to the previous level.
