October 29, 2020 NHTSA CAMPAIGN NUMBER: 20V668000
Missing or Loose Bolts on Start/Stop Accumulator
Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, increasing the risk of a crash. A transmission fluid leak in the presence of an ignition source may increase the risk of fire.
NHTSA Campaign Number: 20V668
Manufacturer General Motors LLC
Components POWER TRAIN
Potential Number of Units Affected 194,105
Summary
General Motors LLC (GM) is recalling certain 2018-2019 Chevrolet Cruze and Buick LaCrosse, 2018-2020 Chevrolet Equinox, Chevrolet Traverse and GMC Terrain, 2018 Chevrolet Malibu, 2019-2020 Buick Encore, Buick Enclave, Cadillac XT4, Chevrolet Blazer and GMC Acadia, and 2020 Cadillac XT6 vehicles. The start/stop accumulator endcap may have missing or loose bolts.
Remedy
GM will notify owners, and dealers will inspect the start-stop transmission accumulator and replace it if any bolts are missing, free of charge. The recall began December 15, 2020. Owners may contact GMC customer service at 1-888-988-7267, Buick Customer service at 1-866-608-8080, Chevrolet customer service at 1-800-222-1020 or Cadillac customer service at 1-800-458-8006. GM’s number for this recall is N202313440.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.
Check if your Vehicle has a Recall
Condition
General Motors has decided that a defect which relates to motor vehicle safety exists in the affected vehicles identified above. These vehicles are equipped with a start-stop accumulator that may have missing bolts. Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, which could increase the risk of a crash. A transmission oil leak in the presence of an ignition source may increase the risk of fire.
Correction
Dealers will inspect the start-stop transmission accumulator and replace it if any bolts are missing.
Parts
Quantity | Part Name | Part No. |
6 Speed Transmissions | ||
1 | Transmission Fluid Accumulator Pipe Seal | 24282812 |

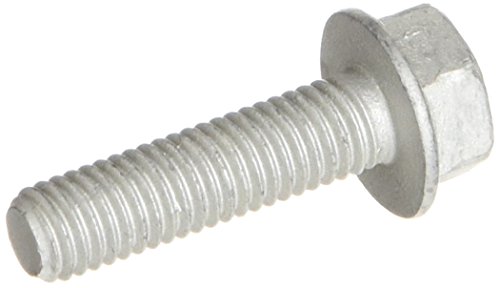

5 | Bolt | 11515758 |
1 | Transmission Fluid Accumulator Pipe | 24293150 |
1 | Transmission Fluid US | 88865601 |
Transmission Fluid CA | 19367328 | |
All Other Countries:
Obtain locally in compliance with GM Spec GMW16444 and Material Specification 9986153. |
||
9 Speed Transmissions | ||
3 | Bolt | 11515758 |
1 | Transmission Fluid US | 88865601 |
Transmission Fluid CA | 19367328 | |
All Other Countries:
Obtain locally in compliance with GM Spec GMW16444 and Material Specification 9986153. |
Service Procedure
Note: The purpose of this service procedure is to inspect for the presence of missing bolts in the Transmission Auxiliary Fluid Accumulator Cover, an example of which is shown above.
- Lift the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
- Looking straight up around the rear of the transmission, identify the transmission auxiliary fluid accumulator.
- Visually inspect for the presence of the three bolts shown above.
- Using your hand, feel for the presence of the bottom right bolt in the cover.
- If NONE of the four cover bolts are missing, no further action is required.
- If ANY of the four cover bolts are missing, replace the Transmission Auxiliary Fluid Accumulator. Refer to Auxiliary Fluid Accumulator Replacement in SI.
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
Equinox (LTG), Terrain, Traverse, Enclave, Acadia, Blazer, XT4, XT6, LaCrosse, Tracker, Encore, Encore GX, Cruze, Malibu
Note: Depending on your vehicle or engine/transmission/drive configuration, what you see may differ slightly from the below pictures. However, the inspection procedure itself is the same.
- Lift the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
- Looking up above the driver’s side wheel drive shaft, locate the transmission auxiliary fluid accumulator.
- Visually verify the first bolt (circled above) is installed. You will be looking for the threads protruding from the transmission fluid accumulator housing for these vehicles to verify the bolt is installed.
- Using a borescope, visually verify the next three bolts are installed.
- Top left.
- Bottom left.
- Bottom right.
- If NONE of the four cover bolts are missing, no further action is required.
- If ANY of the four cover bolts are missing, replace the Transmission Auxiliary Fluid Accumulator. Refer to Auxiliary Fluid Accumulator Replacement in SI.
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
Frequently Asked Questions (FAQs) for Safety Recall N202313440-01
Transmission Accumulator Bolts Missing
These questions and answers are being provided to help GM dealers respond to inquiries from involved vehicle owners about the Safety recall identified above.
Q1) Which vehicles are involved?
2018 Chevrolet Malibu, 2018 – 2019 Buick LaCrosse, 2018 – 2019 Chevrolet Cruze, 2018 – 2020 Chevrolet Equinox, 2018 – 2020 Chevrolet Traverse, 2018 – 2020 GMC Terrain, 2019 – 2020 Buick Enclave, 2019 – 2020 Buick Encore, 2019 – 2020 Cadillac XT4, 2019 – 2020 Chevrolet Blazer, 2019 – 2020 GMC Acadia, and 2020 Cadillac XT6.
Q2) What is the issue or condition?
General Motors has decided that a defect which relates to motor vehicle safety exists in the affected vehicles identified above. These vehicles are equipped with a start-stop accumulator that may have missing bolts.
Q3) What symptoms may be experienced? What warning signs may be associated with the issue or condition described?
Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak.
Q4) What is the remedy/repair?
Dealers will inspect the start-stop transmission accumulator and replace it if any bolts are missing.
Q5) What is the safety risk? Is the vehicle safe to drive?
Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, which could increase the risk of a crash. A transmission oil leak in the presence of an ignition source may increase the risk of fire.
Q6) Does the customer have to pay for this remedy/repair?
No, this inspection/repair will be done at no cost to the customer.
Q7) Is the remedy/repair available now?
Yes, the recall bulletin has been revised, and dealers can begin repairing vehicles.
Q8) What should customers do until recall repairs can be completed? Are there any special instructions?
If special instructions are provided, they will be included in the notification letters to customers.
Q9) How can customers check to see if their vehicle is involved in this field action?
Customers who own a vehicle involved in the field action will be notified by mail by General Motors, but they may also check their Vehicle Identification Number (VIN) for field actions in GM Owner Center at https://my.gm.com/recalls or via NHTSA’s website at https://vinrcl.safercar.gov/vin/.
Q10) If customers are concerned, can they get a rental car or courtesy transportation?
Courtesy transportation is available for customers whose vehicles are involved in this recall and are within the warranty coverage period for the warranty which is associated with this recall. Please refer to Warranty Administration Bulletin #17-NA-073: Field Action Courtesy Transportation Policy for further information.
SEOCONTENT-START
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Copyright 2020 General Motors. All Rights Reserved. Page 1 of 10
Release Date:
October 2020
Revision:
01
Revision Description:
This bulletin has been revised to include the remedy repair procedure and the customer letter. Please discard all previous copies of bulletin N202313440.
Attention:
It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied.
All involved vehicles that are in dealer inventory must be held and not delivered to customers, dealer traded, or used for demonstration purposes until the repair contained in this bulletin has been performed on the vehicle.
Make
Model
Model Year
RPO
Description
From
To
Buick
Enclave
2019
2020
Global Front Wheel Drive Transmission (6 or 9 Speed)
Encore
2019
2019
Encore GX
2020
2020
LaCrosse
2018
2019
Cadillac
XT4
2019
2020
XT6
2020
2020
Chevrolet
Blazer
2019
2020
Cruze
2018
2019
Equinox
2018
2020
Malibu
2018
2018
Tracker
2018
2019
Traverse
2018
2020
GMC
Acadia
2019
2020
Terrain
2018
2020
Involved vehicles are marked “open” on the Investigate Vehicle History screen in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.
Condition
General Motors has decided that a defect which relates to motor vehicle safety exists in the affected vehicles identified above. These vehicles are equipped with a start-stop accumulator that may have missing bolts. Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, which could increase the risk of a crash. A transmission oil leak in the presence of an ignition source may increase the risk of fire.
Correction
Dealers will inspect the start-stop transmission accumulator and replace it if any bolts are missing.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 2 of 10
Parts
Quantity
Part Name
Part No.
6 Speed Transmissions
1
Transmission Fluid Accumulator Pipe Seal
24282812
5
Bolt
11515758
1
Transmission Fluid Accumulator Pipe
24293150
1
Transmission Fluid
88865601 US
19367328 CA
All Other Countries:
Obtain locally in compliance with GM Spec GMW16444 and Material Specification 9986153.
9 Speed Transmissions
3
Bolt
11515758
1
Transmission Fluid
88865601 US
19367328 CA
All Other Countries:
Obtain locally in compliance with GM Spec GMW16444 and Material Specification 9986153.
Note: Use the VIN and the GM Electronic Parts Catalog (EPC) to determine which start-stop transmission accumulator to order.
It is estimated that only 11 involved vehicles will require start-stop transmission accumulator replacement. Please order parts accordingly.
Reminder: Parts may be removed from Retail Inventory Management (RIM). Dealers should review the affected parts to confirm RIM managed status. Parts may have quantity limiters in effect.
Warranty Information
Labor Operation
Description
Labor Time
Trans. Type
Net Item
9104970
Vehicle Passes Inspection – No Further Action Required
0.3
ZFAT
N/A
9105479
Transmission Auxiliary Fluid Accumulator Replacement (Includes Inspection)
LaCrosse
Encore
Encore GX
Malibu
Cruze
Tracker
XT4
Blazer
Equinox
Equinox RPO M3T only
Terrain
Acadia/Traverse/Enclave/XT6
0.4
0.8
0.9
1.2
1.2
0.8
2.2
1.2
3.0
0.6
4.2
1.2
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 3 of 10
Service Procedure 5666156
Note: The purpose of this service procedure is to inspect for the presence of missing bolts in the Transmission Auxiliary Fluid Accumulator Cover, an example of which is shown above.
Equinox (LYH Engine Only)
1. Lift the vehicle. Refer to Lifting and Jacking the Vehicle in SI. 5666157
2. Looking straight up around the rear of the transmission, identify the transmission auxiliary fluid accumulator.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 4 of 10
5666158
3. Visually inspect for the presence of the three bolts shown above.
4. Using your hand, feel for the presence of the bottom right bolt in the cover.
• If NONE of the four cover bolts are missing, no further action is required.
• If ANY of the four cover bolts are missing, replace the Transmission Auxiliary Fluid Accumulator. Refer to Auxiliary Fluid Accumulator Replacement in SI.
5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
Equinox (LTG), Terrain, Traverse, Enclave, Acadia, Blazer, XT4, XT6, LaCrosse, Tracker, Encore, Encore GX, Cruze, Malibu
Note: Depending on your vehicle or engine/transmission/drive configuration, what you see may differ slightly from the below pictures. However, the inspection procedure itself is the same.
1. Lift the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 5 of 10
5666159
2. Looking up above the driver’s side wheel drive shaft, locate the transmission auxiliary fluid accumulator.
5666160
3. Visually verify the first bolt (circled above) is installed. You will be looking for the threads protruding from the
transmission fluid accumulator housing for these vehicles to verify the bolt is installed.
4. Using a borescope, visually verify the next three bolts are installed.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 6 of 10
5666161
5. Top left.
5666162
6. Bottom left.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 7 of 10
5666163
7. Bottom right.
• If NONE of the four cover bolts are missing, no further action is required.
• If ANY of the four cover bolts are missing, replace the Transmission Auxiliary Fluid Accumulator. Refer to Auxiliary Fluid Accumulator Replacement in SI.
8. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in SI.
Dealer Responsibility – For USA & Export (USA States, Territories, and Possessions)
It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied.
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
Dealer Responsibility – All
All new, used, GM Certified Used, courtesy transportation vehicles, dealer shuttle vehicles, etc. in dealers’ possession and subject to this recall must be held and inspected/repaired per the service procedure of this bulletin before customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealer-traded, released to auction, used for demonstration, or any other purpose.
All GM Certified Used vehicles currently in the dealers’ inventory within the Certified Pre-Owned Inventory System (CPOIS) will be de-certified and must be held and remedied per the service procedure in this bulletin. Upon submitting an accepted/paid warranty transaction in the Global Warranty Management (GWM) system, the vehicle can be re-certified for sale within the CPOIS system, or once again be used in the CTP program.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 8 of 10
bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter. In summary, whenever a vehicle subject to this field action enters your vehicle inventory you must take the steps necessary to ensure the program correction has been made before selling the vehicle. In addition, for vehicles entering your facility for service, you are required to ensure the customer is aware of the open field action and make every reasonable effort to implement the program correction as set forth in this bulletin prior to releasing the vehicle.
Dealer Reports
For dealers with involved vehicles, a listing has been prepared and will be available through GM GlobalConnect Maxis Field Action Reports or sent directly to export dealers. The Inventory tab of the dealer reports will contain VINs that apply to this recall. This information is intended to assist dealers with the PROMPT COMPLETION of these vehicles. The Customer In-Service tab will contain customer names and addresses from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall may be a violation of law in several states.
Courtesy Transportation – For USA & Canada
Courtesy transportation is available for customers whose vehicles are involved in a product program and still within the warranty coverage period. See General Motors Service Policies and Procedures Manual for courtesy transportation program details.
Customer Notification
USA & Canada – General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).
Export – Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
GM bulletins are intended for use by professional technicians, NOT a “do-it-yourselfer”. They are written to inform these technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper service of a vehicle. Properly trained technicians have the tools, equipment, safety instructions, and know-how to do a job properly and safely. If a condition is described, DO NOT assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See your dealer for information on whether your vehicle may benefit from the information.
We Support Voluntary Technician Certification
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 9 of 10
IMPORTANT SAFETY RECALL
December 2020
This notice applies to your vehicle, VIN: _____________________________________
Dear General Motors Customer:
This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Buick Enclave, Encore & Encore GX, 2018-2019 model year LaCrosse, 2019-2020 model year Cadillac XT4, 2020 model year XT6, 2019-2020 Chevrolet Blazer, 2018-2019 Cruze, 2018-2020 Equinox, 2018 Malibu, 2018-2019 Tracker, 2018-2020 Traverse, 2019-2020 GMC Acadia, and 2018-2020 Terrain vehicles equipped with Global Front Wheel Drive Transmission (6 or 9 Speed). As a result, GM is conducting a safety recall. We apologize for this inconvenience. However, we are concerned about your safety and continued satisfaction with our products.
IMPORTANT
• Your vehicle is involved in GM safety recall N202313440.
• Schedule an appointment with your GM dealer.
• This service will be performed for you at no charge.
Why is your vehicle being recalled?
Your vehicle may be equipped with a start-stop accumulator that may have missing bolts. Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, which could increase the risk of a crash. A transmission oil leak in the presence of an ignition source may increase the risk of fire.
What will we do?
Your GM dealer will inspect the start-stop transmission accumulator and replace it if any bolts are missing. This service will be performed for you at no charge. Because of service scheduling requirements, it is likely that your dealer will need your vehicle longer than the actual inspection and service correction time of approximately 4 hours.
What should you do?
You should contact your GM dealer to arrange a service appointment as soon as possible.
Do you have questions?
If you have questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer Assistance Center at the number listed below.
Division
Number
Text Telephones (TTY)
Buick
1-866-608-8080
1-800-832-8425
Cadillac
1-866-982-2339
1-800-833-2622
Chevrolet
1-800-630-2438
1-800-833-2438
GMC
1-866-996-9463
1-800-462-8583
Puerto Rico – English
1-800-496-9992
Puerto Rico – Español
1-800-496-9993
Virgin Islands
1-800-496-9994
If after contacting your dealer and the Customer Assistance Center, you are still not satisfied we have done our best to remedy this condition without charge and within a reasonable time, you may wish to write the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, SE, Washington, DC 20590, or call the toll-free Vehicle Safety Hotline at 1.888.327.4236 (TTY 1.800.424.9153), or go to https://www.safercar.gov. The National Highway Traffic Safety Administration Campaign ID Number for this recall is 20V668.
Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days.
Product Safety Recall
N202313440 Transmission Accumulator Bolts Missing
Page 10 of 10
Maryann L. Combs
Vice President
Global Vehicle Safety
GM Recall: N202313440
******************************************************************************************************
Representative Letter – Customer letters are brand, model and model year specific; listing the 17-digit
VIN and are personalized.
IMPORTANT SAFETY RECALL
December 2020
This notice applies to your vehicle, VIN: _____________________________________
Dear General Motors Customer:
This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2019-2020 model year Buick Enclave, Encore & Encore GX, 2018-2019 model year LaCrosse, 2019-2020 model year Cadillac XT4, 2020 model year XT6, 2019-2020 Chevrolet Blazer, 2018-2019 Cruze, 2018-2020 Equinox, 2018 Malibu, 2018-2019 Tracker, 2018-2020 Traverse, 2019-2020 GMC Acadia, and 2018-2020 Terrain vehicles equipped with Global Front Wheel Drive Transmission (6 or 9 Speed). As a result, GM is conducting a safety recall. We apologize for this inconvenience. However, we are concerned about your safety and continued satisfaction with our products.
IMPORTANT
• Your vehicle is involved in GM safety recall N202313440.
• Schedule an appointment with your GM dealer.
• This service will be performed for you at no charge.
Why is your vehicle being recalled?
Your vehicle may be equipped with a start-stop accumulator that may have missing bolts. Missing bolts on the start-stop accumulator endcap could result in a transmission oil leak and may progress to a loss of propulsion, which could increase the risk of a crash. A transmission oil leak in the presence of an ignition source may increase the risk of fire.
What will we do?
Your GM dealer will inspect the start-stop transmission accumulator and replace it if any bolts are missing. This service will be performed for you at no charge. Because of service scheduling requirements, it is likely that your dealer will need your vehicle longer than the actual inspection and service correction time of approximately 4 hours.
What should you do?
You should contact your GM dealer to arrange a service appointment as soon as possible.
Do you have questions?
If you have questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer Assistance Center at the number listed below.
Division
Number
Text Telephones (TTY)
Buick
1-866-608-8080
1-800-832-8425
Cadillac
1-866-982-2339
1-800-833-2622
Chevrolet
1-800-630-2438
1-800-833-2438
GMC
1-866-996-9463
1-800-462-8583
Puerto Rico – English
1-800-496-9992
Puerto Rico – Español
1-800-496-9993
Virgin Islands
1-800-496-9994
If after contacting your dealer and the Customer Assistance Center, you are still not satisfied we have done our best to remedy this condition without charge and within a reasonable time, you may wish to write the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, SE, Washington, DC 20590, or call the toll-free Vehicle Safety Hotline at 1.888.327.4236 (TTY 1.800.424.9153), or go to https://www.safercar.gov. The National Highway Traffic Safety Administration Campaign ID Number for this recall is 20V668.
Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days.
Maryann L. Combs
Vice President
Global Vehicle Safety
GM Recall: N202313440
*********************************************************************************************************
GLOBAL SAFETY FIELD INVESTIGATIONS
DCS5600
URGENT – DISTRIBUTE IMMEDIATELY
Date: December 4, 2020
Subject: Safety Recall N202313440-01 – Update
Transmission Accumulator Bolts Missing
Models: 2018 Chevrolet Malibu,
2018 – 2019 Buick LaCrosse,
2018 – 2019 Chevrolet Cruze,
2018 – 2020 Chevrolet Equinox,
2018 – 2020 Chevrolet Traverse,
2018 – 2020 GMC Terrain,
2019 – 2020 Buick Enclave,
2019 Buick Encore,
2020 Buick Encore GX,
2019 – 2020 Cadillac XT4,
2019 – 2020 Chevrolet Blazer,
2019 – 2020 GMC Acadia,
2020 Cadillac XT6
Equipped with Global Front Wheel Drive Transmission (6 or 9 Speed)
To: All General Motors Dealers
On October 29, 2020, General Motors dealers were advised via GM GlobalConnect message GCUS-3-1952 of safety recall N202313440.
Dealers were instructed to inspect involved vehicles. Vehicles with missing transmission accumulator bolts were to be held until parts became available to replace the transmission accumulator. Parts are now available, and the bulletin has been revised to include the remedy repair.
Question and Answer Document (Q&A)
Attached to this message you will find a document that addresses the ten most likely questions customers may have regarding this Safety Recall. Please use this information as an aid to confidently answer customer concerns.
Global Warranty Management (GWM)
Global Warranty systems will be updated December 4, 2020.
END OF MESSAGE
GLOBAL SAFETY FIELD INVESTIGATIONS
********************************************************************************************************
GLOBAL SAFETY FIELD INVESTIGATIONS
DCS5558
URGENT – DISTRIBUTE IMMEDIATELY
Date: October 29, 2020
Subject: N202313440 – Transmission Accumulator Bolts Missing (Inspection Only)
Models: 2018 Chevrolet Malibu,
2018 – 2019 Buick LaCrosse,
2018 – 2019 Chevrolet Cruze,
2018 – 2020 Chevrolet Equinox,
2018 – 2020 Chevrolet Traverse,
2018 – 2020 GMC Terrain,
2019 – 2020 Buick Enclave,
2019 – 2020 Buick Encore,
2019 – 2020 Cadillac XT4,
2019 – 2020 Chevrolet Blazer,
2019 – 2020 GMC Acadia,
2020 Cadillac XT6
Equipped with Global Front Wheel Drive Transmission (6 or 9 Speed)
To: All General Motors Dealers
General Motors is releasing Safety Recall N202313440 today. The total number of U.S. vehicles involved is approximately 191,674. Please see the attached bulletin for details.
Question and Answer Document (Q&A)
Attached to this message you will find a document that addresses the ten most likely questions customers may have regarding this Safety Recall. Please use this information as an aid to confidently answer customer concerns.
Global Warranty Management (GWM)
The Required Field Action section on the Investigate Vehicle History (IVH) screen will be updated October 30, 2020 or sooner. A list of involved vehicles in dealer new inventory is attached to this message. Please hold all warranty transactions until IVH has been updated.
END OF MESSAGE
GLOBAL SAFETY FIELD INVESTIGATIONS
SEOCONTENT-END
25 Affected Products
Vehicles
MAKE | MODEL | YEAR |
BUICK | ENCLAVE | 2019-2020 |
BUICK | ENCORE | 2019-2020 |
BUICK | LACROSSE | 2018-2019 |
CADILLAC | XT4 | 2019-2020 |
CADILLAC | XT6 | 2020 |
CHEVROLET | BLAZER | 2019-2020 |
CHEVROLET | CRUZE | 2018-2019 |
CHEVROLET | EQUINOX | 2018-2020 |
CHEVROLET | MALIBU | 2018 |
CHEVROLET | TRAVERSE | 2018-2020 |
GMC | ACADIA | 2019-2020 |
GMC | TERRAIN | 2018-2020 |
13 Associated Documents
Recall Acknowledgement
RCAK-20V668-3693.pdf 287.413KB
Defect Notice 573 Report
RCLRPT-20V668-5029.PDF 220.046KB
Manufacturer Notices(to Dealers,etc) – Dealer Notification re Safety Recall N202313440-01 – Update Transmission Accumulator Bolts Missing
Miscellaneous Document – Frequently Asked Questions (FAQs) for Safety Recall N202313440-01 Transmission Accumulator Bolts Missing
RMISC-20V668-1275.pdf 85.049KB
Safety Bulletin re N202313440 Transmission Accumulator Bolts Missing
RCSB-20V668-6100.pdf 730.865KB
Recall Quarterly Report #1, 2020-4
RCLQRT-20V668-8083.PDF 211.155KB
Safety Bulletin
RCSB-20V668-5171.pdf 689.891KB
Owner Notification Letter(Part 577)
RCONL-20V668-4502.pdf 123.423KB
Recall Quarterly Report #3, 2021-2
RCLQRT-20V668-4909.PDF 211.351KB
Recall Quarterly Report #2, 2021-1
RCLQRT-20V668-8743.PDF 211.26KB
Manufacturer Notices(to Dealers,etc) – Dealer Notification re N202313440 – Transmission Accumulator Bolts Missing (Inspection Only)
Miscellaneous Document – Frequently Asked Questions (FAQs) for Safety Recall N202313440 Transmission Accumulator Bolts Missing
Recall Quarterly Report #4, 2021-3
RCLQRT-20V668-5621.PDF 211.457KB
Latest Recalls Documents
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=20V668&docType=RCL
- 【Easy to Use--Work out of box】+【FOXWELL 2024 New Version】 FOXWELL NT604 Elite scan tool is the 2024 new version from FOXWELL, which is designed for those car owners who want to figure out the cause issue before fixing the car problem via scanning the most common systems like abs srs engine and transmission.The NT604 Elite diagnostic tool comes with latest software, which can be used out of box. No need to waste time to download the software first.
- 【Affordable】+【Reliable Car Health Monitor】 Will you be confused what happen when the warning light of abs/srs/transmission/check engine flashes? Instead of taking your cars to dealership, this foxwell scanner will help you do a thorough scanning and detection for your cars and pinpoint the root cause. It will t-urn off the warning light car after the problem is fixed.👉TIPS: Airbag crash/collision data can NOT be cleared even you replace the new airbag.
- 【5 in 1 Diagnostic Scanner】Compared with those auto scanners (50-100), NT604 Elite code scanner not only includes their OBDII diagnosis but also it can be an abs/srs scanner, transmission and check engine code reader. When it’s an odb2 scanner, you can use it to check if your car is ready for annual test through I/M readiness menu. In addition, live data stream, built-in DTC library, data play back and print, all these features are a big plus for it.
- 【Fantastic AUTOVIN】+【No extra software fee】Through the AUTOVIN menu, this NT604 Elite car scanner allows you to get your V-IN and vehicle info rapidly, no need to take time to find your V-IN and input one by one. What's more, the NT604 Elite abs srs scanner supports 60+ car makes from worldwide (America/Asia/Europe). You don’t need to pay extra software fee.
- 【Solid protective case KO plastic carrying bag】+ 【Lifetime update】Almost all same price-level obd scanner diagnostic tool only offers plastic bag to hold on the scanner.However, NT604 Elite automotive scanner is equipped with solid protective case, preventing your obd2 scanner from damage. Then you don’t need to pay extra money to buy a solid toolbox.
- 🎉【2024 Upgraded Ver. of AL519/ ML519/ ML619】Autel develops the brand-new AutoLink AL619 as the advanced ver. of Autel ML519, AL519, AL319, MS309. This AL619 OBD2 scanner can scan ABS & SRS systems, and support 10 Modes of OBD II Diagnostics Function on Worldwide Vehicles to read, erase codes and turn off the MIL, ABS, SRS warning lights so that you can better maintain your car when related malfunctions occur and make your vehicle ready for the annual test.
- 🎉【Accurate ABS/ SRS Diagnostics Functions】The ABS/ SRS diagnostic function is used to retrieve and clear codes from the ABS/ SRS systems. It can read and clear DTCs, show definitions of each code, display live data of multiple sensors in the graph to locate fault causes, and assist home mechanics to do the proper repair and clear ABS & Airbag warning lights. Diagnoses ABS/ SRS system codes on most 1996 and newer major vehicle models. Please email 📩 immoautel @ outlook. com 📩 for help.
- 🎉【All 10 Modes of OBD II Diagnostics Function】The OBD II Diagnostics function is a fast-access option that allows you to carry out a quick test on the engine system of OBD II vehicles. Read Codes, Erase Codes, Live Data, Freeze Frame, Retrieving I/M Readiness Status, O2 Monitor Test, On-Board Monitor Test, DTC Lookup, Component Test, Viewing Vehicle Information, Modules Present.
- 🎉【Live Data and Freeze Frame Data】With Live Data functions, Autel AL619 OBD2 diagnostic code reader allows you to view the live PID (Parameter Identification Data) of the vehicle's computer module(s) in text, graph to check the status of various sensors. And Freeze Frame Data enables you to view the vehicle's operating parameters at the moment a DTC is detected. These information will aid the technician by allowing the parameters to be duplicated for diagnostic and repair purposes.
- 🎉【DTC Lookup Feature】Besides showing you the code’s definition while you are reading the diagnostic trouble codes, AL619 features comparably user-friendly DTC Lookup Function which enables you to retrieve the definitions of any error codes from the large database of AL619, saving you from the hassle of wasting time searching definition of every code via Google.
- 2024 Top Choice for ABS Bleeder Scan Tool - Is the brake pedal always slowly sinking down or becoming loose? This ABS brake bleeding scan tool will cycle the pump and valves to achieve a tight brake pedal. It's the most affordable obd2 scanner with ABS auto bleed. By following the instruction step by step, even a beginner can navigate through easily. Coverage check before purchasing via FOXWELL official site: Support- Diagnostic Coverage List. Tip: It won’t work on vehicles lacking an auto bleed function.
- More Than a Entry Level OBD2 Scanner, Ideal for Home Mechanics - Based on the NT301 FOXWELL Scanner, NT630 Plus takes OBD-II diagnostics to the next level by customizing functions for ABS and SRS system. This SRS and ABS scanner provides in-depth insights on error code diagnosis, wheel speed sensor, airbag circuits, cable connectors monitor, etc... Note: This scanner DOES NOT work on Airbag crash data/programming issues.
- No More Higher End Service than You Need - One NT630 Plus is enough! This obd2 scanner with ABS and SRS takes in-depth diagnosis on Anti-Lock Brake System & SRS/Airbag, and also performs Airbag light reset/ SAS(Steering Angle Sensor) adjustment/ Oil light reset daily reset services. These issues will be restored after the car faults repaired. Note: Some classic vehicles without the electronic control system can not support the reset service.
- Also can Work like NT301 - The NT630 Plus ABS code reader can connect to the OBD-II port directly. It will diagnose all OBD-II modules instantly, displays the live data, locates bad sensors and indicate I/M readiness status before the annual inspection. Guides you to do the maintenance work, reduces the potential driving risk and keep a peak performance on the road.
- Higher-level Services wih Lower Cost - Cost less to own a ABS SRS Bidirectional Scan Tool that is not found on similar code readers & scan tools. This car diagnostic scanner allows you to test all potential car faults in the ABS/Airbag system, with functions returning to normal once you exit the program. Please note, that only ABS/SRS modules are supported.
- [Transform Your Car Care Experience] - With BLCKTEC, instantly become your own professional mechanic. Effortlessly read and clear your car’s trouble codes and check engine light, ensuring your vehicle stays in top condition.
- [Empower Yourself with Comprehensive Diagnostics] - Unlock the full potential of your vehicle with the BLCKTEC 430. Access detailed diagnostics previously exclusive to professional mechanics’ OBD2 scan tools, including ABS, Airbag, SRS, TPMS codes, and beyond, right at your fingertips.
- [Drive with Confidence] - The BLCKTEC 430 is more than just a car code reader; it's your personal vehicle health advisor. Receive tailored repair reports with potential causes and verified solutions for your specific make and model, guiding you to the right fix every time.
- [Seamless Connectivity, Ultimate Convenience] - Experience the freedom of wireless diagnostics with this portable car scanner. Easily connect via Bluetooth to our intuitive sensor, and enjoy all the functionalities of high-end scan tools without the clutter of wires, directly from your smartphone or tablet.
- [DIY Repairs Made Easy] - Navigate car maintenance with ease using our premium app. Access a vast library of easy-to-follow repair videos, guiding you through each step of the repair process, compatible with both iOS & Android devices.
- 🔥【Easy to use and friendly】+【Faster diagnostic speed】 FOXWELL NT604 is the 2024 newest enhanced 4 system code reader, which is capable of reading/clearing fault codes, retrieving vehicle information and displaying 4-in-1 live data stream. You will easily find what's wrong with your car to avoid expensive trip to dealership. At the same time, this car scanner will directly tell you what the corresponding code means, avoiding the hassle of searching for information.
- 🛠【OBD2 Full Function】+【Check Engine/ABS/SRS/Transmission】 This scan tool will allow you to perform full OBDII diagnostic for all cars with OBDII protocols. You can use it to check if your car is ready for annual testing through the I/M Readiness menu. In addition, the device also has value-added functions such as real-time data flow, DTC Lookup, data playback, and printing. Turn off Check Engine/ABS/SRS/Transmission Light. Tips: the fault code can be only erased after the problem is fixed.
- 🚗【Cover 10000+ models &60+ Car Makes】 and 【AUTOVIN】 Compared with Other scanner which only supports 40 car makes, NT604 car diagnostic scanner for all cars contains more than 60 car brands and 10000+ cars for almost all OBDII cars sold worldwide like passenger car, SUVs, minivans, light-duty trucks, etc. produced by Asian, European, American with the supported year differing from 1996 to 2024. It allows you to get your VIN and vehicle info rapidly, no need to take time input one by one.
- 🛒【Battery Voltage Checker】+【Lifetime Free Update, No Subscription fee 】 It monitors the real-time voltage of the vehicle battery and displays it in graphical and textual form, informing you of the health status of the battery. Also monitor the health of your car. NT604 is equipped with the latest software directly, so you don't need to download a bunch of updated software after unboxing to use it. Lifetime no subscription fee for upgrading software.
- 🎁【Great festival Idea:Applicable for Many People】+【High End and Exquisite Protective Packaging】 Best one item for Dad, Husband, Boyfriend, Handy Men. Every car owner will need a 4 systems diagnostic scan tool! This code reader fits for home mechanic, DIY car owners, advanced hobbyiest, car dealer, auto repair shop, automotive engineer, diagnostic tech, automobile tech, individual. Apparently, this is the most economical scan tool for every mechanic.
- 💻Note: (About UPDATE) ANCEL FX2000 car scanner diasgnostic tool can be used directly as it comes with existed software, You don't need to register or update beforethe first use. It's recommended to update your scanner with SD card only when it fails to work on your car, or it's slow to load all menus or if you need newer software version. 📢Software update supports WIN XP, 7, 8, 10 operation systems only, but not for Mac and ios system. 📧Any concerns, pls feel free to 𝙚-𝙢𝙖𝙞𝙡 us via 𝙖𝙢𝙖𝙯𝙤𝙣 @ 𝙖𝙣𝙘𝙚𝙡𝙩𝙚𝙘𝙝. 𝙘𝙤𝙢.
- 🔧【PLUG AND PLAY - EASY TO USE】 : ANCEL FX2000 car scanner only takes 3 steps to connect to the car for diagnosis without cumbersome operations. The latest FX2000 automotive scanner diagnostic tool is equipped with a one-key diagnosis function, which can automatically identify the model and year of your car, and automatically diagnose the car. Even beginners can use this obd2 scanner with abs and srs to read the data and find out what the fault codes mean.
- 🚗【FULL OBD-LEVEL DIAGNOSTICS TOOL】: Quickly determines the cause of engine system faults, reads current, permanent and pending codes. After the repair, clears the codes and turns off the warning light. In addition, the FX2000 OBD2 scanner diagnostic tool also displays important OBD II advanced data such as fuel, live data and other manufacturer-specific parameters in real time to ensure that the engine ECU is operating correctly and safely, saving vehicle owners a lot of time and money in maintenance.
- 🚙【A/T TRANSMISSION FAULT DIAGNOSTIC TOOL】: Some noises come from the A/T transmission? Ancel obd2 scanner will read fault codes, display live transmission system data (fluid temperature, fluid pump, clutch actuation, pressure, etc.), and ensures transmission performance is optimal for vehicle speed and load. This transmission scanner provides detailed TCM data of the vehicle, so you can quickly and accurately find existing or potential problems.
- 🚐【FIND OUT SRS WRONG】: ANCEL FX2000 obd2 scanner with abs and srs is able to read and clear fault codes in the SRS (airbag) and turn off the warning light to make sure the system is working correctly and safely. This odb2 scanner also displays a live graphical data stream of the supplemental restraint system (air bag), which allows you to analyze and verify that the air bag system is working properly.
- [Pro OBD2 Scanner] - BlueDriver is the easiest way to scan and understand your vehicle like a professional mechanic. Read and clear your car’s trouble codes and check engine light.
- [Read & Clear All The Codes] - BlueDriver's enhanced vehicle diagnostics gives you access to information normally available only to mechanics on their OBD2 scan tools. Now you can read and clear ABS, Airbag, SRS, TPMS codes, and many more.
- [Get The Right Fix] - Much more than a car code reader, BlueDriver is a diagnostic tool. Get unlimited specific repair reports containing possible causes, reported fixes, and more for virtually every vehicle make and model.
- [Wireless & Bluetooth Enabled] - Say goodbye to wires. BlueDriver connects with Bluetooth via your phone/tablet to a sensor that plugs into your car's OBDII port. Get all of the capabilities of an expensive code reader & scan tool without any annoying wires.
- [User-Friendly App and Repair Videos] - BlueDriver gives you more ways to scan and fix your vehicle. Our iOS & Android app connects you to a large database of repair videos with step-by-step directions of repairs.
- The VD500 OBD2 scanner is specifically designed to diagnose Volkswagen Group (Fits for VW/Audi/Skoda/ SEAT) 12-volt 16-pin vehicles, but can also be used with other 12-volt (non-Volkswagen) and light trucks (non-electric) vehicles manufactured in 1996 or later that are OBD II -compliant with standard 16-pin OBD II protocols (J1850 VPM, J1850PWM, ISO9141, KWP 2000 and CAN). Please send your vehicle information to our 💌amazon@anceltech.com💌 to check compatibility.
- For Volkswagen (VAG) vehicles diagnostics, the device can not only read and clear codes on engine, ABS, transmission, SAS (not all cars), ESP, TPMS and other systems, but also reset the oil, brake pad and throttle position adaption.
- For other OBD II vehicles (non-Volkswagen), the VD500 can read and clear fault codes, display fault code definitions, turn off the CEL (check engine light) and retrieve VIN information ONLY.
- The VD500 diagnostic offering for Volkswagen vehicles covers the following vehicles: fits for VW (CC, EOS, Golf, GTI, Jetta, Passat, Phaeton, Polo, Rabbit, Sharan, Tiguan, Touran, Touareg); fits for Audi (A3, A4, A6, A7, A8, A5, Q3, Q5, Q7, R8, RS3, TT, RS, RS5, S4, S6); fits for Skoda (Octavia, Rapid, Yeti, Kodiaq, Fabio, Superb); fits for SEAT (Leon, Ateca, Ibiza, Altea, Cushion, Cord, Alhambra) Diagnostics.
- With English and German as display languages, this diagnostic scan tool provides life-time free software updates to fix the latest bugs or add new parameters. Simply download the software from the official website, then follow on-screen instructions to install it.
- ABS/SRS OBD2 Scanner > Enjoy this ABS SRS OBD2 code reader to reveal exact issues underlying in your brake, airbag, and engine systems, test individual ABS/SRS sensors, valves, or solenoids to quickly locate malfunctions (compatible with GM, Nissan, Fiat, Benz, Volvo, Land Rover, BMW, USA Ford, please reach us for details.), making sure critical safety systems work in perfect harmony together against accidents to be safe than sorry. NOTE: Only support upgrade on windows.
- 3 Most Needed Service Functions > This TOPDON OBD2 scanner guides you through step by step procedures to reset oil service light and programmed mileage intervals for engine efficiency (Oil Reset); to calibrate steering wheel position for vehicle’s traveling in a straight line (SAS Reset); to clear the original low battery fault information against coming battery failures or damage (BMS Reset); saving your needless visits to mechanics. NOTE: Not suitable for all models, please reach us for compatibility.
- Full OBD2 Diagnostics > Say goodbye to the hassle of manual check-ups via this srs bi-directional code reader. Quickly correct Check Engine Light warning on most OBD2/CAN compatible vehicles. Easily access to your smog status with one simple click I/M Readiness; and being filled with features for live data readings, freeze frame data, plus EVAP system, onboard monitor test means this scan tool checks all daily car care boxes.
- Work Easier > Red-Yellow-Green LEDs in this OBD2 diagnostic scanner TOPDON Arilink600 quickly show the overall DTC status without toggling through menu selections. HELP hotkey takes you directly to detailed descriptions/tips. Read/Erase DTC, I/M readiness shortcuts are added for optimized operation, along with DTC Lookup library for interpreting codes, designing the SRS OBD2 reader diagnostic tool a pleasure to use right out of the package even for beginners.
- Helpful Service > Get instant, free lifetime access to the most recent updates to add new car models and troubleshooting bugs making the OBD2 scanner TOPDON AL600 a long-term investment for any home mechanics. The extended 1 years of quality assurance sweetens the worry-free deal even further. Multilingual Menu: EN, FR, ES, DE, IT, RU, PT, and JP. NOTE: Only support upgrade on windows.
- 【Great Ideal For Every Car Owner】Prefect choice for your father, husband, brother or boyfriend. EVERY CAR OWNER WILL NEED IT! Also, the lifetime f-ree update is provided for more vehicle coverage, bug fixes. SAVE AT LEAST $1000+ PER YEAR!Get LAUNCH CRP123 Elite car diagnostic scanner and give your lover a surprise!Get the Extra Gifts :Protective Case Storage Bag,please reach us at: cardiag-aftersales @ hotmail.com.
- 【 Read & Clear/Reset Engine/ABS/SRS/Transmission Diagnostic Scan Tool 】LAUNCH CRP123 OBD2 Scanner can test Engine, Transmission, ABS and Airbag four systems, also reads and resets code, displays data stream graphic, stores and playbacks dynamic data stream,helps to quick analysis and diagnosis.
- 【 Error Fault Code Reader】Except the full 10 modes OBD2 diagnostic functions like, retrieving I/M readiness, Freeze Frame Data, Read Dynamic Data stream and V-ehicle Information, O2 Sensor Test, EVAP Test of F-uel Tank System (Mode 8) and Advanced On-board Monitoring (Mode 6), launch crp123 obd2 scanner can not only reveal what error codes your car is producing, but also erase your v-ehicle’s check engine light after problem fixed, the DTC help and explanation also tell you the exact problem.
- 【 Live Data Graphing + Read/Record/Playback Data stream + Print diagnostic data 】Live Data Graphing,more intuitive to know your vehicle’s problem.Large size Color Screen ;Print Function:Print the diagnose result easily; with user manual and register & update tutorial video uploaded in the link by us,you can Look up it anytime by ONE-CLICK.
- 【 Find Your Vehicles Here】Launch CRP123 obd2 scanner Supports mainstream vehicles on the world,fit for ACURA VW AUDI AUST FORD BENZ BMW CHRYSLER FIAT GM HOLDEN HONDA HYUNDAI INFINITI JAGUAR ISUZU KIA LANDROVER LEXUS MAZDA MITSUBISHI NISSAN OPEL PORSCHE SAAB SEAT SKODA SMART MERCEDES SPRINTER SUBARU SUZUKI SCION TOYOTA USA FORD VOLVO PEUGEOT CITROEN RENAULT EUROFORD.Etc.
Last update on 2024-06-07 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
