NHTSA ID Number: 10201126
Manufacturer Communication Number: PI1258A
Summary
Brake squeal or squeak noise intermittently on Initial brake applies Equipped with Heavy duty brake system (RPO J55)
Condition/Concern
Some customers may comment on a squeal or squeak noise from the front brakes. This condition normally only occurs on initial brake applications after the vehicle has sat for an extended time. The condition occurs typically under light braking, in speeds under 16 km/h (10 mph). After 1-6 brake applies, or after braking at higher speeds, the noise no longer occurs. This condition may occur more often in high humidity conditions.
Recommendation/Instructions

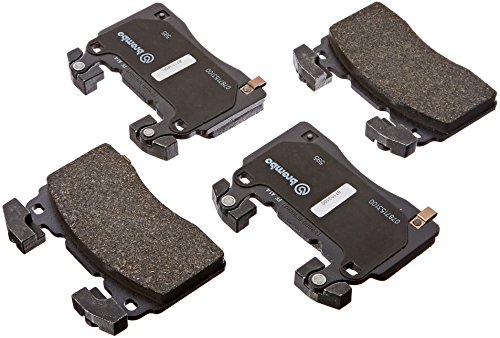

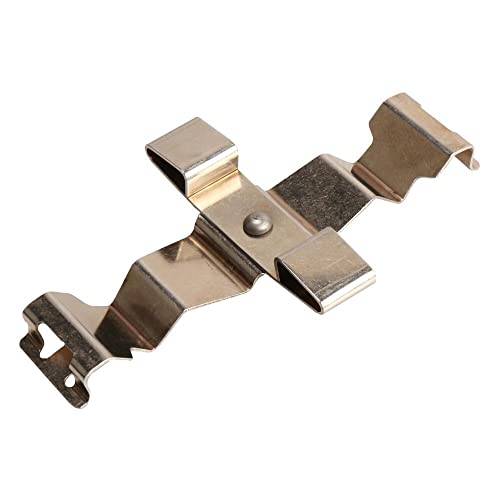

A new front disc brake pad has been released with a revised noise dampening weight. Replace the front disc brake pads, pad springs and caliper pins. Also, apply copper paste lubricant to each end of the disc brake pad abutments. Refer to the Front Disc Brake Pad Replacement procedure in SI.
Parts Information
| Part Number | Description | Qty |
23441307  | Pad Kit, Front Disc Brake | 1 |
| 22813180 | Pin Kit, Front Disc Brake Pad | 2 |
| 19303310 | Lubricant – US | 1 |
| 19303311 | Lubricant – Canada |
SEOCONTENT-START
Bulletin No.: PI1258A Date: Dec-2015 Subject: Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies Models: 2014 Chevrolet Corvette Equipped with Heavy Duty Brake System (RPO J55) Attention: This PI also applies to any of the above models that may be Export vehicles. This PI has been revised to remove anti-seize under Recommendation/Instructions. Please discard PI1258. Condition/Concern Some customers may comment on a squeal or squeak noise from the front brakes. This condition normally only occurs on initial brake applications after the vehicle has sat for an extended time. The condition occurs typically under light braking, in speeds under 16 km/h (10 mph). After 1-6 brake applies, or after braking at higher speeds, the noise no longer occurs. This condition may occur more often in high humidity conditions. Recommendation/Instructions A new front disc brake pad has been released with a revised noise dampening weight. Replace the front disc brake pads, pad springs and caliper pins. Also, apply copper paste lubricant to each end of the disc brake pad abutments. Refer to the Front Disc Brake Pad Replacement procedure in SI. Parts Information Part Number Description Qty 23441307 Pad Kit, Front Disc Brake 1 22813180 Pin Kit, Front Disc Brake Pad 2 19303310 (In Canada, use 19303311) Lubricant 1 Warranty Information For vehicles repaired under warranty, use: Labor Operation Description Labor Time 2420150 Front Disc Brake Pads Replacement Use Published Labor Operation Time
SEOCONTENT-END
1 Affected Product
Vehicle
| MAKE | MODEL | YEAR |
| CHEVROLET | CORVETTE | 2014 |
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1258A
Date: Dec-2015
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10072142
Manufacturer Communication Number: PI1258
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1258
Date: June, 2014
Loading...
