NHTSA ID Number: 10126347
Manufacturer Communication Number: 15-05-25-001
Summary
This technical bulletin provides repair information to correct a customer concern of a Service Stabilitrak message displayed on the Driver Information Center (DIC). During diagnosis, a technician may find DTC C0196-5A set in the Electronic Brake Control Module (EBCM).
26 Affected Products
Vehicles
CADILLAC | ESCALADE | 2015-2016 |
| CADILLAC | ESCALADE ESV | 2015-2016 |
| CHEVROLET | SILVERADO 1500 | 2014-2016 |
| CHEVROLET | SILVERADO 2500 | 2015-2016 |
| CHEVROLET | SILVERADO 3500 | 2015-2016 |
| CHEVROLET | SUBURBAN | 2015-2016 |
| CHEVROLET | TAHOE | 2015-2016 |
| GMC | SIERRA 1500 | 2014-2016 |
| GMC | SIERRA 2500 | 2015-2016 |
| GMC | SIERRA 3500 | 2015-2016 |
| GMC | YUKON | 2015-2016 |
| GMC | YUKON XL | 2015-2016 |
Parts

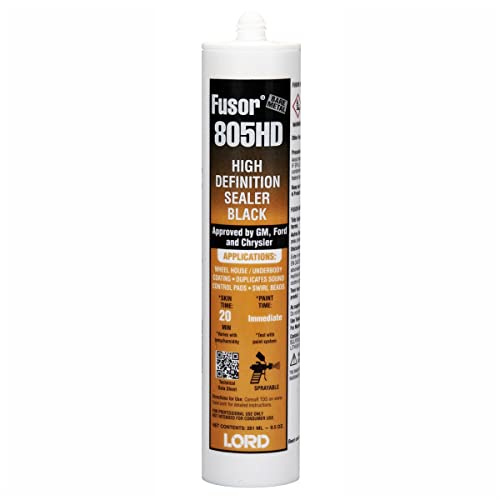

| High Definition Sealer / Sound Deadener Material [10.5 oz (310.5 mL)] | 2 | 805HD
![Lord Fusor FUS-805HD High Definition [hd] Seam Sealers, Black](https://m.media-amazon.com/images/I/31JtA-jn2eL.jpg "Service Stabilitrak Message Displayed, DTC C0196-5A Set in the Electronic Brake Control Module (EBCM) - 2014-2019 Cadillac Chevrolet GMC 11")
Lord Fusor FUS-805HD High Definition [hd] Seam Sealers, Black
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API |

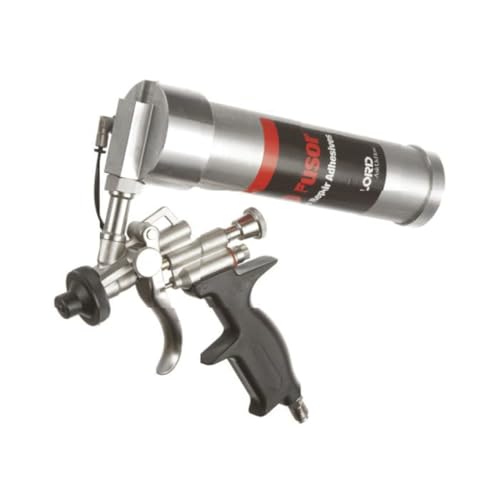

| Sprayable Seam Sealer Tool | Multiple Applications | Fusor 312 Gun
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API |
SEOCONTENT-START
#15-05-25-001A: Service Stabilitrak Message Displayed, DTC C0196-5A Set in the Electronic Brake Control Module (EBCM) – (Jul 13, 2018)
| Subject: | Service Stabilitrak Message Displayed, DTC C0196-5A Set in Electronic Brake Control Module (EBCM) |
| Models: | 2015-2019 Cadillac Escalade Models |
| 2014 Chevrolet Silverado 1500 |
|
| 2015-2018 Chevrolet Silverado, Suburban, Tahoe |
|
| 2019 Chevrolet Silverado LD |
|
| 2014 GMC Sierra 1500 | |
| 2015-2018 GMC Sierra, Yukon Models | |
| 2019 GMC Sierra Limited | |
| Attention: | This Bulletin also applies to any of the above models that may be Export vehicles. |
This bulletin has been updated to add 2017-2019 Model Years and increase material application. Please discard 15-05-25-001.
Condition
Some customers may comment on a Service Stabilitrak message displayed on the Driver Information Center (DIC).
During diagnosis, a technician may find DTC C0196-5A set in the EBCM.
Cause
C0196-5A is related to YAW sensor plausibility. Engineering has determined that stone impacts to the underside of the transmission tunnel, right below the SDM, may cause the YAW/Lat sensor located in the SDM to send signal spikes related to the resonant frequencies of the sheet metal; 12-14 kHz range. If the YAW/Lat signals don’t line up with vehicle speed and steering angle sensor data, the EBCM will set C0196-5A, plausibility fault. Sometimes the SDM will set C0196-00, invalid yaw rate data fault, if the stone impingement crosses the internal sensor fault threshold while will in turn cause the EBCM to set a C0452-71.
Correction
If you encounter a vehicle with the above concern, follow diagnostic procedures in SI relative to the DTCs that are present.
After completing necessary repairs to address the DTCs, perform the following procedure. Applying vibration deadening material to the underside of the transmission tunnel is intended to dampen the frequency of stone impacts to prevent a repeat occurrence.
- Raise and support vehicle. Refer to Lifting and Jacking the Vehicle in SI.
- Locate area shown above transmission and transfer case, if equipped.
- Ensure the area is free of any debris by cleaning the area with wax and grease remover or equivalent. Ensure area is dry.
- Mark the transmission tunnel as noted.
- Wrap and tape off transmission, transfer case, propeller shaft, cables, wiring, exhaust, etc. to protect from overspray as illustrated above.
Note: It is also recommended to protect/tape off the surrounding areas to improve the finished appearance.
- Apply a minimum of 3 heavy coats of the vibration deadening/damping material specified to the marked area following manufacturer’s guidelines.
- Inspect the area to ensure coverage of the area is complete and even.
- Remove all material used to protect from overspray.
Parts Information
| Part Number | Description | Quantity | Material Allowance |
| 805HD
Lord Fusor FUS-805HD High Definition [hd] Seam Sealers, Black
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API |
High Definition Sealer / Sound Deadener Material [10.5 oz (310.5 mL)] (Obtain from Lord Fusor*) | 2 | $25.00 USD ($30.00 CAD) for 2 Tubes |
| Fusor 312 Gun
Last update on 2026-06-09 / Affiliate links / Images from Amazon Product Advertising API |
Sprayable Seam Sealer Tool | Multiple Applications | $204.00 USD ($237.00 CAD) |
| *Contact Lord Fusor at 1-877-ASK-LORD or www.lord.com. Do not order from GMCCA. | |||
Warranty Information
For vehicles repaired under warranty, use:
| Labor Operation | Description | Labor Time |
| 1480578* | Apply Vibration Deadening Material to Transmission Tunnel | 1.0 hr |
| *This is a unique Labor Operation for Bulletin use only. It will not be published in the Labor Time Guide. | ||
SEOCONTENT-END
Bulletin No.: 15-05-25-001
Date: Oct-2015
