NHTSA ID Number: 10126207
Manufacturer Communication Number: 140601002A
Summary
This technical bulletin provides a procedure to replace the crankshaft bearings and rear oil seal to correct the customers concern of an oil leak.
Condition
Engine oil leak under their vehicle.
Engine oil leak between the engine and transmission mounting surfaces.
Cause
This may be caused by the crankshaft #3 thrust bearing wing separating from the thrust bearing, resulting in excessive crankshaft end play and damaging the crankshaft rear oil seal and housing.
Parts
Description | Quantity | Part Number |

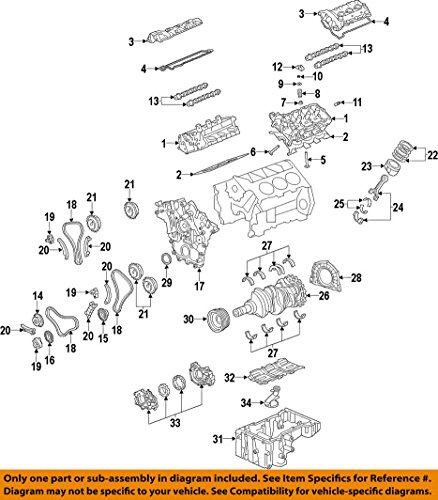

Bearing Kit – Crankshaft Thrust | 1 | 12643668 |

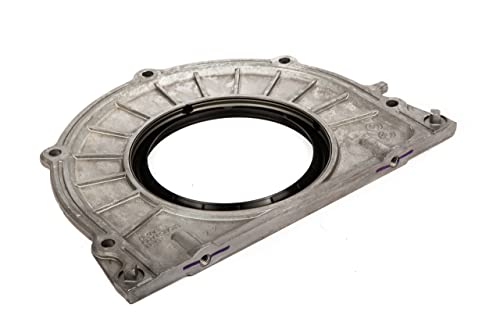

Seal, Crankshaft Rear Oil | 1 | 12637710 |
Seal, Oil Pump Suction Pipe | 1 | 12566837 |
Bolt – Crankshaft Bearing Cap | 2 | 11609410 |
Bolt – Crankshaft Bearing Cap | 2 | 12560272 |
Bolt – Crankshaft Bearing Cap | 2 | 11518861 |
24 Affected Products
Vehicles
MAKE | MODEL | YEAR |
BUICK | ENCLAVE | 2012-2013 |
BUICK | LACROSSE | 2012-2013 |
CADILLAC | ATS | 2013 |
CADILLAC | CTS | 2012-2013 |
CADILLAC | SRX | 2012-2013 |
CADILLAC | XTS | 2013 |
CHEVROLET | CAMARO | 2012-2013 |
CHEVROLET | CAPTIVA | 2012-2013 |
CHEVROLET | EQUINOX | 2012-2013 |
CHEVROLET | IMPALA | 2012-2013 |
CHEVROLET | TRAVERSE | 2012-2013 |
GMC | ACADIA | 2012-2013 |
GMC | TERRAIN | 2012-2013 |
1 Associated Document
Manufacturer Communications
Bulletin No.: 14-06-01-002A
Date: December, 2014
https://www.nhtsa.gov/recalls?nhtsaId=10126207
MC-10126207-9999.pdf 6517.385KB
NHTSA ID Number: 10066080
Manufacturer Communication Number: 14-06-01-002A
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
Bulletin No.: 14-06-01-002A
Date: December, 2014
https://www.nhtsa.gov/recalls?nhtsaId=10066080
SB-10066080-9133.pdf 6517.385KB
NHTSA ID Number: 10138672
Manufacturer Communication Number: 14-06-01-002
Summary
This technical bulletin provides a procedure to replace the crankshaft bearings and rear oil seal to correct the customers concern of an oil leak.
1 Associated Document
Manufacturer Communications
Bulletin No.: 14-06-01-002
Date: August, 2014
https://www.nhtsa.gov/recalls?nhtsaId=10138672
MC-10138672-9999.pdf 6517.497KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- Mobil 1 advanced full-synthetic motor oil 5W-20 utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness.
- Helps protect critical engine parts for up to 10,000 miles between oil changes,* controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
- Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean and helping to improve your fuel economy
- Helps extend engine life by working to prevent damaging deposits and sludge buildup
- Provides excellent internal engine heat protection (up to 500 degrees F) and low temperature protection (to -30 degrees F)
- Full synthetic 5W-20 motor oil provides strong engine performance and protection against deposits between oil changes
- Provides improved fuel economy (based on the latest industry standard)
- Designed to provide more performance with superior lubrication flow and pumpability at high and low temperatures (compared to Quaker State conventional and synthetic blend motor oils).
- Formulated with high resistance to oxidation, keeping the oil fresher for longer.
- Reduces friction to maximize horsepower (compared to Quaker State conventional and synthetic blend motor oils)
- 3X stronger against viscosity breakdown than leading full synthetic, based on Kurt Orbahn test in 5W-30 grade
- 10X better high temperature performance, as measured in Sequence IIIH engine test vs. API SP test limit
- 6X better wear protection
- 1.4X better sludge protection, as measured in Sequence VH engine test vs. API SP test limit
- Meets ILSAC GF-6 to prevent low speed pre ignition (LSPI) and timing chain wear protection
- MAXLIFE TECHNOLOGY PREVENTS engine breakdown with 40% better wear protection than the industry standard
- Leading Manufacturer Of High-Quality Products
- International Renown For Our Diverse Range Of Award-Winning Products
- Fully Equipped With State-Of-The-Art Technology
- All Products Have Been Designed With The Professional In Mind
- Constantly Modernizing Our Powerful Devices To Meet The Demands Of The Modern User
- Full synthetic 5W-20 engine oil designed for vehicles with over 70,000 miles that is made with natural gas
- Helps extend engine life and protects for up to 15 years or 500,000 miles, whichever comes first. Guaranteed* (see Warranty Information in Product Description).
- Keeps pistons up to 45% cleaner than the toughest industry standard (based on Sequence IIIH results)
- Provides unsurpassed wear protection for your engine (based on Sequence IVA wear test using SAE 5W-30)
- Formulated to deliver less oil burn off than high mileage motor oils made from crude oil
- Superior wear protection on critical engine parts
- 6X better wear protection than industry standards, as measured in the latest Sequence IVA test
- Superior sludge cleaning and protection against new formation
- 1.3X better sludge protection than industry standards, as measured in Sequence VH sludge test vs. API SP limits
- Full synthetic formula provides thermal and oxidation stability
- Mobil Full Synthetic 5W-20 motor oil is formulated for vehicles upgrading from conventional oil or synthetic blend, or requiring full synthetic motor oil
- Provides guaranteed protection that's 1.5X longer than our conventional and synthetic blend oils, up to 7,500 miles between oil changes*
- Helps to prevent sludge and deposit formation, to help reduce engine wear, and has balanced additive system formulation
- Provides excellent resistance to oil breakdown, for proven long-lasting protection, and maintains oil viscosity at high operating temperatures
- Recommended for all types of gasoline-powered vehicles, including those with turbocharged engines, and meets API SP resource-conserving
- Full synthetic 5W-20 engine oil with PurePlus Technology that is race-trusted for unbeatable engine protection*
- Pennzoil Ultra Platinum helps extend engine life and protects for up to 20 years or 750,000 miles, whichever comes first** (see warranty information in Product Description)
- No other leading motor oil provides better wear protection from friction (based on Sequence IVA wear test using SAE 5W-30)
- Helps protect engines from loss of power and provides better fuel economy (based on the latest industry standard)
- Keeps pistons dramatically cleaner than required by the toughest industry standards (based on ILSAC GF-6 and Sequence IIIH piston deposit test using SAE 5W-30)
- Synthetic blend High Mileage 5W-20 engine oil specially formulated to help stop leaks and reduced oil consumption in worn engines
- Recommended for vehicles with over 75,000 miles
- Helps prevent sludge and other damaging deposits
- Provides proven wear protection for engine parts
- Exceeds the requirements of the following industry specifications: API SP-RC and all previous categories; ILSAC GF-6A
Last update on 2024-04-20 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
Service Bulletin File in Section: 06 – Engine Bulletin No.: 14-06-01-002A Date: December, 2014 TECHNICAL Subject: Crankshaft Rear Oil Seal — Oil Leak Models: 2012-2013 Buick Enclave, LaCrosse 2012-2013 Cadillac CTS, SRX 2013 Cadillac ATS, XTS 2012-2013 Chevrolet Camaro, Captiva, Equinox, Impala, Traverse 2012-2013 GMC Acadia, Terrain Equipped with 6 CYL, 3.0L — RPO LFW Equipped with 6 CYL, 3.6L — RPO LFX or LLT This Bulletin has been revised to add certain Model Year 2012 vehicles, change the Special Tool in Step 6 to GE-6125-1B, change the Special Tool in Step 18 to EN-45059-A and to remove the Build Breakpoint date. Please discard Corporate Bulletin Number 14-06-01-002. Condition Some customers may comment on an engine oil leak under their vehicle. Upon inspection, the Service Technician may observe an engine oil leak between the engine and transmission mounting surfaces. Cause This may be caused by the crankshaft #3 thrust bearing wing separating from the thrust bearing, resulting in excessive crankshaft end play and damaging the crankshaft rear oil seal and housing. Correction The Service Technician can check for excessive crankshaft end play by removing the accessory drive belt and checking for excessive crankshaft movement. Use a pry tool on the crankshaft pulley/dampener, being careful not to damage the crankshaft front cover seal. ⇒ If excessive crankshaft end play is observed, the engine oil pan will have to be removed for further diagnosis of the crankshaft #3 thrust bearing. Go to Step 1. 3959004 3959023 Another check that can be performed if the transmission has been removed for crankshaft rear oil seal and housing replacement, is to inspect the crankshaft rear oil seal and housing for friction rub marks. ⇒ If the crankshaft rear oil seal and housing display friction rub marks, the engine oil pan will have to be removed for further diagnosis of the crankshaft #3 thrust bearing. Go to Step 1. Notice: The Crankshaft Rear Oil Seal Housing Replacement, Engine Oil Pan Replacement, Engine Front Cover Replacement and Transmission Replacement procedures vary from vehicle to vehicle. It is critical that the Service Technician refers to the appropriate document and its related documents for that specific vehicle in SI. 1. Perform the actions for the vehicle in order to remove the crankshaft rear oil seal and housing. Refer to Crankshaft Rear Oil Seal and Housing Replacement in SI. 2. Perform the actions for the vehicle in order to remove the oil pan. Refer to Oil Pan Replacement in SI. 3. Remove the bolts and the oil pan scraper from the oil pan and the oil pump suction pipe. Refer to Oil Pan Disassemble in SI. 4. Remove any gasket material or sealant from all oil pan and engine block gasket surfaces as needed, using the EN 28410 Gasket Remover. Clean the oil pan, oil pan scraper and oil pump suction pipe. Refer to Oil Pan Cleaning and Inspection in SI. 3959063 3958981 5. Typical view of a good crankshaft #3 thrust bearing with both thrust wings in place and a view of the crankshaft #3 thrust bearing (1) with one wing (2) broken off. The thrust bearing wing (2) is usually found in the engine oil pan, sometimes under the oil pan scraper. Ensure the failed thrust bearing wing is removed from the engine oil pan. 3959484 6. The crankshaft does not have to be removed to replace the #3 thrust bearing. Remove the inboard, outboard and short/inner side bolts of the main bearing cap. Remove the crankshaft #3 main bearing cap (3) using the GE-6125-1B (1) and the EN 49102 Crankshaft Bearing Cap Remover (2). 7. Discard the lower thrust bearing half. 3959565 Notice: The crankshaft is removed in this graphic in order to provide a clear view for this Step. 8. Use a 0.40 in feeler gauge or an equivalent tool to push down on the thrust bearing on the opposite side (2) of the bearing notch tab (1) that is seated in the engine block bulk head notch relief. This action will push the thrust bearing out far enough to grab and remove it. If the bearing does not rotate far enough to grab it, turn the crankshaft until the bearing moves completely out of the block. 9. Discard the upper thrust bearing half. 10. Clean all oil from the backside of the new thrust bearing halves. Apply crankshaft prelube or clean engine oil to the upper and lower bearing surfaces. Refer to Adhesives, Fluids, Lubricants and Sealers for recommended lubricant in SI. Notice: Ensure that the upper bearing insert contains the oil transfer hole and groove. 11. Install the upper half of the thrust bearing by rotating it back into position, turning the crankshaft if necessary. The bearing notch tab MUST engage in the engine block bulk head notch relief. The bearing must fit flush with the upper crankcase. 12. Install the lower half of the bearing into position in the main bearing cap. The bearing must fit flush with the bearing cap. 3959758 13. Install the main bearing cap with the arrow pointing towards the front of the engine. Caution: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. 14. Loosely install the 2 NEW inner main cap bolts. 15. Loosely install the 2 NEW outer main cap bolts. 16. Tap the main bearing cap with a soft-faced hammer. 17. Loosely install the 2 NEW short/inner side main cap bolts 18. Tighten the main bearing cap bolts using the EN 45059-A Angle Meter in the following sequence: 3960115 19. Tighten the inboard main cap bolts (3 and 4) first, in two passes. 19.1. Tighten the inboard bolts to 20Y(15 lb ft) on the first pass. 19.2. Tighten the inboard bolts an additional 80 degrees on the second pass. 3960120 20. Tighten the outboard main cap bolts (11 and 12) second, in two passes. 20.1. Tighten the outboard bolts to 15Y(11 lb ft) on the first pass. 20.2. Tighten the outboard bolts an additional 110 degrees on the second pass. 3960126 21. Tighten the short/inner bolts (19 and 20) third, in two passes. 21.1. Tighten the short/inner bolts to 30Y(22 lb ft) on the first pass. 21.2. Tighten the short/inner bolts an additional 60 degrees on the second pass. 22. Ensure that the crankshaft turns without binding or noise. 3960799 23. Install the 6 mm (0.236 in) guides from the EN-46109 Guide Pin Set into the 2 crankshaft rear oil seal housing corner bolt holes of the engine block. 3960822 24. Install the EN-47839 Crankshaft Rear Oil Seal Installation Tool and the EN-42183 Handle (1, 2) onto the rear of the crankshaft flange. 3960851 25. Apply a 3 mm (0.118 in) bead of RTV sealant (1) to the NEW crankshaft rear oil seal housing. Notice: DO NOT allow any engine oil on the area where the crankshaft rear oil seal housing is to be installed. 26. Install the crankshaft rear oil seal housing to the engine block. 27. Remove the EN-46109 Guides from the engine block. 28. Install the crankshaft rear oil seal housing bolts. 3960880 29. Tighten the crankshaft rear oil seal housing bolts in the sequence shown to 10Y(89 lb in). 30. Remove the EN-47839 and EN-42183 from the crankshaft flange. 3960143 Notice: DO NOT reuse the old oil pump suction pipe seal. 31. Install a NEW oil pump suction pipe seal (1) on the oil pump suction pipe. 32. Install the oil pump suction pipe and tighten the bolts to 10Y(89 lb in). 33. Install the oil pan scraper and tighten the bolts to 10Y(89 lb in). 3960168 34. Apply the proper size bead (1) of RTV sealant on the block pan rail, the crankshaft rear oil seal housing and the engine front cover as specified for that vehicle. Refer to Oil Pan Replacement in SI. 35. Install the oil pan and tighten the oil pan bolts in the specified sequence to the proper torque. Refer to Oil Pan Replacement in SI. 36. Assemble and install any remaining parts and fluids as needed to complete the repair. Parts Information Part Number Description Quantity 12643668 Bearing Kit – Crankshaft Thrust 1 12637710 Seal, Crankshaft Rear Oil 1 12566837 Seal, Oil Pump Suction Pipe 1 11609410 Bolt – Crankshaft Bearing Cap 2 12560272 Bolt – Crankshaft Bearing Cap 2 11518861 Bolt – Crankshaft Bearing Cap 2 Warranty Information For vehicles repaired under the Bumper-to-Bumper Coverage, in Canada the Base Warranty Coverage, use the following Labor Operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information. Model Labor Operation — Description Labor Time ATS (AWD – RWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 17.4 hrs** (Equipped with R- 134a A/C System) OR 17.6 hrs** (Equipped with R- 1234yf A/C System) Acadia, Enclave, Traverse (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.9 hrs** Acadia, Enclave, Traverse (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.8 hrs** Camaro (Automatic Transmission) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.0 hrs** Camaro (Manual Transmission) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.6 hrs** Captiva (VIN L) (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.3 hrs** Captiva (VIN L) (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 12.6 hrs** CTS (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 17.2 hrs** CTS (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 15.3 hrs** Equinox, Terrain (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 13.3 hrs** Equinox, Terrain (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 12.6 hrs** LaCrosse (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 17.7 hrs** LaCrosse (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 17.3 hrs** Impala (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 12.8 hrs** SRX (AWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 17.1 hrs** SRX (FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 15.8 hrs** XTS (AWD & FWD) 4080658* — Crankshaft Rear Oil Seal Housing Replacement 15.0 hrs** *This is a unique labor operation for bulletin use only. It will not be published in the Labor Time Guide. **This time includes as applicable to the vehicle: Base, Bleed Power Steering System, Clean Opposite Sealing Surface When Reinstalling Original Part, Remove Broken Thrust Bearing Wing, Clean Oil Pan, Install New Oil Pump Suction Pipe Seal, Install New Crankshaft Bearing, Fill Cooling System, Recover and Recharge A/C System. For those vehicles requiring Wheel Alignment Measurement after performing the Crankshaft Rear Oil Seal Housing Replacement, refer to Labor Code 8070032 in GLC in SI.
