GLOBAL SAFETY FIELD INVESTIGATIONS
DCS5614
URGENT – DISTRIBUTE IMMEDIATELY
Date: December 15, 2020
Subject: N202310850 02 – Customer Satisfaction Program
Airbag Indicator Light Intermittent
Revised Service Procedure and Part Ordering Information
Models: 2021 Cadillac Escalade, Escalade ESV
2021 Chevrolet Suburban, Tahoe
2021 GMC Yukon, Yukon XL
Equipped with Restraint System-Seat, Inflatable, Driver & Pass Frt, Frt
Seat Side, Frt Inboard Seat Side, Roof Side (RPO AYQ)
To: All General Motors Dealers
The service procedure and part ordering information has been updated in this
bulletin. Please discard all previous copies of N202310850.
Please be advised that a Pre-Repair Authorization (PRA) in the CSMT Mobile
App is not required if the seat is damaged as a result of the service procedure
in this bulletin.
END OF MESSAGE
GLOBAL SAFETY FIELD INVESTIGATIONS
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Release Date: December 2020 Revision: 02
Revision Description: The service procedure and part ordering information has been updated in this bulletin.
Please discard all previous copies of N202310850.
Attention: This program is in effect until December 31, 2022.
Note: A Pre-Repair Authorization (PRA) in the CSMT Mobile App is not required if the seat is damaged
as a result of the service procedure in this bulletin.
DTC B14DC may be present when diagnosing this condition, please check IVH to verify that the vehicle
is included in this customer satisfaction bulletin prior to completing the service procedure in this bulletin.
Make Model
Model Year
From To RPO Description
Cadillac Escalade
2021 2021 AYQ
Restraint System-Seat,
Inflatable, Driver & Pass Frt, Frt
Seat Side, Frt Inboard Seat Side,
Roof Side
Escalade ESV
Chevrolet Suburban
Tahoe
GMC Yukon
Yukon XL
Involved vehicles are marked “open” on the Investigate Vehicle History screen in GM Global Warranty Management
system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections
and/or repairs.
Condition
In certain 2021 model year Cadillac Escalade, Escalade ESV, Chevrolet Suburban, Tahoe, GMC Yukon
and Yukon XL vehicles, driver movement can disrupt the electrical connection to the seat-mounted
inboard airbag system. This airbag system is supplemental and not required equipment under applicable
Federal Motor Vehicle Safety Standards. If this occurs, the vehicle’s driver information center will display
a “Service Restraints System” message to the driver before resistance at the connection will prevent the
deployment of the airbag.
Correction Dealers are to replace the driver seat inboard airbag electrical connector.
Parts
Quantity Part Name Part No.
1 Service Harness 13530533

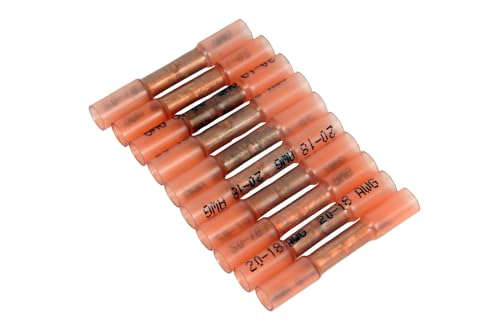

2 Salmon 20-18 Gauge Wire Splice Sleeve (Merchandising Pack of 10 pieces) 19300089
Important: When ordering one (1) SPLICE, WIRE, 19300089, you will receive a package of 10. It takes 2 of 19300089
and 1 of 13530533, (Connector Assem) to complete the procedure for this fix.
NOTE: Before placing an order please check your dealer inventory as there is showing to be a lot possibly in
the field. DO NOT order for shelf stock as this has currently put us in a backorder situation.
Reminder: Parts may be removed from Retail Inventory Management (RIM). Dealers should review the affected parts
to confirm RIM managed status. Parts may have quantity limiters in effect.
Warranty Information
Labor
Operation Description
Labor
Time
Trans.
Type
Net
Item
9105432 Replace Driver Seat Inboard Airbag Electrical Connector and Clear
DTC information
0.8
ZFAT N/A
Service Procedure
1. Place the driver seat in the full forward position with the seat back in the full upright position.
2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection in SI.
For Escalade vehicles:
• Remove the driver seat back finish panel. Refer to Front Seat Back Finish Panel Replacement in SI.
• Disconnect the rear inboard side of the seat cushion/cover from the seat structure by releasing the retaining clips.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 2 of 7
For Suburban, Tahoe, and Yukon vehicles:
IMPORTANT: Hold both sides of the zipper straight while unzipping the seat cover or zipper damage will occur.
• Unzip the inboard zipper on the seat back cover.
• Disengage the lower seat cover retainers from the seat frame.
5672137
3. Position the seat cushion/cover to expose the driver seat inboard airbag connector.
Note: For clarification, the following photos show the seat cover off and the seat out of the vehicle. This procedure is
performed with the seat cover on and the seat in the vehicle.
4. Disengage the two CPA’s on the inboard airbag electrical connector and remove the connector from the airbag.
5672139
Note: There may be butyl tape over the harness and connector from a previous repair. Remove the butyl tape as
necessary. Tape residue can be left on the repair area, it does not need to be completely removed.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 3 of 7
5672141
5672144
5. Measure 30 mm from the connector on the seat harness and cut the two wires at this point.
5672147
6. Unwrap the electrical tape to the first attachment location. .
Note: The service connector has exceptionally long leads, discard any unused wire material.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 4 of 7
5672148
5672149
7. On the service connector, measure 80 mm from the connector and cut the two wires at this point.
8. Splice the service connector to the seat wiring harness. Refer to Wire to Wire Repair in SI.
5672150
9. Using fabric anti abrasion electrical tape, rewrap the wiring harness.
10. Connect the seat side harness to the airbag. Ensure the CPA’s are fully engaged.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 5 of 7
5672151
11. Position the harness into the channel on the seat frame as shown.
5672152
12. Secure the harness to the seat frame using fabric anti abrasion electrical tape.
5672153
13. Inspect that the connector and CPA’s are fully seated, and the bundle is taped in place.
14. Reconnect the rear inboard side of the seat cushion/cover to the seat structure. Ensure the cover is properly fitted
and free of wrinkles.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 6 of 7
15. For Escalade vehicles, reinstall the driver seat back finish panel. Refer to Front Seat Back Finish Panel Replacement
in SI.
IMPORTANT: Hold both sides of the trim together while pulling straight down on the seat cover zipper or zipper damage
will occur.
16. For Suburban, Tahoe and Yukon vehicles, close the rear seat back cover zipper and refasten the lower attachments.
Ensure the cover is properly fitted and free of wrinkles.
17. Reconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection in SI.
18. Clear any DTC codes.
Dealer Responsibility
All new, used, GM Certified Used, courtesy transportation vehicles, dealer shuttle vehicles, etc. in dealers’ possession
and subject to this program must be held and inspected/repaired per the service procedure of this bulletin before
customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealertraded,
released to auction, used for demonstration, or any other purpose.
All GM Certified Used vehicles currently in the dealers’ inventory within the Certified Pre-Owned Inventory System
(CPOIS) will be de-certified and must be held and remedied per the service procedure in this bulletin. Upon submitting
an accepted/paid warranty transaction in the Global Warranty Management (GWM) system, the vehicle can be re-certified
for sale within the CPOIS system, or once again be used in the CTP program.
Dealers are to service all vehicles subject to this program at no charge to customers, regardless of mileage, age of vehicle,
or ownership, through December 31, 2022. Customers who have recently purchased vehicles sold from your vehicle
inventory, and for which there is no customer information indicated on the involved vehicle listing, are to be contacted by
the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this
bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Program followup
cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, through December 31, 2022, whenever a vehicle subject to this field action enters your vehicle inventory,
you must take the steps necessary to ensure the program correction has been made before selling the vehicle. In addition,
for vehicles entering your facility for service, you are required to ensure the customer is aware of the open field action
and make every reasonable effort to implement the program correction as set forth in this bulletin prior to releasing the
vehicle.
Dealer Reports
For dealers with involved vehicles, a listing has been prepared and will be available through GM GlobalConnect Maxis
Field Action Reports or sent directly to export dealers. The Inventory tab of the dealer reports will contain VINs that
apply to this field action. This information is intended to assist dealers with the PROMPT COMPLETION of these
vehicles. The Customer In-Service tab will contain customer names and addresses from Motor Vehicle Registration
Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete
this field action may be a violation of law in several states.
Courtesy Transportation – For USA & Canada
Courtesy transportation is available for customers whose vehicles are involved in a product program and still within the
warranty coverage period. See General Motors Service Policies and Procedures Manual for courtesy transportation
program details.
Customer Notification
USA & Canada – General Motors will notify customers of this program on their vehicle (see copy of customer letter included
with this bulletin).
Export – Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor
Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
Customer Satisfaction Program
N202310850 Airbag Indicator Light Intermittent
Page 7 of 7
December 2020
This notice applies to your vehicle, VIN: ________________________________
Dear General Motors Customer:
We have learned that in certain 2021 model year Cadillac Escalade, Escalade ESV, Chevrolet Suburban, Tahoe, GMC
Yukon or Yukon XL vehicles, driver movement can disrupt the electrical connection to the seat-mounted inboard airbag
system. This airbag system is supplemental and not required equipment under applicable Federal Motor Vehicle Safety
Standards. If this occurs, the vehicle’s driver information center will display a “Service Restraints System” message to
the driver before resistance at the connection will prevent the deployment of the airbag.
Your satisfaction with your GM vehicle is very important to us, so we are announcing a program to prevent this condition
or, if it has occurred, to fix it.
What We Will Do: Your GM dealer will replace the driver seat inboard airbag electrical connector. This service will be
performed for you at no charge until December 31, 2022. After that, any applicable warranty will apply.
What You Should Do: To limit any possible inconvenience, we recommend that you contact your dealer as soon as
possible to schedule an appointment for this repair. By scheduling an appointment, your dealer can ensure that the
necessary parts will be available on your scheduled appointment date.
If you have any questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer
Assistance Center at the number listed below.
Division Number Text Telephones (TTY)
Cadillac 1-866-982-2339 1-800-833-2622
Chevrolet 1-800-630-2438 1-800-833-2438
GMC 1-866-996-9463 1-800-462-8583
Puerto Rico – English 1-800-496-9992
Puerto Rico – Español 1-800-496-9993
Virgin Islands 1-800-496-9994
We truly appreciate you taking the time to remedy your vehicle as we know your time is valuable. We want you to know
that we will do our best, throughout your ownership experience, to ensure that your GM vehicle provides you many
miles of enjoyable driving.
Neelie O’Connor
Global Executive Director
Customer Experience Operations
N202310850
