NHTSA ID Number: 10162137
Manufacturer Communication Number: PIC6366
Summary
This Preliminary Information communication provides additional information to the technician about how to diagnosis a vehicle that will not shift out of park.
8 Affected Products
Vehicles
Parts
2011-2013 Chevrolet Volt | Drive Motor Battery Charger Receptacle | 1 | 23281030

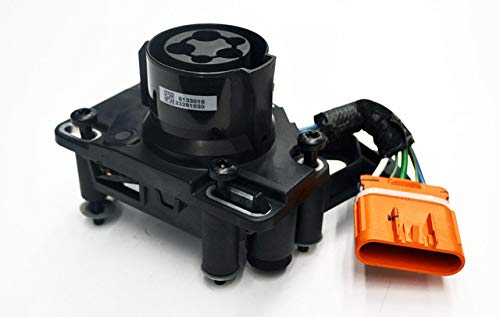

General Motors 23281030 - Receptacle
|
| 2014-2015 Chevrolet Volt | Drive Motor Battery Charger Receptacle | 1 | 23281029 |
| 2014-2016 Cadillac ELR | Drive Motor Battery Charger Receptacle | 1 | 23281029 |
SEOCONTENT-START
Bulletin No.: PIC6366
Published date: 06/17/2019
Preliminary Information
PIC6366 Diagnostic Aid: Vehicle Will Not Shift Out Of Park
Models Brand: Model: Model Years: VIN: Engine: Transmissions:
from to
Cadillac ELR 2014 – 2016 All All LUU MKA
Chevrolet Volt 2011 – 2015 All All LUU MKA
Involved Region or Country: North America
Condition: Vehicle will not shift out of park.
Cause:
This concern may be caused by water intrusion in the X98 Charge Receptacle causing the vehicle to think the charger is plugged in and not allowing the vehicle to be shifted out of park.
Correction:
Duplicate the concern. If you cannot nd the root cause using normal diagnosis in SI please perform the following:
1) Disable the high voltage system using SI Document id: 3610665
2) Unplug the X98 charge receptacle and see if the vehicle now comes out of park.
3) If that resolves your concern, please replace the charge receptacle using updated part below.
Parts Information
Model Year Part Number: Description: Quantity:
2011-2013 Chevrolet Volt 23281030 Drive Motor Battery Charger Receptacle 1
2014-2015 Chevrolet Volt 23281029 Drive Motor Battery Charger Receptacle 1
2014-2016 Cadillac ELR 23281029 Drive Motor Battery Charger Receptacle 1
Warranty Information
Labor Operation: Description: Labor Time:
5040050 Drive Motor Battery Charger Receptacle Replacement Use Published Labor Operation Time
Version History
Version 1
Modified 6/17/2019 – Created
SEOCONTENT-END
Bulletin No.: PIC6366
Published date: 06/17/2019
