NHTSA ID Number: 10185734
Manufacturer Communication Number: PIT5479D
Summary
This Preliminary Information communication provides information to the technician about fluid leaking from the brake caliper piston area found during a service of the vehicle. The substance is actually excess assembly grease from the caliper boot and piston installation. This grease can be cleaned off and the rest of the service completed.
58 Affected Products
Vehicles
MAKE | MODEL | YEAR |
CADILLAC | ESCALADE ESV | 2015-2021 |
CHEVROLET | COLORADO | 2015-2021 |
CHEVROLET | SILVERADO 1500 | 2014, 2017-2019, 2021 |
CHEVROLET | SILVERADO 2500 | 2015-2016, 2020 |
CHEVROLET | SUBURBAN | 2015-2021 |
CHEVROLET | TAHOE | 2015-2021 |
GMC | CANYON | 2015-2021 |
GMC | SIERRA 1500 | 2014, 2017-2019, 2021 |
GMC | SIERRA 2500 | 2015-2016, 2020 |
GMC | YUKON DENALI | 2015-2019 |
GMC | YUKON XL | 2020-2021 |
SEOCONTENT-START
Bulletin No.: PIT5479D
Published date: 12/14/2020
Preliminary Information
PIT5479D Diagnostic Tip – Perceived Brake Fluid Leak at Caliper Piston Boot
Models
Brand: | Model: | Model Years: | VIN: | Engine: | Transmissions: | |
from | to | |||||
Cadillac | Escalade Models | 2015 – 2021 | All | All | All | All |
Chevrolet | Colorado | 2015 – 2021 | All | All | All | All |
Chevrolet | Silverado 1500 | 2014 | All | All | All | All |
Chevrolet | Silverado | 2015 – 2021 | All | All | All | All |
Chevrolet | Tahoe | 2015 – 2021 | All | All | All | All |
Chevrolet | Suburban | 2015 – 2021 | All | All | All | All |
GMC | Canyon | 2015 – 2021 | All | All | All | All |
GMC | Sierra 1500 | 2014 | All | All | All | All |
GMC | Sierra | 2015 – 2021 | All | All | All | All |
GMC | Yukon Models | 2015 – 2021 | All | All | All | All |
Supersession Statement
This PI was superseded to update the Models. Please discard PIT5479C.
The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.
Condition / Concern
A technician may comment that, during service, it appears there is fluid leaking from the brake caliper piston area. Shown below are examples of newer low mileage vehicles and older higher mileage vehicles.
Recommendations / Instructions
The substance shown is actually excess assembly grease from the caliper boot and piston installation. This grease can be cleaned off and the rest of the service completed.
NOTE: When diagnosing a brake fluid leak or certain DTC’s for hydraulic brake circuit leaks, such as C05B0, do not confuse excessive assembly grease as a brake fluid leak. If it is uncertain what is seen is assembly grease, then clean off the excessive grease and apply the brake pedal 20 times and re-inspect for a leak.
Please follow this diagnostic or repair process thoroughly and complete each step. If the condition exhibited is resolved without completing every step, the remaining steps do not need to be performed.
SEOCONTENT-END
1 Associated Document
Manufacturer Communications
Bulletin No.: PIT5479D
Published date: 12/14/2020
https://www.nhtsa.gov/recalls?nhtsaId=10185734
MC-10185734-9999.pdf 1835.865KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- EASY OPERATION: For brake pad and shoe replacement and rotating pistons back into the caliper on your car, truck or 4-wheel drive disc brake vehicle. Includes both right-handed and left-handed thrust bolt assemblies.
- UNIVERSAL COMPATIBILITY: This multi-disc brake caliper wind back tool kit includes 18 adapters fitting hundreds of vehicle makes and models including American, European, and Japanese. See the Product Description section below for a more complete list.
- HEAVY-DUTY DURABILITY: Carbon steel construction with a rust-proof blasted finish, these components will stand up to heavy use and accidental drops. It’s perfect for everyone from DIY novices to professional mechanics.
- CONVENIENT CARRY CASE: Includes an ABS carrying case with pre-sized slots for every component - right and left-handed thrust bolts, 2 retaining plates, and 18 disc adapters.
- TECHNICAL SUPPORT: Each kit includes a detailed user manual with an illustrated parts diagram. We pursue outstanding quality and professional technical support. If you are not satisfied with this product or if you have any questions, please let us know.

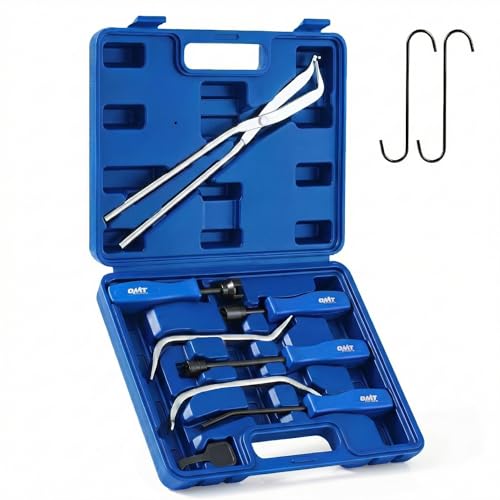

- COMPLETE SET: This 8-piece brake tool kit from Orion Motor Tech includes all the necessary accessories for adjustment, removal, and installation of your drum brakes: brake spring pliers, brake spring installers, removers, compressors, retainers, and standard, angled, and mini adjustment spoons
- PREMIUM MATERIAL: The metallic components of this drum brake tool set are made of structural-grade 45# steel to offer good ductility as well as outstanding strength, durability, and longevity; black oxide and chromate coatings ensure all parts are wear and corrosion resistant
- STURDY HANDLES: The 4 brake spring tools feature reinforced ergonomic handles to save you time and spare you effort and aggravation during use
- CUSTOM CASE: The rugged blow-molded case of this rear drum brake tool kit keeps everything well organized and easy to store or transport between jobs

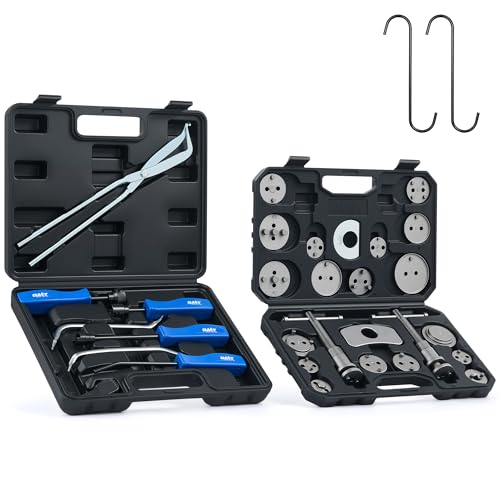

- DUAL BRAKE TOOL SET: This 32-piece brake kit from Orion Motor Tech has all the tools for adjustment, removal, service, and installation of dual brake vehicles; 8 drum brake tools including a remover, installer, compressor, retainer, pliers, and standard, angled, and mini adjustment spoons; the 24 disc brake tools including 2 retaining plates, left and right thrust bolt assemblies, and 18 adapters, 2 caliper hangers
