NHTSA ID Number: 10111747
Manufacturer Communication Number: 15-06-01-003A
Summary
This technical bulletin provides inspection and repair information to correct a customer concern of various supercharger noise conditions.
10 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| CADILLAC | CTS | 2009-2014 |
| CHEVROLET | CAMARO | 2012-2015 |
Parts
| GASKET-CHRG AIR CLR HSG | 12613457  |
| INSULATOR-CHRG AIR CLR LWR | 12612467 |
| GASKET KIT, INT MANIF | 19180613 |
| SEAL, THROT BODY | 12576549 |
| SUPERCHARGER KIT | 12670278 |
| COVER-SPCHG FRT (KIT) | 12670289 |
| COOLANT, ENGINE – US | 12346290 |
| COOLANT, ENGINE – CA | 10953464 |
SEOCONTENT-START
#15-06-01-003A: Supercharger Noise – (Dec 22, 2016)
| Subject: | Supercharger Noise |
| Models: | 2009-2014 Cadillac CTS-V |
| 2012-2015 Chevrolet Camaro | |
| Equipped with 6.2L Engine (RPO LSA) | |
| Attention: | This Bulletin also applies to any of the above models that may be Export vehicles. |
This Bulletin has been revised to add the 2015 Camaro and update the Correction and Warranty information. Please discard Corporate Bulletin Number 15-06-01-003.
Condition
Some customers may comment on one or more of the following conditions:
2009-2014 Model Years
- Customers may experience a rattling or knocking noise at mid-to-high mileage, especially prominent at idle.
- Customers may experience a screeching noise at mid-to-high mileage, usually when cold but not exclusively.
2014 and Newer Model Years
- Customers may experience a buzz noise (similar to a heat shield buzz) at a narrow RPM band somewhere between 700–1300 RPM. This noise may be referred to as launch buzz, accessory drive belt resonance.
All Model Years
- A light to moderate rattling noise at idle that sounds like marbles in the supercharger, but goes away when engine speed is increased to about 1200 RPM, is normal. This noise does not indicate that there is any problem with the supercharger or that any parts are damaged.
Cause
This may be caused by contamination of the lubricating grease within the supercharger that may cause the bearing to make noise. If this condition exists, and is left unaddressed, the bearing may overheat and cause damage to the supercharger.
Correction
For vehicles that encounter the above concern, follow the correct procedure listed below.
2014 and Newer Model Years
Replace the supercharger front cover. Refer to Supercharger Front Cover Replacement in SI.
2009-2013 Cadillac CTS-V and Chevrolet Camaro (That Have Had A Service Replacement Supercharger Installed After November 2013)
Replace the supercharger front cover. Refer to Supercharger Front Cover Replacement in SI.
Manual Transmission Vehicles The Experience a Flutter or Rattle at Low RPMs
Replace the supercharger front cover. Refer to Supercharger Front Cover Replacement in SI.
Vehicles Built Prior to 2014 (That Have NOT Had A Service Replacement Supercharger Installed After November 2013)
Remove and replace the supercharger. Refer to Supercharger Removal and Supercharger Installation in SI.
Parts Information
| Part Number | Description |
| 12613457 |
GASKET-CHRG AIR CLR HSG |
| 12612467 |
INSULATOR-CHRG AIR CLR LWR |
| 19180613 |
GASKET KIT, INT MANIF |
| 12576549 |
SEAL, THROT BODY |
| 12670278 | SUPERCHARGER KIT |
| 12670289 | COVER-SPCHG FRT (KIT) |
| 12346290 | COOLANT, ENGINE – US |
| 10953464 | COOLANT, ENGINE – CA |
Warranty Information
For vehicles repaired under warranty, use:
| Labor Operation | Description | Labor Time |
| 4081418 (Model Year 2009-2012) |
Supercharger Front Cover Replacement | 5.4 hrs |
| 4068400 (Model Year 2013 and newer) |
Supercharger Front Cover Replacement | Use Published Labor Operation Time |
| 4068410 | Supercharger and Gasket Replacement |
SEOCONTENT-END
Bulletin No.: 15-06-01-003A
Date: Dec-2016
https://www.nhtsa.gov/recalls?nhtsaId=10111747
https://static.nhtsa.gov/odi/tsbs/2016/MC-10111747-9999.pdf
To View or Download this Document Click Here
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |

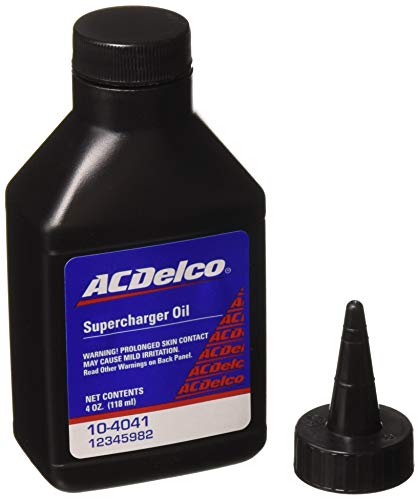

- High quality fluid keeps supercharger bearings operating properly
