NHTSA ID Number: 10058785
Manufacturer Communication Number: PB-15155
Summary
CHEVROLET/GMC/CADILLAC: TSB HAS AN OWNER’S NOTIFICATION LETTER. SELECT DOCUMENT SEARCH BUTTON BELOW. WATER IS LEAKING ON TO ROOF MOUNTED ANTENNA AND IS PREVENTING ONSTAR SYSTEM TO DETERMINE LOCATION OF VEHICLE BY DISABLING COMPASS, XM RADIO SYSTEM, NAVIGATION. MODEL 2015 ESCALADE, ESCALADE ESV, SILVERADO CREW CAB, SUBURBAN, TAHOE, SIERRA CREW CAB, YUKON, YUKON XL.
Parts
| ANTENNA, HIGH FREQUENCY | 1 | 23258456 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258457 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258441  |
| ANTENNA, HIGH FREQUENCY | 1 | 23258458 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258442 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258459 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258443 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258460 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258444 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258445 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258461 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258446 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258462 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258447 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258463 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258448 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258464 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258465 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258449 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258466 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258467 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258468 |
7 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| CADILLAC | ESCALADE | 2015 |
| CADILLAC | ESCALADE ESV | 2015 |
| CHEVROLET | SILVERADO | 2015 |
| CHEVROLET | SUBURBAN | 2015 |
| CHEVROLET | TAHOE | 2015 |
| GMC | SIERRA | 2015 |
| GMC | YUKON | 2015 |
SEOCONTENT-START
Bulletin No.: 15155
Date: August 2015
| Subject: | Loss of GPS, OnStar and XM Antenna Functions |
| Models: | 2015 Cadillac Escalade, Escalade ESV |
| 2015 Chevrolet Silverado Crew Cab, Suburban, Tahoe | |
| 2015 GMC Sierra Crew Cab, Yukon, Yukon XL |
THIS PROGRAM IS IN EFFECT UNTIL AUGUST 24, 2017.
Condition
Certain 2015 model year Cadillac Escalade, Cadillac Escalade ESV, Chevrolet Silverado Crew Cab, Chevrolet Suburban, Chevrolet Tahoe, GMC Sierra Crew Cab, GMC Yukon, and GMC Yukon XL vehicles may have a condition that can allow water to leak into the vehicle’s roof-mounted antenna. This condition could prevent the vehicle’s OnStar system from accurately determining the vehicle’s location; disable the vehicle’s compass, navigation, and XM radio systems; illuminate the vehicle’s red OnStar LED indicator; and allow water into the interior passenger compartment.
Correction
Dealers are to replace the OnStar antenna.
Vehicles Involved
All involved vehicles are identified by Vehicle Identification Number on the Investigate Vehicle History screen in GM Global Warranty Management system. Dealership service personnel should always check this site to confirm vehicle involvement prior to beginning any required inspections and/or repairs. It is important to routinely use this tool to verify eligibility because not all similar vehicles may be involved regardless of description or option content.
For dealers with involved vehicles, a listing with involved vehicles containing the complete vehicle identification number, customer name, and address information has been prepared and will be provided to US and Canadian dealers through the GM GlobalConnect Recall Reports. Dealers will not have a report available if they have no involved vehicles currently assigned.
The listing may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this program is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this program.
Parts Information
Parts required to complete this program are to be obtained from General Motors Customer Care and Aftersales (GMCCA). Please refer to your “involved vehicles listing” before ordering parts. This part will be on Order Writing control initially and all DRO’s (Daily Replenishment Orders) will cancel. Dealers can place orders CSO (Customer Special Order). In emergency situations, a dealer should place a SPAC case and the orders will be processed in the order received.
Note: Use the vehicle identification number (VIN) and the GM Electronic Parts Catalog (EPC) to determine which High Frequency Antenna to order.
| Description | Quantity/ Vehicle |
Part Number |
| ANTENNA, HIGH FREQUENCY | 1 | 23258456 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258457 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258441 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258458 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258442 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258459 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258443 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258460 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258444 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258445 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258461 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258446 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258462 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258447 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258463 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258448 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258464 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258465 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258449 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258466 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258467 |
| ANTENNA, HIGH FREQUENCY | 1 | 23258468 |
Service Procedure
- Remove the High Frequency Antenna. Refer to High Frequency Antenna Replacement in SI.
- Install the High Frequency Antenna. Refer to High Frequency Antenna Replacement in SI.
Courtesy Transportation
The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranties. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product program is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.
Warranty Transaction Information
Submit a transaction using the table below. All transactions should be submitted as a ZFAT transaction type, unless noted otherwise.
| Labor Code | Description | Labor Time | Net Item |
| 9101656 | Replace High Frequency Antenna | 1.2 | N/A |
Customer Notification
General Motors will notify customers of this program on their vehicle (see copy of customer letter included with this bulletin).
Dealer Program Responsibility
All unsold new vehicles in dealers’ possession and subject to this program must be held and inspected/repaired per the service procedure of this program bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this program at no charge to customers, regardless of mileage, age of vehicle, or ownership, through August 31 2017.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the involved vehicle listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Program follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this program enters your vehicle inventory, or is in your facility for service through August 31 2017, you must take the steps necessary to be sure the program correction has been made before selling or releasing the vehicle.
August 2015
Dear General Motors Customer:
This notice applies to your vehicle, VIN: _________________________
We have learned that your 2015 model year Cadillac Escalade, Cadillac Escalade ESV, Chevrolet Silverado Crew Cab, Chevrolet Suburban, Chevrolet Tahoe, GMC Sierra Crew Cab, GMC Yukon, or GMC Yukon XL vehicle may have a condition that can allow water to leak into the vehicle’s roof-mounted antenna. This condition could prevent the vehicle’s OnStar system from accurately determining the vehicle’s location; disable the vehicle’s compass, navigation, and XM radio systems; illuminate the vehicle’s red OnStar LED indicator; and allow water into the interior passenger compartment.
Your satisfaction with your vehicle is very important to us, so we are announcing a program to prevent this condition or, if it has occurred, to fix it.
What We Will Do: Your GM dealer will replace the OnStar antenna. This service will be performed for you at no charge until August 31, 2017. After that, any applicable warranty will apply.
What You Should Do: To limit any possible inconvenience, we recommend that you contact your dealer as soon as possible to schedule an appointment for this repair. By scheduling an appointment, your dealer can ensure that the necessary parts will be available on your scheduled appointment date.
If you have any questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer Assistance Center at the number listed below.
| Division | Number | Text Telephones (TTY) |
| Cadillac | 1-800-458-8006 | 1-800-833-2622 |
| Chevrolet | 1-800-222-1020 | 1-800-833-2438 |
| GMC | 1-800-462-8782 | 1-888-889-2438 |
| Guam | 65-6267-1752 | |
| Puerto Rico – English | 1-800-496-9992 | |
| Puerto Rico – Español | 1-800-496-9993 | |
| Virgin Islands | 1-800-496-9994 |
We sincerely regret any inconvenience or concern that this situation may cause you. We want you to know that we will do our best, throughout your ownership experience, to ensure that your GM vehicle provides you many miles of enjoyable driving.
Terry M. Inch
Executive Director
Global Connected Customer Experience
15155
15155
August 2015
https://www.nhtsa.gov/recalls?nhtsaId=10058785
https://static.nhtsa.gov/odi/tsbs/2015/SB-10058785-9942.pdf
To View or Download this Document Click Here
https://static.nhtsa.gov/odi/tsbs/2015/CSC-10058785-9942.pdf
To View or Download this Document Click Here
- GM-recommended replacement part for your GM vehicle’s original factory component
- Offering the quality, reliability, and durability of GM OE
- Manufactured to GM OE specification for fit, form, and function
- GM regularly updates production and service part designs to integrate new materials and technologies
- OEM MIRROR: Master Tailgaters rear view mirrors completely replace your original rearview mirror! The included mount works with your Buick, Chevrolet, GMC, or Cadillac vehicle. A universal windshield mount is also included which allows this unit to be installed on your vehicle. It hooks into the existing wire for your OnStar services, so it will only work if you have an existing OnStar installation in your car and are paying for the OnStar service.
- LCD SCREEN: The mirror is 10.5", with a 4.3" ultra high brightness TFT LCD screen that automatically turns on to display the rear view image when your vehicle is put in reverse. It is twice as bright as standard mirrors, and the LCD display sensor adjusts the screen's brightness to the ambient light so it's easier to see, brighter when it's light outside and dimmer when it's dark out. There are also adjustable guidelines for added safety, which can be adjusted using the included remote.
- TWO VIDEO INPUTS: With 2 video RCA inputs, you are able to display 2 different types of images. One connects to video and the other connects to a backup camera (not included). HIGH QUALITY MIRROR: Our rear view mirror's glass is 4mm thick, making it clear and distortion-free/warp-free.
- ONSTAR FUNCTIONS: This rear view mirror is equipped with 3 convenient OnStar buttons with the same functions are your car's existing buttons -- hands free calling, OnStar customer service, and emergency. Your vehicle must have an existing OnStar installation and service for the buttons to work.
- CONNECT TO BACKUP CAMERA: The rearview mirror plugs into most backup cameras with RCA Inputs (Backup Camera Sold Separately). All parts needed for installation are included and easy to set up!
- 🚘【 Car Stereo with Bluetooth 5.1】Built-in Wireless Bluetooth & Mic, Leadfan double din car stereo allows Siri or Google voice assistant control,picks up your voice more clearly.Sound quality of upgraded version 5.1 is more clearer，enhanced Listening Experience, lets you play and control music apps and make calls hands-free. Easily change up your music and volume with Steering Wheel Controls or the Touchscreen. Telephone book download and audio stream music playback. High-quality FM radio stereo receiver, listen to channel broadcasts, weather forecasts, real-time road conditions, and up to 18 radio stations.
- 🚘【Double Din Radio Stereo for Car】7 inch HD capacitive touch screen，Specific size reference: 173(L)*65(W)*98(H)mm/6.81(L)*(W)*2.56*3.86(H) . Please read our car stereo size carefully, and measure the size fo your dashboard. Some cars may need to buy a double din dash kit, a wire harness adapter, an antenna adapter. In addition, we have attached a color picture and text manual, which introduces the installation steps in detail, so that you can easily install it.
- 🚘【Apple CarPlay Stereo & Android Auto Radios Stereo】-2 USB. Big Logo design for daily driving.Support MirrorLink and navigation function for most the android and iPhone,supports 1080P video playback.You can connect your smartphone to car radio via a original cellphone cable. This Apple carplay double din android auto stereo supports mobile phone charging. Note: The carplay stereo is not the GPS unit. It obtains the GPS navigation function by connecting to the cellphone.
- 🚘【Rear View Backup Camera】7 inch double din car stereo with backup camera is good for your safety, simply shift into reverse and the system powers on the camera automatically, for optimal visibility no matter the weather conditions!12 LEDs HD rear cameras with night vision function, 170° ultra-wide viewing, it's fully waterproof! We provide detailed reversing camera wiring steps, easy to install.Connect the reversing camera, car stereo display will automatically turn to the rear view details.
- 🚘【Equalizer and Subwoofer Output】 Double din car radio built-in equalizer, 5 sound quality and clear high and low bass. The built-in equalizer offers 5 preset sound modes (pop, jazz, classical, rock, electro) and 1 user sound mode. With the physical buttons, especially the volume rotation button, make you easier when driving.

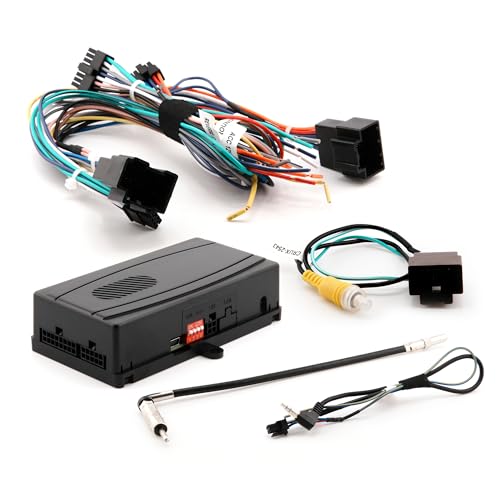

- Radio Replacement Interface With Built In OnStar Retention, Pre-Programmed Steering Wheel Control Retention and Navigation Output
