NHTSA ID Number: 10205537
Manufacturer Communication Number: 17NA040
Summary
This service bulletin provides a procedure to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
46 Affected Products
Vehicles
MAKE | MODEL | YEAR |
BUICK | REGAL | 2013-2020 |
CADILLAC | ATS | 2013-2019 |
CADILLAC | CT6 | 2016-2020 |
CADILLAC | CTS | 2014-2019 |
CADILLAC | XTS | 2013-2019 |
CHEVROLET | CORVETTE | 2014-2022 |
CHEVROLET | SS | 2014-2017 |
Condition
Some customers may comment on a squeal or squeak noise from the front brakes. This condition normally only occurs on initial brake applications after the vehicle has sat for an extended time. The condition occurs typically under light braking, in speeds under 16 km/h (10 mph). After 1-6 brake applies, or after braking at higher speeds, the noise no longer occurs. This condition may occur more often in high humidity conditions.
Correction
Apply a coat of copper paste to completely cover the pad backing plate abutments on each end.
SEOCONTENT-START
Copyright 2021 General Motors LLC. All Rights Reserved.
Service Bulletin Bulletin No.: 17-NA-040
Date: November, 2021
TECHNICAL
Subject: Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies
Brand: Model:
Model Year: VIN:
Engine: Transmission:
from to from to
Buick Regal GS 2013 2020 — All All
Cadillac
ATS
2013
2019
— All All
XTS
CTS (VIN A) 2014
ATS-V
CTS-V 2016
CT6 2020
Chevrolet
Corvette 2014 2022
— All All
SS 2014 2017
Involved Region or Country North America, Japan, Europe, Russia, Middle East, China, Iraq, Israel, Palestine,
Cadillac Korea (South Korea), Thailand
Condition
Some customers may comment on a squeal or squeak noise from the front brakes. This
condition normally only occurs on initial brake applications after the vehicle has sat for an
extended time. The condition occurs typically under light braking, in speeds under 16 km/
h (10 mph). After 1-6 brake applies, or after braking at higher speeds, the noise no longer
occurs. This condition may occur more often in high humidity conditions.
Correction Apply a coat of copper paste to completely cover the pad backing plate abutments on
each end.
Service Procedure
Important: The use of wheel cleaners or power
washers directly pointed at the brake caliper may wash
the copper paste off of the brake pads. It may be
necessary to apply the copper paste again if the
lubricant is washed away. The copper paste should be
applied whenever the brake pads are removed or
replaced.
Apply a coat of copper paste to completely cover the
pad backing plate abutments on each end. The paste
should not extend onto the friction material. Follow the
instructions listed below.
Buick Regal
3326987
Page 2 November, 2021 Bulletin No.: 17-NA-040
Legend
(1) Abutment Area
5926095
Legend
(1) Cleaned Abutment Area
(2) Correct Amount of Copper Paste
(3) Incorrect Amount of Copper Paste
1. Remove the front disc brake pads. Refer to Front
Disc Brake Pads Replacement in SI.
2. Using acrysol Kent Industries Part# P2005 or
equivalent, wipe clean both ends of the abutment
area on the front pads and calipers.
3. Apply approximately 0.10 g (0.0035 oz) of copper
paste to each end of the disc brake pad abutments
that contact the brake caliper bracket.
Note: Avoid a light apply of the paste as illustrated
above.
4. Re-install the front disc brake pads. Refer to Front
Disc Brake Pads Replacement in SI.
Cadillac Models and Chevrolet Models
3326987
Legend
(1) Abutment Area
5926095
Legend
(1) Cleaned Abutment Area
(2) Correct Amount of Copper Paste
(3) Incorrect Amount of Copper Paste
1. Remove the front disc brake pads. Refer to Front
Disc Brake Pads Replacement in SI.
2. Remove the rear disc brake pads. Refer to Rear
Disc Brake Pads Replacement in SI.
Bulletin No.: 17-NA-040 November, 2021 Page 3
4337633
3. Using acrysol Kent Industries Part# P2005 or
equivalent, wipe clean both ends of the abutment
area on the front and rear pads and calipers.
4. Apply approximately 0.10 g (0.0035 oz) of copper
paste to each end of the disc brake pad abutments
that contact the brake caliper bracket.
Note: Ensure that the ends of the brake pads have
enough copper paste applied, if not, could result of the
noise condition returning.
4364263
4364283
5. (Chevrolet SS Models Only) Apply a rectangular
shape of copper paste in the center of the spacer
before installing on the back of the pad.
Note: DO NOT replace brake pads for this condition.
6. Re-install the front disc brake pads. Refer to Front
Disc Brake Pads Replacement in SI.
4337814
Important: DO NOT remove the silencers (1) on
the pads.
Important: Always replace brake pads with Brembo
GM OEM pads (2). Aftermarket pads could result in the
braking performance changing in many ways.
7. Re-install the rear disc brake pads. Refer to Rear
Disc Brake Pads Replacement in SI.
Page 4 November, 2021 Bulletin No.: 17-NA-040
Parts Information
For Export Regions that may not be able to obtain the
part numbers below, please use an appropriate
equivalent.
Description Part
Number
Qty
Lubricant
19303310
(In Canada,
use
19303311)
3
Warranty Information
For vehicles repaired under the Bumper-to-Bumper
coverage (Canada Base Warranty coverage), use the
following labor operation. Reference the Applicable
Warranties section of Investigate Vehicle History (IVH)
for coverage information.
Labor
Operation
Description Labor Time
2480038*
Cleaning and Reapplying
Lubricant to Front Disc
Brake Pads
2020–2022
Corvette
RPO J55
Brakes –
1.0 hr
All Other
Models –
0.6 hr
Add Cleaning and Reapplying
Lubricant to Rear Disc
Brake Pads
0.4 hr
*This is a unique Labor Operation for bulletin use only.
Version 8
Modified March 6, 2017 – Added the Cadillac CT6 model.
March 17, 2017 – Removed an Important statement from Service Procedure.
November 30, 2018 – Added the 2018 and 2019 Model Years.
August 11, 2020 – Added the 2020 Corvette Model, updated the Involved Region or
Country section, added an Export region statement to the Parts Information and relocated
the Parts Information and Warranty Information sections.
December 18, 2020 – Added the 2020 CT6 Model and updated the Involved Region or
Country section.
August 27, 2021 – Added the 2020 Model Year to Regal, 2021 Model Year to Corvette
and updated the Involved Region or Country section.
November 17, 2021 – Added the 2022 Model Year to Corvette, updated two graphics
showing copper paste and updated Warranty Information with new Labor Time for 2020–
2022 Corvette with RPO J55 Brakes.
GM bulletins are intended for use by professional technicians, NOT a “do-it-yourselfer”. They are written to inform these
technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper
service of a vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do a
job properly and safely. If a condition is described, DO NOT assume that the bulletin applies to your vehicle, or that your
vehicle will have that condition. See your GM dealer for information on whether your vehicle may benefit from the
information.
WE SUPPORT VOLUNTARY
TECHNICIAN
CERTIFICATION
SEOCONTENT-END
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: November, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10205537
MC-10205537-9999.pdf 294.147KB
NHTSA ID Number: 10205043
Manufacturer Communication Number: 17NA040
Summary
This service bulletin provides a procedure to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: September, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10205043
MC-10205043-9999.pdf 365.154KB
NHTSA ID Number: 10180294
Manufacturer Communication Number: 17NA040
Summary
This technical bulletin provides a procedure to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: August, 2020
https://www.nhtsa.gov/recalls?nhtsaId=10180294
MC-10180294-9999.pdf 323.884KB
NHTSA ID Number: 10186060
Manufacturer Communication Number: 17NA040
Summary
This technical bulletin provides a procedure to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: December, 2020
https://www.nhtsa.gov/recalls?nhtsaId=10186060
NHTSA ID Number: 10187374
Manufacturer Communication Number: 17NA040
Summary
This technical bulletin provides a procedure to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: December, 2020
https://www.nhtsa.gov/recalls?nhtsaId=10187374
NHTSA ID Number: 10138043
Manufacturer Communication Number: 17-NA-040
Summary
This technical bulletin provides a procedure to apply copper paste to the brake calipers to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: Mar-2017
https://www.nhtsa.gov/recalls?nhtsaId=10138043
MC-10138043-9999.pdf 645.168KB
NHTSA ID Number: 10116626
Manufacturer Communication Number: 17-NA-040
Summary
This technical bulletin provides a procedure to apply copper paste to the brake calipers to correct a condition of Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: 17-NA-040
Date: Feb-2017
https://www.nhtsa.gov/recalls?nhtsaId=10116626
MC-10116626-9999.pdf 644.565KB
NHTSA ID Number: 10112284
Manufacturer Communication Number: PI1496C
Summary
This preliminary information provides a procedure to apply lubricant to the front and rear disc brakes to correct a condition of a brake squeal or squeak noise on brake applies.
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1496C
Date: Jan-2016
https://www.nhtsa.gov/recalls?nhtsaId=10112284
MC-10112284-9999.pdf 652.932KB
NHTSA ID Number: 10112266
Manufacturer Communication Number: PI1496B
Summary
This preliminary informational bulletin provides a procedure for applying lubricant to the front and rear brake pads to correct a condition of a break squeal or squeak noise on brake applys
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1496B
Date: Jan-2016
https://www.nhtsa.gov/recalls?nhtsaId=10112266
NHTSA ID Number: 10201132
Manufacturer Communication Number: PI1496A
Summary
Brake squeal or squeak Noise Intermittently on Initial Brake applies
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1496A
Date: Dec-2015
https://www.nhtsa.gov/recalls?nhtsaId=10201132
MC-10201132-9999.pdf 406.271KB
NHTSA ID Number: 10190924
Manufacturer Communication Number: PI1496A
Summary
Brake Squeal or Squeak Noise Intermittently on Initial Brake Applies
Condition/Concern
Some customers may comment on a squeal or squeak noise from the front brakes. This condition normally only occurs on initial brake applications after the vehicle has sat for an extended time. The condition occurs typically under light braking, in speeds under 16 km/h (10 mph). After 1-6 brake applies, or after braking at higher speeds, the noise no longer occurs. This condition may occur more often in high humidity conditions.
“This site contains affiliate links for which OEMDTC may be compensated” |

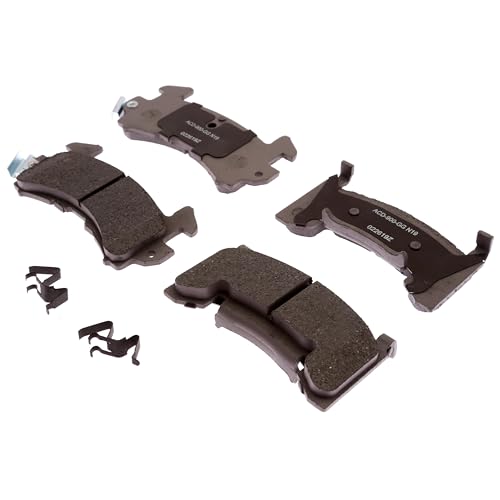

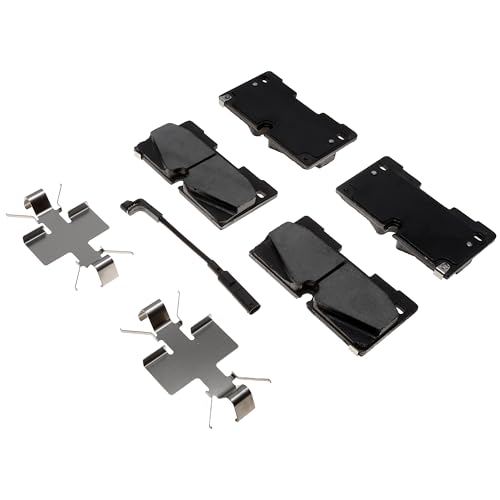

- Product Type :Vehicle Brake Pad
- Package Dimensions :10.0 " L X6.62 " W X2.5 " H
- Country Of Origin :Mexico
- Package Weight :9.95Lbs
- Constantly Modernizing Our Powerful Devices To Meet The Demands Of The Modern User
- Integrally molded - friction material molded to backing plate for bond integrity
- Premium shims, slots, and chamfers help to diminish noise, vibration, and braking harshness
- GM-recommended replacement part for your GM vehicle’s original factory component
- Manufactured to GM OE specification for fit, form, and function
- Vehicle Fitment: Cadillac: ATS 2016-2019, CTS 2009-2015. Chevy: Camaro 2010-2018, Corvette 2015-2019
- Integrally molded - friction material molded to backing plate for bond integrity
- Premium shims, slots, and chamfers help to diminish noise, vibration, and braking harshness
- GM-recommended replacement part for your GM vehicle's original factory component
- Manufactured to GM OE specification for fit, form, and function
- Integrally molded - friction material molded to backing plate for bond integrity
- Premium shims, slots, and chamfers help to diminish noise, vibration, and braking harshness
- GM-recommended replacement part for your GM vehicle's original factory component
- Manufactured to GM OE specification for fit, form, and function
- GM Brake Code J55 (Heavy Duty Brakes) Only!
- Fits: Specific Models - Check Fitment Chart and Product Description for Accurate Information
- Premium Ceramic Brake Pads - Last Longer And Have a Smooth Quiet Stopping Performance That Is Far Superior To The Generic Metallic Pads
- Undergo impact, wear, and fatigue testing to help ensure quality and durability
- Brake Pads are build to exceed OEM Specification and have the proper fit and finish required for superior stopping power
- Fits: Specific Models - Check Fitment Chart and Product Description for Accurate Information
- Kit Includes: (2) Front Ceramic Brake Pads + (2) Rear Ceramic Brake Pads
- Premium Ceramic Brake Pads - Last Longer And Have a Smooth Quiet Stopping Performance That Is Far Superior To The Generic Metallic Pads
- Undergo impact, wear, and fatigue testing to help ensure quality and durability
- Brake Pads are build to exceed OEM Specification and have the proper fit and finish required for superior stopping power
- Integrally molded - friction material molded to backing plate for bond integrity
- Premium shims, slots, and chamfers help to diminish noise, vibration, and braking harshness
- Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
- GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
- GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Last update on 2024-04-15 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
