NHTSA ID Number: 10184100
Manufacturer Communication Number: PIT5766A
Summary
This Preliminary information communicates there is a Part Restriction for the Automatic Leveling Control Module and to contact the PQC to order the part.
SEOCONTENT-START
Bulletin No.: PIT5766A
Published date: 11/5/2020
Preliminary Information
PIT5766A Automatic Leveling Control Module Part Restriction
Models
Brand: Model: Model Years:
VIN:
Engine: Transmissions:
from to
Cadillac Escalade Models 2021 All All All All
Chevrolet Tahoe 2021 All All All All
Chevrolet Suburban 2021 All All All All
GMC Yukon Models 2021 All All All All
Involved Region or Country North America
Additional Options (RPO) F47 Air Ride Adaptive Suspension
Condition
As part of our ongoing continuous improvement we have placed the Automatic
Leveling Control Module on restriction. If you believe a new module is needed,
contact the PQC. Please have the part number available prior to contacting PQC.
Cause Root Cause Analysis.
Correction:
Please contact the (PQC) by opening a new case via Dealer Case Management (DCM). From the DCM home page,
click on “New PQC Case” found on the Technical Assistance tab.
Then, in Global Connect click on the Support/Chat tab, TAC-PQC Tab, PQC – Parts Restrictions Templates to
Download the appropriate PQC – Parts Restrictions Template and save a copy to your computer. You can attach a
copy of the template to your PQC Case.
Note: Do Not clear any DTCs prior to contacting the PQC
Parts Information
Description Part Number
Automatic Leveling Control Module 84951816
Warranty Information
For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following
labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage
information.
Labor Operation Description Labor Time
8020980 Automatic Level Control Module Replacement Use Published Time
Additional SI Keywords
C103C C103D C103E C103F C1175 C1176 C1184 C1187 C1188 C1189 C118A C118B C118C C118E C118F C1190
C1191 C1192 C1193 C1194 C1195 C1196 C1197
Version History
Version 2
Modified
10/12/2020 – Created on.
11/05/2020 – Update Part number in Parts Section.
SEOCONTENT-END
4 Affected Products
Vehicles
MAKE | MODEL | YEAR |
CADILLAC | ESCALADE | 2021 |
CHEVROLET | SUBURBAN | 2021 |
CHEVROLET | TAHOE | 2021 |
GMC | YUKON XL | 2021 |
1 Associated Document
Manufacturer Communications
Bulletin No.: PIT5766A
Published date: 11/5/2020
https://www.nhtsa.gov/recalls?nhtsaId=10184100
“This site contains affiliate links for which OEMDTC may be compensated” |
- Upgraded replacement - this air compressor replaces and improves on the original part for certain Cadillac, Chevrolet and GMC vehicles
- Enhanced technology - features advanced thermal protection software to prevent future burn out
- More durable - addition of protective membrane prevents moisture intrusion
- Complete repair - brackets, dryer, air filter boxes, sealed sound isolation shielding, wiring harness and connectors included
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
- Direct Fit, OE Replacement Air Suspension System
- Kit Includes: (1) Front Electronic Strut Conversion Kit; (2) Front Air Shock Assemblies; (2) Rear Air Shock Assemblies; (1) Air Suspension Compressor with Mounting Bracket; (2) Front Shock & Spring Assemblies
- Vehicle Specific: Check fitment information in the listing for compatibility
- OE Reference Number(s): 10395825,15056494,15070878,15101577,15254590,15296756,15949881,19299545,20837299,20930288,22941806,23282712,25913289
- Aftermarket Reference Number(s): 10395825,11590,139104,14510900,15056494,15070878,15101577,15254590,15296756,15949881,181784,19299545,20012200C,20012200WOD,20837299,20930288,22941806,23282712,25913289,40034,4J0003C,949000,949001,949052,949099,AS2700,AS2708,AS2715,P2204,P2793,P3242,SHO00015
- 【Air suspension】]also known as air springs or air compression suspension, is a suspension accessory that ensures a smooth ride.
- 【Applicable Models】Air suspension for Fit for 2002-2011 Cadillac Escalade;Suburban,Tahoe; GMC Yukon. (This model excluded: Avalanche 1500---With Z55 Autoride). It can replace the original shock absorber package directly.
- 【Excellent Quality】 Original factory replacement, high quality silicone, forged aluminum alloy. Bags lasted 80k miles and 8 years. air shocks for better fit to the original car
- 【Reference OEM Number】 OEM electronic air shocks: 22187156 25979393 25979394. Fit For CHEVY GM Truck SUV with Z55 Autoride.Interchangeable part numbers:23487280 19300069 19300070 19300071 19300072
- 【Package Included】 Come with a pair of CHEVY GM Truck SUV Air Suspensions Bags. If you have any questions about this product, please feel free to contact us.
- Vehicle Compatibility - RETRUE Air bags rear suspension kit for 2007 to 2018 Chevy Silverado 1500 and GMC Sierra 1500 2WD 4WD (Not High Country and Not Denali models, Year 2015-2018), 2019 Silverado 1500 Light Duty "LD" Model Only, perfect replacement for the Firestone Ride-Rite 2430 kit
- Air Ride Suspension Kit - Offering an impressive load-leveling capacity of up to 5,000 pounds, increase spring rate more effectively than traditional or original, reduce the amount of shock and vibration, improve vehicle stability to provide a safer and more comfortable ride
- Effortless Installation - Our air spring bag kit features pre-drilled holes and no drill required, ensuring a hassle-free installation process. With included comprehensive instructions and labeled parts, just turn on some tunes and have a blast with the install. Tips: automated tools will speed it up
- Customized Air Pressure - Allows you to fine-tune the air bags pressure from 5 to 100 psi, levels vehicle front-to-rear and side-to-side for optimal balance and ride comfort
- Reliable Customer Support - At RETRUE, customer satisfaction is our top priority. Rest assured that we stand behind our products with unwavering confidence. If you have any questions or concerns, our dedicated support team is here to assist you every step of the way. Your satisfaction is guaranteed.
- Fully adjustable air springs to level your vehicle when towing or hauling a heavy load for a safe comfortable ride.Fit Type: Vehicle Specific
- Up to 5,000 pounds of load leveling capability
- Easy to install with included detailed instructions. Fits single rear wheel (SRW) and dual rear wheel (DRW) models. Will fit most side mount fifth wheel hitch applications. Does not fit cab & chassis applications. Does not fit Quadrasteer applications. Fits many 3/4 ton and 1 ton pickups and vans
- Fitment details listed in the product description
- Lifetime Warranty with 60 day Ride Satisfaction Guarantee
- Customers are advised to compare Part OEM Number: 15254590, 19299545, 20930288, 22941806, 949-000, 949000, 949-001, 949001
- Compatible with Ca-dillac Escalade 2002-2013, Chevy Avalanche 1500 2002-2013
- Compatible with Chevy Suburban 1500 2001-2013, Chevy Tahoe 2001-2013
- Compatible with G-MC Yukon 2001-2013, G-MC Yukon XL 1500 2001-2013
- Note: If you are uncertain about the compatibility, just send us your VIN. We will check it for you.
- FITMENT - Fits the following years 2019 2020 2021 2022 2023 2024 19 20 21 22 23 24

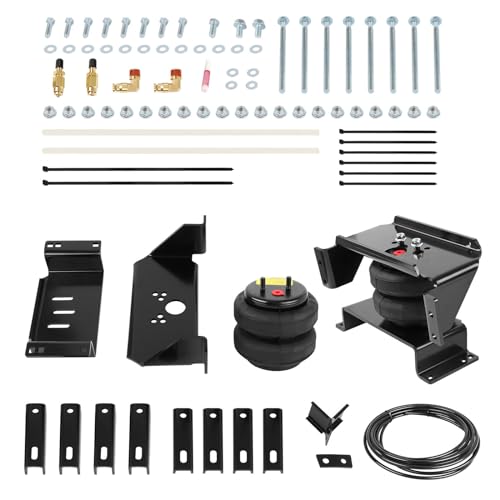

- REPLACE - This air helper spring kit is direct OEM replacement to Firestone Ride Rite W21-760-2609 which is suitable for 2019 - 2024 model Chevrolet Silverado / GMC Sierra 1500 pickup trucks with 2-wheel drive and 4-wheel drive. It fits High Country and Denali models as well.
