NHTSA ID Number: 10160994
Manufacturer Communication Number: PIC5815D
Summary
This Preliminary Information communication provides information to the technician about vehicles that may have sit lower at being parked for several days. It is important to note that, under normal conditions, it is typical and acceptable for the air suspension system to drop slightly over time. Dealers can remind customers that cycling the ignition or starting the vehicle will bring the trim height back to normal levels.
7 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| CADILLAC | XTS | 2013-2019 |
SEOCONTENT-START
Bulletin No.: PIC5815D Published date: 05/9/2019
Preliminary Information
PIC5815D Normal Characteristic – Loss Of Rear Trim Height Over Time and Temperature Change
Models
Brand: Model: Model Years:
VIN:
from to
Engine: Transmissions:
Cadillac XTS 2013 – 2019 ALL ALL
ALL ALL
Supersession Statement
This PI was superseded to update Model Years. Please discard PIC5815C.
The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this
PI.
Condition / Concern
Some customers may comment that their vehicle is sitting low after being parked for several days or
more. Technicians may complete normal diagnostics for Air Suspension Air Leaks or Low/Uneven Trim
Height with no trouble found.
Recommendations / Instructions
It is important to note that, under normal conditions, it is typical and acceptable for the air
suspension system to drop slightly over time. Changes in temperature can affect trim height as
well. The trim height can be expected to drop as much as 2.6mm per every 10*F drop in ambient
temperature.
If a customer states that their vehicle loses trim height when parked and unused for several days
but achieves and maintains normal trim height when cycling the ignition and using the vehicle
regularly, this should be considered normal operation and no repairs should be attempted. In this
situation, the technician would expect to find no leaks or air bubbles when testing with soapy
water.
Dealers can remind customers that cycling the ignition or starting the vehicle will bring the trim
height back to normal levels.
Customer Information
Please communicate to the customer this condition is a normal operating characteristic of their
vehicle. It will not impact the designed performance or reliability of the vehicle. Please share
this information with the customer, including a copy of this message.
Please follow this diagnostic or repair process thoroughly and complete each step. If the condition
exhibited is resolved without completing every step, the remaining steps do not need to be
performed.
SEOCONTENT-END
Bulletin No.: PIC5815D
Published date: 05/9/2019
https://www.nhtsa.gov/recalls?nhtsaId=10160994
https://static.nhtsa.gov/odi/tsbs/2019/MC-10160994-9999.pdf
To View or Download this Document Click Here
Loading...
Reload document
Open in new tab
Bulletin No.: PIC5815C
Published date: 11/7/2017
https://www.nhtsa.gov/recalls?nhtsaId=10125102
https://static.nhtsa.gov/odi/tsbs/2017/MC-10125102-9999.pdf
To View or Download this Document Click Here
Loading...
Bulletin No.: PIC5815A
Date: Oct-2014
https://www.nhtsa.gov/recalls?nhtsaId=10135353
https://static.nhtsa.gov/odi/tsbs/2014/MC-10135353-9999.pdf
To View or Download this Document Click Here
Loading...
Bulletin No.: PIC5815
Date: Feb-2013
https://www.nhtsa.gov/recalls?nhtsaId=10112879
https://static.nhtsa.gov/odi/tsbs/2013/MC-10112879-9999.pdf
To View or Download this Document Click Here
Loading...
Bulletin No.: PIC5815
Date: February, 2013
https://www.nhtsa.gov/recalls?nhtsaId=10073178
https://static.nhtsa.gov/odi/tsbs/2013/MC-10073178-3639.pdf
To View or Download this Document Click Here
Loading...
| “This site contains affiliate links for which OEMDTC may be compensated” |
- Upgraded replacement - this air compressor replaces and improves on the original part for certain Cadillac, Chevrolet and GMC vehicles
- Enhanced technology - features advanced thermal protection software to prevent future burn out
- More durable - addition of protective membrane prevents moisture intrusion
- Complete repair - brackets, dryer, air filter boxes, sealed sound isolation shielding, wiring harness and connectors included
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool

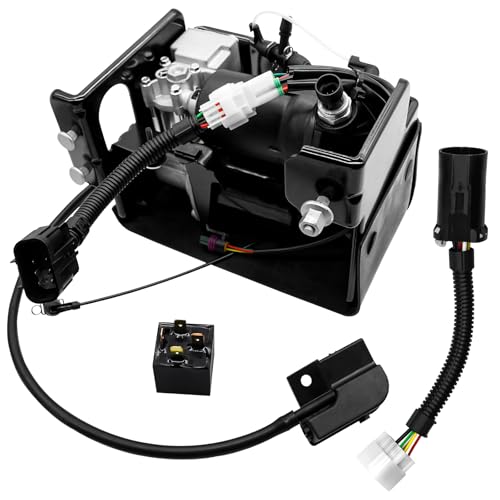

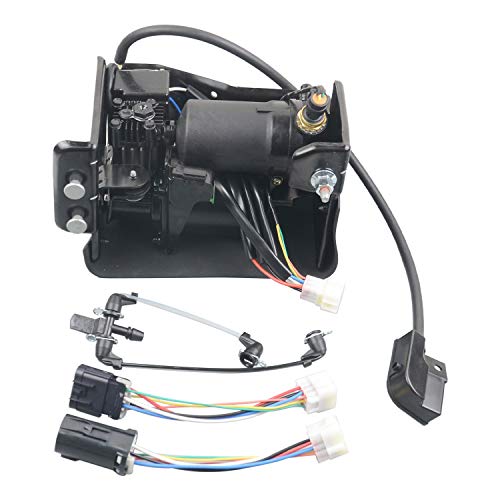

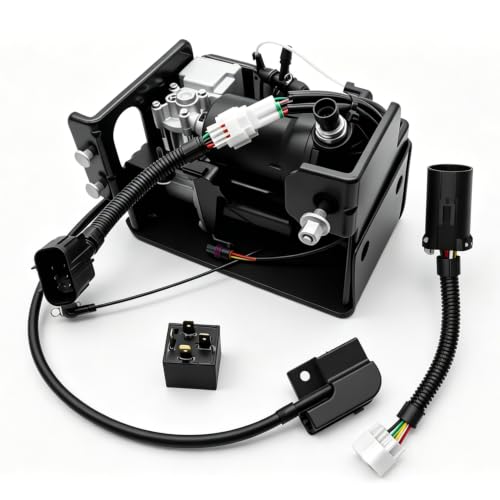

- Air suspension compressor pump replacement for 2013-2018 Cadillac XTS 3.6L V6
