NHTSA ID Number: 10078501
Manufacturer Communication Number: PI-1302-A
Summary
THIS TECHNICAL BULLETIN PROVIDES A PROCEDURE TO INSTALL AN AIR INLET DEFLECTOR OVER THE HVAC AIR INLET TO CORRECT WATER LEAKING ON THE FRONT PASSENGER FLOOR DUE TO WATER RUNNING DOWN THE WINDSHIELD UNDER THE AIR INLET GRILLE PANEL, ENTERING THE BODY AIR INLET OF THE HVAC SYSTEM.
Condition/Concern
Some customers may comment on water leaking on the front passenger floor during a hard rain or snow melt off when the vehicle is on an incline. This condition may be caused by water running down the windshield under the air inlet grille panel, entering the body air inlet of the HVAC system.
Recommendation/Instructions
Install an air inlet deflector over the HVAC air inlet following the procedure below:
1. Remove the passenger side air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in SI.
2. Clean the surface around the HVAC air inlet and the back of the air inlet deflector where it will contact the dash panel with LORD Fusor 703 Adhesion Prep/Cleaner or equivalent.
Important: Trial fit the deflector to understand where the adhesive will be bonding along with the installation path of the part during assembly.

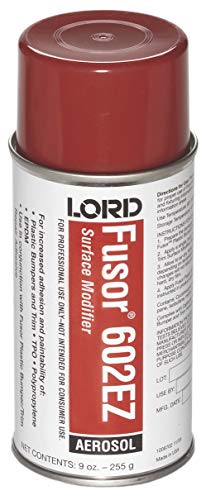

3. Using LORD Fusor 602EZ Surface Modifier, spray one light coat to the dash panel and air inlet deflector.
Important: Allow a MIN time of 10 minutes for the surface modifier to dry before moving onto the next step.
4. Insert LORD Fusor 143 Plastic Repair Adhesive into the applicator.
4.1. Onto a disposable surface, squeeze the applicator trigger until both parts of the adhesive comes out and wipe the excess.
4.2. Screw on the mixing nozzle and squeeze out about a nozzle length of the adhesive.
5. Apply the 143 Plastic Repair Adhesive above the foam on the backside of the deflector and install over the HVAC air inlet. The bead size should be 1/4”
to 3/8” in diameter. The new deflector should be held firmly in position for 1 minute.
Important: Once the adhesive has been purged from the mixing nozzle, working time is about 1 minute. Begin applying the adhesive immediately and be sure and have the deflector near the HVAC air inlet.
Parts
| Description | Qty | Part Number |
| DEFLECTOR-AIR INL GRL PNL WAT | 1 | 95364898 |
| Plastic Repair Adhesive | 1 | 143  |
| Surface Modifier | 1 | 602EZ |
| Adhesion Prep/Cleaner | 1 | 703 |
6 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| CHEVROLET | CRUZE | 2011-2016 |
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1302A
Date: 13-Apr-2016
https://www.nhtsa.gov/recalls?nhtsaId=10078501
SB-10078501-7690.pdf 171.798KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10094489
Manufacturer Communication Number: PI1302
Summary
THIS PRELIMINARY BULLETIN PROVIDES A PROCEDURE TO INSTALL A DEFLECTOR UNDER THE COWL TO CORRECT THE CUSTOMERS CONCERN OF A WATER LEAK DURING A HARD RAIN OR SNOW.
NHTSA ID Number: 10072516
Manufacturer Communication Number: PI1302
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1302
Date: September, 2014
https://www.nhtsa.gov/recalls?nhtsaId=10072516
SB-10072516-0335.pdf 333.234KB
Loading...
NHTSA ID Number: 10056448
Manufacturer Communication Number: PI-1302
Summary
CHEVROLET: VEHICLE ON AN INCLINE AND A SNOW MELT OFF OR HARD RAIN HAS OCCUR, WATER WOULD LEAK ONTO PASSENGER SIDE FLOOR, CAUSED BY RUNNING DOWN WINDSHIELD UNDER AIR INLET GRILLE PANEL TO BODY AIR INLET OF HVAC SYSTEM. MODEL 2011-2015 CRUZE. *PE
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1302
Date: September, 2014
https://www.nhtsa.gov/recalls?nhtsaId=10056448
SB-10056448-8949.pdf 420.153KB
Loading...
| “This site contains affiliate links for which OEMDTC may be compensated” |
- Professional Formula - This Clear Silicone Adhesive Sealant is a Sensor-Safe, General Purpose Clear RTV Sealant that can be used inside or outside for all your jobs
- Do It All- Seal, Bond, Repair, Mend And Secure Glass, Metal, Plastics, Fabric, Vinyl, Weather Stripping, Vinyl Tops, And More With This Clear Rtv Silicone Sealant
- Resist The Elements- Permatex Clear Silicone Adhesive Sealant Is Waterproof And Flexible, Resists Water, Weather, And Vibration On All Your Applications
- Multipurpose Formula- With A Temperature Range From : -75°f To 400°f (-59°c To 204°c) Clear RTV Silicone Can Be Used All Around And Can Be Used To Protect And Repair Electrical Wiring
- Suggested Applications- Door Frames, Seams And Roofs, Vinyl Tops, Windshields, Housings And Coverings, (Not Recommended For Engine Gasket Applications)
- Non-Corrosive Formula - Ultra Black Maximum Oil Resistance Silicone Gasket Maker Is Sensor-safe; With A Non-Corrosive Formula Designed For Superior Adhesion To Oily Surfaces And Long Term Durability
- Superior Resistance - Powertrain Fluids Including Engine Oil, Transmission Fluid, Gear Lube And Coolants To Keep Your Application Locked In Place To Create A Strong Long Lasting Seal
- High Flexibility - Ultra Black Silicone Gasket Maker Retains High Flexibility And Oil Resistant Properties And Can Be Used To Replace Pre Cut Gaskets Or Be Used As A Gasket Maker Or Gasket Sealant
- Long-lasting And Durable - Ultra Black Resists Aging, Weathering And Thermal Cycling Without Hardening, Shrinking Or Cracking. With A Temperature Range Of -65°f To 500°f (-54°c To 260°c) Intermittent
- Suggested Applications: Valve Covers And Valve Guides, Oil Pans, Transmission Pans, Intake Manifold End Seals, Timing Gear Covers, And Differential Covers
- HI TEMP RED SILICONE GASKET MAKER & SEALANT: Is an RTV (Room Temperature Vulcanized) Silicone gasketing material, designed for use in mechanical assemblies where the existence of higher, continuous temperatures up to 550º F or 650º F intermittent might exist
- COUNT ON US: For more than 40 years, our products have earned a loyal following from people who take pride in their work. With each product we innovate, we continue to provide the world's strongest bond for your projects
- EASY TO USE: Curing when the product is exposed to the moisture in air, it forms a tough, waterproof seal on most surfaces. It will not shrink or crack, resists weathering and is sensor safe
- VERSATILE & DEPENDABLE: Ideal for automotive, metal, oil pans, exhaust manifolds, water pumps, timing covers, differential covers, drive housings and oven doors
- DO IT YOURSELF: Big or small, you can DIY it with J-B. Our heavy duty adhesives repair & restore it right the first time. JB Weld delivers the legendary performance of the World's Strongest Bond
- Professional Formula - This Black Silicone Adhesive Sealant Is A Sensor-safe, General Purpose Black RTV Sealant That Can Be Used Inside Or Outside For All Your Jobs
- Do It All- Seal, Bond, Repair, Mend And Secure Glass, Metal, Plastics, Fabric, Vinyl, Weather Stripping, Vinyl Tops, And More With This Black RTV Silicone Sealant
- Resist The Elements- Permatex Black Silicone Adhesive Sealant Is Waterproof And Flexible; Resists Water, Weather, And Vibration On All Your Applications
- Multipurpose Formula- With A Temperature Range From -75°f To 450°f (-59°c To 232°c) Black RTV Silicone Can Be Used All Around And Can Be Used To Protect And Repair Electrical Wiring
- Suggested Applications- Door Frames, Electrical Connections, Seams And Roofs, Vinyl Tops, Weather Stripping, Housings And Coverings, (not Recommended For Engine Gasket Applications)
- 100% WATERPROOF: This 100% silicone formula offers ultimate protection from water damage, providing a reliable seal in areas prone to consistent water exposure
- UV Protection and 50 Years Durability Guarantee: No Yellow No Color Change
- No Odor = No Smell
- 30-MINUTE WATER-READY: Ready for water exposure in as little as 30 minutes
- SHRINK & CRACK-PROOF: Withstands extreme expansion or contraction associated with temperature fluctuations
- High Performance Formula - Ultra Grey Silicone Gasket Maker is Sensor-Safe, With a Non-Corrosive Formula Designed to Provide Reliable “Formed-in-Place” Gaskets for Mechanical Assemblies
- Vibration Resistant - Permatex Ultra Grey Offers Maximum Vibration Resistance, Withstanding High Torque Loads While Creating a Tough, Flexible, Silicone Rubber Gasket
- Long-Lasting Durable Silicone Gasket - Resists Aging, Weathering, and Thermal Cycling Without Hardening, Shrinking, or Cracking with Temperature Resistance from -65°F to 500°F (-54°C to 260°C).
- Multi-Purpose Gasket Material - Ultra Grey Silicone Gasket Maker Retains High Torque and Vibration Resistance and Can Be Used to Replace Pre Cut Gaskets or Be Used as a Gasket Maker or Gasket Sealant
- Suggested Applications: Valve Covers, Water Pump Housings, Intake Manifold End Seals, Thermostat Housings, Timing Gear Covers, Transmission Pans, and Oil Pans
- HI TEMP SILICONE GASKET MAKER & SEALANT: Is an RTV Silicone gasketing material, designed for use in mechanical assemblies where continuous temperatures up to 550º F or 650º F intermittent exist
- WHAT THE PROFESSIONALS USE: Builders, mechanics & repair pros know our products bond strong to a variety of surfaces in even the toughest environments. Choose the product pros trust for your project
- EASY TO USE: Curing when the product is exposed to the moisture in air, it forms a tough, waterproof seal on most surfaces. It will not shrink or crack, resists weathering and is sensor safe
- VERSATILE & DEPENDABLE: Ideal for automotive, metal, oil pans, exhaust manifolds, water pumps, timing covers, differential covers, drive housings and oven doors
- DO IT YOURSELF: Big or small, you can DIY it with J-B. Our heavy duty adhesives repair & restore it right the first time. JB Weld delivers the legendary performance of the World's Strongest Bond.
- Designed specially for high-torque and high vibration applications
- Maximum vibration resistance, with outstanding resistance to oils, cooling and shop fluids
- OEM specified, guaranteed not to leak
- Low odor and non-corrosive formula
- Suggested Applications: Valve covers, oil pans, intake manifold end seals, timing covers, water pumps, thermostat housings
- 100% RTV Silicone is a non-slump sealant and can be applied to vertical or overhead surfaces without flowing or sagging
- one-part, moisture-curing RTV (room temperature vulcanizing) silicone that cures to a strong, silicone rubber that maintains long-term durability and flexibility
- excellent resistance to weathering including ozone, ultra-violet radiation, freeze-thaw conditions and airborne chemicals
- Fully cured, it has an excellent adhesion to glass, metal, porcelain, ceramic, wood, most plastics and many other nonporous substrates
- permitted under regulations of the Food and Drug Administration where incidental food contact might be involved. FDA Regulation number is 175.105
- Formulated for high temperature applications or heavy-duty use (such as towing); resists auto and shop fluids
- Replaces almost any cut gasket by making reliable "formed-in-place" gaskets that resist cracking, shrinking and migrating caused by thermal cycling
- Coats pre-cut gaskets to increase reliability
- Temperature Range: -65°F to 650°F (-54°C to 343°C) intermittent
- Suggested Applications: Valve covers, oil pans, timing covers, water pumps, and thermostat housings
Last update on 2024-06-13 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
Bulletin No.: PI1302A Date: 13-Apr-2016
Subject: Water Leaking on Front Right Passenger Floor During Hard Rain or Snow Melt Off When Vehicle is on an Incline Models: 2011-2015 Chevrolet Cruze
2016 Chevrolet Cruze (VIN P)
Attention: This PI also applies to vehicles SOLD in ISRAEL. This PI has been revised to add the 2016 Model Year. Please discard PI1302.
Condition/Concern
Some customers may comment on water leaking on the front passenger floor during a hard rain or snow melt off when the vehicle is on an incline. This condition may be caused by water running down the windshield under the air inlet grille panel, entering the body air inlet of the HVAC system.
Recommendation/Instructions
Install an air inlet deflector over the HVAC air inlet following the procedure below:
1. Remove the passenger side air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in SI.
1 2. Clean the surface around the HVAC air inlet and the back of the air inlet deflector where it will contact the dash panel with LORD Fusor 703 Adhesion Prep/Cleaner or equivalent.
Important: Trial fit the deflector to understand where the adhesive will be bonding along with the installation path of the part during assembly.
3. Using LORD Fusor 602EZ Surface Modifier, spray one light coat to the dash panel and air inlet deflector.
Important: Allow a MIN time of 10 minutes for the surface modifier to dry before moving onto the next step.
4. Insert LORD Fusor 143 Plastic Repair Adhesive into the applicator.
4.1. Onto a disposable surface, squeeze the applicator trigger until both parts of the adhesive comes out and wipe the excess.
4.2. Screw on the mixing nozzle and squeeze out about a nozzle length of the adhesive. 2 5. Apply the 143 Plastic Repair Adhesive above the foam on the backside of the deflector and install over the HVAC air inlet. The bead size should be 1/4” 3 to 3/8” in diameter. The new deflector should be held firmly in position for 1 minute.
Important: Once the adhesive has been purged from the mixing nozzle, working time is about 1 minute. Begin applying the adhesive immediately and be sure and have the deflector near the HVAC air inlet.
Parts Information
Contact LORD Fusor at 1-800-234-FUSOR (3876) or online at www.fusor.com for obtaining products.
Part Number
Description
Qty
Material Allowance 95364898 DEFLECTOR-AIR INL GRL PNL WAT 1 – 143* Plastic Repair Adhesive 1 $7.12 USD (per vehicle)
$7.68 Canada (per vehicle) 602EZ** Surface Modifier 1 $2.71 USD (per vehicle)
$2.93 Canada (per vehicle)
703**
Adhesion Prep/Cleaner
1
$2.33 USD (per vehicle)
$2.52 Canada (per vehicle)
*There is enough material to do approximately 4 vehicles. Store the remaining material for future use.
**There is enough material to do multiple vehicles. Store the remaining material for future use. Warranty Information
For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information. Labor Operation Description Labor Time 4480238* Installing Air Inlet Deflector Over the HVAC Air Inlet 0.5 hr *This is a unique Labor Operation for Bulletin use only. It will not be published in the Labor Time Guide. GM bulletins are intended for use by professional technicians, NOT a “do-it-yourselfer”. They are written to inform these technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper service of a vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do a job properly and safely. If a condition is described, DO NOT assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See your GM dealer for information on whether your vehicle may benefit from the information. WE SUPPORT VOLUNTARY TECHNICIAN CERTIFICATION
4
**************************************************************************************************************
**************************************************************************************************************
