NHTSA ID Number: 10089968
Manufacturer Communication Number: 15411
Summary
15411 – SERVICE UPDATE. THIS BULLETIN PROVIDES A SERVICE PROCEDURE TO INSTALL FUSES AND RELAYS AS REQUIRED IN THE UNDERHOOD ELECTRICAL CENTER (UEC) ON CERTAIN 2015 MODEL YEAR CHEVROLET SILVERADO AND GMC SIERRA VEHICLES EQUIPPED WITH AN ACCESSORY-WIRING-JUNCTION-BLOCK (RPO 9L7). THESE VEHICLES MAY HAVE MISSING FUSES AND RELAYS. THE CUSTOMER MAY NOTICE THAT THE AUXILIARY SWITCHES ARE INOPERATIVE AFTER THE FUNCTION IS ADDED TO THE VEHICLE.
2 Affected Products
Vehicles
MAKE | MODEL | YEAR |
CHEVROLET | SILVERADO 1500 | 2015 |
GMC | SIERRA 1500 | 2015 |
Parts
Description | Quantity/ Vehicle | Part Number |
Fuse (5A) | 2 | 19209790 ![]() |

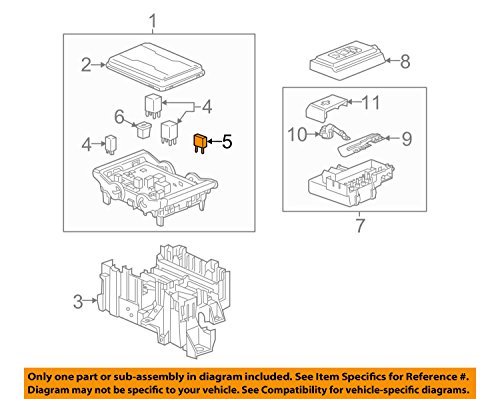

Fuse (30A) | 4 | 19209796 ![]() |
Relay | 4 | 19116057 ![]() |
SEOCONTENT-START
GM Bulletin No.: 15411
Date: June 2015
Subject: | Service Update for Inventory and Customer Vehicles Underhood Electrical Center (UEC) Missing Fuses and Relays Expires with Base Warranty |
Models: | 2015-2016 Chevrolet Silverado |
2015-2016 GMC Sierra | |
Equipped with Accessory Wiring Junction Block (RPO 9L7) |
This service update includes vehicles in dealer inventory and customer vehicles that return to the dealership for any reason. This bulletin will expire at the end of the involved vehicle’s New Vehicle Limited Warranty period.
PURPOSE
This bulletin provides a service procedure to install fuses and relays as required in the Underhood Electrical Center (UEC) on certain 2015 model year Chevrolet Silverado and GMC Sierra vehicles equipped with an accessory-wiring-junction-block (RPO 9L7). These vehicles may have missing fuses and relays. The customer may notice that the auxiliary switches are inoperative after the function is added to the vehicle.
This service procedure should be completed as soon as possible on involved vehicles currently in dealer inventory and customer vehicles that return to the dealer for any type of service during the New Vehicle Limited Warranty coverage period.
VEHICLES INVOLVED
All involved vehicles are identified by VIN in the Global Warranty Management System – Investigate Vehicle History Application. Dealership technicians should always check this site to confirm vehicle involvement prior to beginning any required inspections and/or repairs. It is important to routinely use this tool to verify eligibility because not all similar vehicles may be involved regardless of description or option content.
Additionally, a list of involved vehicles currently in dealer inventory is available on the “Service Update Bulletin Information” link under the “Service” tab in GM GlobalConnect (US) or attached to the GlobalConnect message (Canada) used to release this bulletin. Customer vehicles that return for service, for any reason, and are still covered under the vehicle’s base warranty should also be checked for vehicle eligibility.
PART INFORMATION
Parts required to complete this service update are to be obtained from General Motors Customer Care and Aftersales (GMCCA). Please refer to your “involved vehicles listing” before ordering parts. This part will be on Order Writing control initially and all DRO’s (Daily Replenishment Orders) will cancel. Dealers can place orders CSO (Customer Special Order). In emergency situations a dealer should place a SPAC case and the orders will be processed in the order received.
Part Number | Description | Quantity/ Vehicle |
19209790 ![]() |
Fuse (5A) | 2 |
19209796 ![]() |
Fuse (30A) | 4 |
19116057 ![]() |
Relay | 4 |
Service Procedure
This service procedure covers the installation of six fuses and four relays in the Underhood Electrical Center (UEC). These components are required for functionality of the RPO 9L7 Auxiliary Switch Panel located in the center of the Instrument Panel.
- Remove the cover from the Underhood Electrical Center (1).
Note: UEC fuse block component locations viewed from left side of vehicle
Note: UEC fuse block before fuse and relay installation
Note: UEC fuse block after fuse and relay installation
Note: Firmly insert components directly from the top, (Do not wiggle).
- Locate fuse positions 22 and 27 circled in purple.
- Install the two tan 5A fuses.
- Locate fuse positions 23, 30, 32, and 37 circled in green.
- Install the four green 30A fuses.
- Locate relay positions 60, 61, 62, and 65 circled in red.
- Install the four gray HIPWR relays in their correct orientation.
- Install the UEC cover, and close the hood.
WARRANTY TRANSACTION INFORMATION
Submit a transaction using the table below. All transactions should be submitted as a ZFAT transaction type, unless noted otherwise.
Labor Code | Description | Labor Time |
9101612 | Install UEC Fuses / Relays | 0.3 |
DEALER PROGRAM RESPONSIBILITY
Whenever a vehicle subject to this service update enters your vehicle inventory, or is in your facility for service in the future, and the vehicle is still covered under the New Vehicle Limited Warranty, you must take the steps necessary to be sure the service update correction has been made before selling or releasing the vehicle.
SEOCONTENT-END
GM Bulletin No.: 15411
Date: June 2015
https://www.nhtsa.gov/recalls?nhtsaId=10089968
https://static.nhtsa.gov/odi/tsbs/2015/SB-10089968-2280.pdf
To View or Download this Document Click Here
