NHTSA ID Number: 10113670
Manufacturer Communication Number: PI1024C
Summary
This preliminary informational bulletin provides product and repair information for the Jatco CVT automatic transmission.
2 Affected Products
Vehicle
| MAKE | MODEL | YEAR |
| CHEVROLET | SPARK | 2014-2015 |
Parts

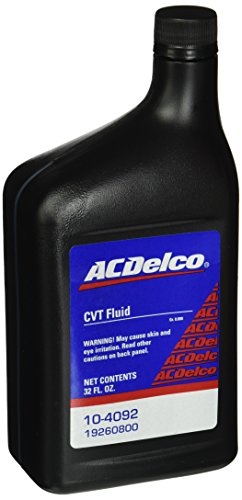

| ACDelco CVT Fluid P/N | 19260800  |
| ACDelco CVT Fluid P/N | 19299096 |
The JATCO CVT Transmission is a continuous variable transmission with a pair of variable pulleys, a steel belt and a shifting ratio planetary gear set designed to improve the overall performance of the transmission.
Each pulley set has one fixed sheave and one moving sheave which determine the transmission ratio in each range.
This transmission has an overall ratio spread of 7.3:1
Transmission Fluid Level and Condition Check
1. The vehicle must be on a flat surface.
2. Move the selector lever into the Park (P) position and then completely engage the parking brake.
3. Start and idle the engine.
Notice: The CVT fluid is largely affected by temperature, therefore be sure to use the diagnostic tool to check the fluid temperature while adjusting.
4. Wait until the transmission fluid temperature reaches 122°F (50°C).
5. Move through the selector lever positions with the foot brake depressed. Switch the selector lever from position P to L and then back to P. Hold each position for at least 5 seconds.
6. Verify that there are not any transmission fluid leaks.
Notice: Continue to perform this work with the engine idling.
7. Check the transmission fluid temperature with the diagnostic tool.
8. When the transmission fluid temperature has reached approximately 122–176°F (50–80°C), raise the vehicle.
9. Remove the drain plug (1). Remove and DISCARD the drain plug gasket (2).
⇒ If the fluid is flowing as a steady stream, wait until the fluid begins to drip. If no fluid comes out, add fluid until it drips out.
Notice: Do not re-use drain plug gasket, replace with a NEW gasket.
10. When the fluid drips out from the overflow tube, install the drain plug (1) with a NEW gasket (2) and tighten to 34 Y (25 lb ft).
11. Lower the vehicle.
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1024C
Date: Jun-2015
https://www.nhtsa.gov/recalls?nhtsaId=10113670
MC-10113670-9999.pdf 816.551KB
Loading...
Reload document
Open in new tab
NHTSA ID Number: 10113622
Manufacturer Communication Number: PI1024B
Summary
This preliminary informational bulletin provides a revision of PI1024A to add the 2015 Model Year.
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1024B
Date: Apr-2015
https://www.nhtsa.gov/recalls?nhtsaId=10113622
MC-10113622-9999.pdf 809.078KB
Loading...
NHTSA ID Number: 10133091
Manufacturer Communication Number: PI1024A
Summary
This preliminary bulletin provides additional information on the Jatco transmissions, maintenance and trans explanation.
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1024A
Date: Dec-2013
https://www.nhtsa.gov/recalls?nhtsaId=10133091
MC-10133091-9999.pdf 811.227KB
Loading...
NHTSA ID Number: 10130591
Manufacturer Communication Number: PI1024
Summary
This preliminary information bulletin provides information for the Jatco CVT automatic transmission for the 2014 Spark.
1 Associated Document
Manufacturer Communications
Bulletin No.: PI1024
Date: Jul-2013
https://www.nhtsa.gov/recalls?nhtsaId=10130591
MC-10130591-9999.pdf 795.729KB
Loading...
NHTSA ID Number: 10071699
Manufacturer Communication Number: PI1024
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1024
Date: August, 2013
https://www.nhtsa.gov/recalls?nhtsaId=10071699
SB-10071699-5448.pdf 557.204KB
Loading...
NHTSA ID Number: 10073400
Manufacturer Communication Number: PI1024A
Summary
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
1 Associated Document
Service Bulletin Document
Bulletin No.: PI1024A
Date: December, 2013
https://www.nhtsa.gov/recalls?nhtsaId=10073400
Loading...
| “This site contains affiliate links for which OEMDTC may be compensated” |
- Continuous variable transmission fluid
- Green-colored
- Do not use DEXRON VI or the green automatic transmission fluid used in the GM continuous variable transmission
- Promotes a longer seal life
- Long fluid life
- For most automatic and & continuously variable transmissions including Ford, GM, Chrysler and Asian Imports
- Enhanced friction durability for smooth transmission performance
- Superior high temperature protection to effectively resist oxidation
- Unsurpassed protection against copper corrosion
- Specific coefficient of friction intended only for CVTs ensures smooth ratio changes without power interruption, enables engine to remain at its maximum power RPM, and provides for consistent, uninterrupted acceleration
- Fluid is colored green (as opposed to traditional red transmission fluids) to provide for simple visual identification of proper fluid for CVT-specific use
- Use of this product assists in guaranteeing the CVT’s advantages in efficiency
- Formulated with full-synthetic base stocks and advanced additive technology to meet the challenging demands of automatic transmissions.
- Enhanced anti-shudder protection for maximum power transfer
- Developed with anti-wear technology to help improve transmission durability
- Engineered with a proprietary blend of base oils and advanced additives to provide better oil flow at low temperatures and greater film protection at higher temperatures
- Surpasses OEM Fluid Performance: Meets all functionality requirements for CVT manufacturers; Better, more reliable, longer lasting performance than OEM and factory fluids for both chain & belt CV transmissions in European, Asian, and US vehicles
- Universal Spec Compliance: Fully compatible with all CVT Transmissions from most OEMs, including Mercedes, Suzuki, Hyundai, Kia, Nissan, Honda, Ferrari, BMW, Mini, Idemitsu, and many others
- Excellent Shift Quality: Reduces or eliminates transmission noise and shudder; Eliminates slipping, and offers consistent oil film for quiet, flawless high speed shifting
- Total Compatibility: With Subaru, Nissan NS-2 & NS-3, Kia, BMW, Mercedes, Honda, Acura, Mitsubishi, VW, Audi, Mazda, Ford, and many other CVT fit vehicles
- Excellent Temperature Performance: Ideal for all season applications from 130 F to -40 F, without any performance issues
- Designed to deliver trouble-free, consistent performance
- Right for your vehicle and lifestyle
- Made from high-quality materials for ultimate durability
- Manufactured to meet or exceed strict quality requirements
- If you have any questions or need fitment information for your vehicle, please contact with us
- ✅ Exceptional frictional stability to eliminate slippage.
- ✅ Optimal shear – viscosity performance to keeps an effective oil film, under cold and hot driving circumstances.
- ✅ Superior protection against wear, sludge formation, rust and corrosion: even under extreme operational conditions.
- ✅ Excellent thermo-oxidative stability, low temperature properties, seal compatibility and foam resistant.
- ✅ Reduces noise, vibration, and harshness of Wet-Clutch Performance.
- FOR USE IN 95% of ATF VEHICLES INCLUDING MOST CVTs in operation with US registered light duty applications
- HIGH PERFORMANCE CONDITIONING AGENTS prolong seal elasticity to prevent leaks
- IMPROVE DURABILITY & TRANSMISSION LIFE with anti-wear technology to avoid costly repairs
- ENHANCED HIGH & LOW TEMP PERFORMANCE supports transmission fluid in all weather situations
- FULL SYNTHETIC FORMULA protects against engine breakdown better than conventional fluids
- Enhanced friction durability for smooth transmission performance
- Superior high temperature protection to effectively resist oxidation
- Unsurpassed protection against copper corrosion
- Broad scope of vehicle applications improves workshop efficiency and inventory management
- FULL SYNTHETIC CVT FLUID: Our CVT transmission fluid is a full synthetic solution designed for the sophisticated variable transmissions of today's modern vehicles and ensures maximum RPM power.
- VERSATILE AND ECONOMICAL: This CVT fluid eliminates the need for stocking multiple, limited OEM brands. It offers equal or better performance than most CVT fluids in the market.
- PERFORMANCE ENHANCER: Our CVT transmission fluid works seamlessly with your transmission with equal, and in most cases, better performance than most common North American CVT fluids, enabling the engine to maintain its maximum power RPM, ensuring optimal performance.
- SMOOTH ACCELERATION: This CVT transmission fluid provides consistent and uninterrupted acceleration, enhancing your driving experience. A perfect fix for your CVT transmission issues.
- SUPERIOR QUALITY: Our CVT fluid is a premium transmission additive, offering a reliable fix for your CVT-related problems. It ensures your transmission system performs at its best.
Last update on 2024-04-06 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
Bulletin No.: PI1024C Date: Jun-2015 Subject: Chevrolet Spark Product Information for Jatco CVT Automatic Transmission Models: 2014-2015 Chevrolet Spark Equipped With Jatco CVT Automatic Transmission This PI has been revised to update the section titled: Transmission Fluid Cooler Flushing and Flow Test, by removing this text “when performing the Flushing and Flow Test on the Jatco CVT” and adding a footnote for DEXRON® VI being a registered trademark. Please discard PI1024B. Transmission General Description The JATCO CVT Transmission is a continuous variable transmission with a pair of variable pulleys, a steel belt and a shifting ratio planetary gear set designed to improve the overall performance of the transmission. Each pulley set has one fixed sheave and one moving sheave which determine the transmission ratio in each range. This transmission has an overall ratio spread of 7.3:1 For detailed information and component pictures regarding this transmission refer to SI. Go to > 2014 or 2015 > Chevrolet Spark (US/Canada) > Service Manual/Bulletins > Transmission > Automatic Transmission – Jatco CVT > Description and Operation > Transmission Component and System Description Transmission Component View 1 1. Engine Lift Bracket 2. Engine Lift Bracket Bolt/Screw 3. Transmission Case Bolts/Studs 4. Transmission Case Plug Seal (O Ring) 5. Transmission Case Plug 6. Transmission Vent Pipe 7. Transmission Vent Hose 8. Transmission Vent Hose Clip 9. Transmission Output Speed Sensor 10. Transmission Input Speed Sensor 11. Vehicle Speed Sensor Seal (O Ring) 12. Manual Shift Detent Assembly Lever (With Shift Position Switch) 13. Transmission Speed Sensor Bolt/Screw 14. Transmission Range Selector Lever Assembly 15. Transmission Range Selector Lever Washer 16. Transmission Range Selector Lever Nut 17. Transmission Fluid Pan Assembly 2 18. Transmission Fluid Pan Gasket 19. Transmission Fluid Pan Bolt/Screw 20. Transmission Fluid Pan Drain Plug 21. Transmission Fluid Pan Drain Plug Gasket 22. Font Wheel Drive Shaft Oil Seal Assembly (RHS) 23. Font Wheel Drive Shaft Oil Seal Assembly (LHS) 24. Transmission Fluid Fill Tube 25. Transmission Fluid Fill Tube Plug Assembly 26. Transmission Fluid Fill Tube Bolt/Screw 27. Transmission Fluid Fill Tube Seal (O Ring) 28. Transmission Fluid Pan Magnet 29. Transmission Fluid Drain Plug and Overflow Tube Transmission Cross-Sectional View 1. Converter Housing 2. Oil Pump 3. Counter Drive Gear 4. Control Valve 5. Oil Pan 6. Primary Pulley 7. Steel Belt 8. Secondary Pulley 3 9. Planetary Gear (Auxiliary Gearbox) 10. Side Cover 11. Transmission Case 12. Differential Case 13. Final Gear 14. Reduction Gear 15. Counter Driven Gear 16. Drive Sprocket 17. Oil Pump Chain 18. Torque Converter 19. Driven Sprocket Transmission Fluid • In the United States use: ACDelco CVT Fluid P/N 19260800 (Shown) • In Canada use: ACDelco CVT Fluid P/N 19299096 The Jatco CVT automatic transmission uses a transmission fluid which is green in color. This fluid is DIFFERENT from the Saturn CVT green automatic transmission fluid. DO NOT use the Saturn CVT green automatic transmission fluid or DEXRON® VI, as these fluids ARE NOT compatible with the Jatco CVT automatic transmission. Transmission Fluid Level and Condition Check Caution: Use the correct transmission fluid as identified in this PI. Failure to do so may result in internal transmission damage. 1. The vehicle must be on a flat surface. 4 2. Move the selector lever into the Park (P) position and then completely engage the parking brake. 3. Start and idle the engine. Notice: The CVT fluid is largely affected by temperature, therefore be sure to use the diagnostic tool to check the fluid temperature while adjusting. 4. Wait until the transmission fluid temperature reaches 122°F (50°C). 5. Move through the selector lever positions with the foot brake depressed. Switch the selector lever from position P to L and then back to P. Hold each position for at least 5 seconds. 6. Verify that there are not any transmission fluid leaks. Notice: Continue to perform this work with the engine idling. 7. Check the transmission fluid temperature with the diagnostic tool. 8. When the transmission fluid temperature has reached approximately 122–176°F (50–80°C), raise the vehicle. 9. Remove the drain plug (1). Remove and DISCARD the drain plug gasket (2). ⇒ If the fluid is flowing as a steady stream, wait until the fluid begins to drip. If no fluid comes out, add fluid until it drips out. Notice: Do not re-use drain plug gasket, replace with a NEW gasket. 10. When the fluid drips out from the overflow tube, install the drain plug (1) with a NEW gasket (2) and tighten to 34 Y (25 lb ft). 11. Lower the vehicle. Transmission Fluid Cooler Flushing and Flow Test Notice: Refer to SI for the complete transmission fluid cooler flushing and flow test procedure. Go to > Chevrolet Spark (US/Canada) > Service Manual/Bulletins > Barina Spark Automatic Transmission > Transmission > Transmission Cooling > Diagnostic Information and Procedures > Transmission Fluid Cooler Flushing and Flow Test (JATCO CVT) GM studies indicate that plugged or restricted transmission oil coolers and pipes cause insufficient transmission lubrication and elevated operating temperatures which can lead to premature transmission failure. Many repeat repair/replacement cases could have been prevented by following published procedures for transmission oil cooler flushing and flow checking. The procedure includes flow checking and flushing the auxiliary transmission oil cooler. The Spark ONLY USES GM transmission fluid ACDelco CVT Fluid P/N 19260800 – United States, and in Canada ACDelco CVT Fluid P/N 19299096. Cooler Flow Check and Flushing Steps 5 Time allowance for performing the cooler flow checking and flushing procedure has been included in the appropriate labor time guide operation. The service procedure steps for oil cooler flushing and flow testing are as follows: 1. Machine Set-up 2. Determine Minimum Flow Rate 3. Back Flush 4. Forward Flush 5. Flow Test 6. Code Recording Procedure 7. Clean-up Special Tools For equivalent regional tools, refer to Special Tools in SI. • DT-45096 Transmission Oil Cooling System Flush and Flow Test Tool • DT-45096-50 Transmission Cooler Flush Adapter • DT-51175 Range Switch Tool • DT-51323 Seal Installer • Shop air supply with water/oil filters, regulator and pressure gauge – minimum 90 psi • Eye Protection • Rubber Gloves DEXRON® VI is a Registered Trademark of General Motors LLC
SEOCONTENT-END
Looking for information on a p0961 code and the location of the pressure control solenoids in this transmission
Do you know the Jatco part number thats comes in a 2014 Chevrolet Spark 1.2?
I think is JF405E?
Any help will be apreciate.
Thanks.
Part number of what?
Complete transmission jatco part number.
25184064
https://static.nhtsa.gov/odi/tsbs/2013/SB-10063202-2273.pdf
Hi I have a question more than a comment, I have a 2014 chevy spark 1LT and I am receiving a p0871 code that is saying transmission fluid pressure sensor. I have searched for days and weeks now and I can not find any information on the part or how to resolve my issue. Can you please help me with any information on what I should do?
DTC P0871 : Transmission Fluid Pressure Switch 3 System Performance
Circuit/System Description
The Transmission Fluid Pressure Switch 3 also known as the Oil Pressure Switch is part of the control solenoid valve assembly which has no serviceable parts.
The Transmission Fluid Pressure Switch 3 shares the Transmission Manual/Automatic Date Output circuit with the ROM Assembly in the transmission. The ROM Assembly uses the Transmission Manual/Automatic Date Output circuit as a low speed serial data circuit between the ROM Assembly in the transmission and the transmission control module. The ROM Assembly only communicates with the transmission control module when the RUN/CRANK circuit goes high. Data is transmitted once during the drive cycle and happens quickly. After that data exchange, the function of the Transmission Manual/Automatic Date Output circuit becomes the Transmission Fluid Pressure Switch 3. The Transmission Fluid Pressure Switch 3 reflects the status of the high clutch oil pressure. The Transmission Fluid Pressure Switch 3 is normally open. When the clutch is commanded ON the Transmission Fluid Pressure Switch 3 closes. The DTC sets if there is a mismatch between the TCM commanded high clutch position and the status of the switch.
Conditions for Running the DTC
Condition 1
TCM DTC P0705, P0706, P0796, P0797, P0961, P0962, P0963, P2714, or P2715 is not set.
System voltage 10–16 V.
Transmission Range P, N or R.
High clutch pressure command 0 MPa.
ROM assembly not communicating.
DTC P0871 runs continuously.
Condition 2
TCM DTC P0705, P0706, P0796, P0797, P0961, P0962, P0963, P2714, or P2715 is not set.
System voltage 10–16 V.
Transmission Range D or L.
High clutch pressure command 0 MPa.
Engine Speed greater than 400 RPM.
Vehicle Speed less than 10 km/h (7 mph).
Current commanded auxiliary gear 1st gear.
ROM assembly not communicating.
DTC P0871 runs continuously.
Condition 3
TCM DTC P0705, P0706, P0796, P0797, P0961, P0962, P0963, P2714, or P2715 is not set.
System voltage 10–16 V.
Transmission Range D or L.
High clutch pressure command greater than 0.2 MPa.
Engine Speed greater than 550 RPM.
Output gear speed greater than 300 RPM.
Secondary pulley speed greater than 300 RPM.
Throttle position sensor greater than 7.8%.
Current commanded auxiliary gear 2nd gear.
Actual auxiliary gear ratio less than 1.1.
Vehicle Speed less than 10 km/h (7 mph).
ROM assembly not communicating.
DTC P0871 runs continuously.
Conditions for Setting the DTC
Condition 1 and 2
The High Clutch Pressure Switch status displays ON for greater than 1.5 s.
Condition 3
The High Clutch Pressure Switch status displays OFF for greater than 1.5 s.
Action Taken When the DTC Sets
P0871 is a Type A DTC.
Auxiliary gearbox held in 2nd gear.
Neutral idle disabled.
Conditions for Clearing the DTC
P0871 is a Type A DTC.
Diagnostic Aids
Caution: Use correct transmission fluid only. Failure to use the proper fluid may result in transmission internal damage.
A Transmission Fluid Pressure Switch may malfunction due to normal debris in the transmission fluid causing a Transmission Fluid Pressure Switch DTC to intermittently set. If DTC P0871 continues to intermittently set, replacing the transmission fluid may correct the problem. Refer to Transmission Fluid Level and Condition Check for transmission draining and filling.
Circuit/System Verification
Ignition ON. Engine OFF. Transmission in Park.
Verify that the Transmission Fluid Pressure Switch 3 scan tool parameter displays HIGH.
If the parameter does NOT display HIGH
Refer to Circuit/System Testing.
If the parameter does display HIGH
Using the S3 Transmission Shift Lever, shift the transmission to Low.
While monitoring the Transmission Fluid Pressure Switch 3 parameter, accelerate the vehicle to 60 km/h (37 mph). Maintain that speed for at least 15 s with the Calculated Throttle Position parameter displaying less than 20%.
Verify that the Transmission Fluid Pressure Switch 3 parameter continues to display High.
If the parameter does NOT display High
Refer to Circuit/System Testing.
If the parameter does display High
Stop the vehicle.
Using the S3 Transmission Shift Lever, shift the transmission to Drive.
While monitoring the Transmission Fluid Pressure Switch 3 parameter, accelerate the vehicle to 60 km/h (37 mph). Maintain that speed for at least 15 s with the Calculated Throttle Position parameter displaying less than 20%.
Verify that the Transmission Fluid Pressure Switch 3 scan tool parameter displays LOW.
If the parameter does NOT display LOW
Refer to Circuit/System Testing.
If the parameter does display LOW
Verify DTC P0871 is only set as a history DTC.
If the DTC is set as current
Refer to Circuit/System Testing.
If the DTC is only set as history
Note: After inspection, apply Nyogel lubricant 760G to each connector terminal. Ensure each connector and CPA is correctly seated.
Visually inspect each connector terminal of the K71 transmission control module X2 connector and the Q8 Control Solenoid Valve Assembly connector for damage or corrosion. Repair as necessary.
Clear DTC P0871 from history.
Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data. The DTC should not set.
If the DTC sets
Refer to Circuit/System Testing.
If the DTC does not set
All OK.
Circuit/System Testing
Ignition OFF, disconnect the Q8 Control Solenoid Valve Assembly connector and the K71 Transmission Control Module X2 connector.
Note:
When test probing harness terminals, it is imperative to use the proper test probe from the most current version of the J 35616GM-Approved Terminal Test Kit. Use of an improper test probe may deform the terminal, resulting in intermittent open conditions.
Testing for steps 2–4 is performed on the Q8 Control Solenoid Valve Assembly harness connector using the GY probe J 35616-2A.
Chassis ground to Battery ground 25–35 Ω.
Test for infinite resistance between the Transmission Manual/Automatic Date Output circuit terminal 21 and chassis ground.
If less than infinite resistance, repair the short to ground in the circuit.
If infinite resistance.
Test for infinite resistance between the Transmission Manual/Automatic Date Output circuit terminal 21 and all other terminals of the Q8 Control Solenoid Valve Assembly connector.
If less than infinite resistance, repair the shorted together condition in the affected circuits.
If infinite resistance.
Test for less than 10 Ω in the Transmission Manual/Automatic Date Output circuit end to end.
If 10 Ω or greater
Repair the open/high resistance in the circuit.
If less than 10 Ω
Connect all disconnected connectors.
Ignition ON. Engine OFF. Transmission in Park.
Verify that the Transmission Fluid Pressure Switch 3 scan tool parameter displays HIGH.
If the parameter does NOT display HIGH
Replace the T12 Automatic Transmission Assembly. Refer to Transmission Replacement.
If the parameter does display HIGH
Using the S3 Transmission Shift Lever, shift the transmission to Drive.
Verify that the Transmission Fluid Pressure Switch 3 scan tool parameter displays LOW.
If the parameter does NOT display LOW
Replace the T12 Automatic Transmission Assembly. Refer to Transmission Replacement.
If the parameter does display LOW
Transmission Manual/Automatic Date Output circuit and ROM Assembly OK.
