NHTSA ID Number: 10202395
Manufacturer Communication Number: PIT5853
Summary
This Preliminary information communicates information on correcting a rattle noise on driver side of cowl heat shield.
Condition
Some customers may comment on a rattle noise from the driver side dash area in park at idle or while driving.
Cause
The retainer clips that hold the Exhaust Front Underbody Heat Shield may have become loose, shown below.
Correction:
Remove existing retainer clips and replace with updated retainer clip P/N 13232779 and tighten by hand until heat shield is secured into position.
Parts Information
| Description | Part Number | Quantity |
| Heat Shield Retainer | 13232779 | 2 |
12 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| CHEVROLET | SILVERADO 2500 | 2020-2022 |
| CHEVROLET | SILVERADO 3500 | 2020-2022 |
| GMC | SIERRA 2500 | 2020-2022 |
| GMC | SIERRA 3500 | 2020-2022 |
1 Associated Document
Manufacturer Communications
Bulletin No.: PIT5853
Published date: 09/20/2021
MC-10202395-9999.pdf 246.743KB
Loading...
Reload document
Open in new tab
| “This site contains affiliate links for which OEMDTC may be compensated” |
- [Compatibility] : These car heat shield clips replace OEM #6715468, N90335004, N90335006, N90796501, N90796502, fit for Skoda Audi. Please check the picture shape, size and part number carefully before purchasing to ensure that it is suitable for your vehicle
- [Strong material] : These retainer nuts are made of hard metal materials, with pressure resistance and wear resistance, strong bearing capacity, not easy to break, bend and rust characteristics, can be used for a long time
- [Main function] : These splash shield clips mainly provide fixing and heat insulation functions for the automobile engine hood, protecting the engine and other automotive parts from the influence of high temperature, which has an important role
- [Easy to use] : The heat shield clamp is simple in design, easy to install, maintain and disassemble, and can better fit the front end of your vehicle. Its thickness is thin, please be careful not to use too much force when installing
- [Sufficient quantity] : You will receive 20 pieces of this heat shield retainer, which can meet the daily use and replacement needs. Small size and light weight make it easy to store and carry, ready to use
- Other Names( VW): Front Insulator Fastener, Upper Insulator Fastener, Lower Quarter Trim Clamp, Tank Shield Clamp, Tank Shield Retainer, Insulator Clip, Sound Absorber Clip, Return Hose Washer, Heat Shield Clip, Heat Shield Clamp, Heat Shield Lock Washer, Heat Shield Washer, Rear Shield Clamp, Center Shield Clamp, Heat Shield Retainer, Shield Clamp, Washer
- Other Names( Audi): Sound Absorber Retainer, Insulator Clip, Shield Retainer, Retainer, Insulator Retainer, Heat Shield Retainer, Center Shield Retainer, Front Shield Retainer, Rear Shield Retainer, Center Shield Lock Washer, Front Shield Lock Washer, Heat Shield Lock Washer, Insulator Lock Washer, Washer
- Replaces: N-903-350-05, N-907-965-01, N-907-965-02, Fits: Volkswagen: CC, e-Golf, Golf, Golf Alltrack, Golf R, Golf SportWagen, GTI, Jetta, Passat, Tiguan, Touareg
- Fits: Audi: A3, A3 Quattro, A3 Sportback e-tron, A4, A4 allroad, A4 Quattro, A5, A5 Quattro, allroad, Q3, Q3 Quattro, Q7, RS5, S3, S4, S5, TT Quattro
- Dacromet Plated, Stud Size: 5mm Outside Diameter.: 30mm
- These heat shield clips allow you to easily replace worn or faulty lock washers, and they hold the heat shield in place very well.
- Heat shield retainers are made of high-quality metal, not easy to rust, wear-resistant, high temperature resistant and has a long service life.
- Car heat shield fastener diameter: 30mm, hole diameter 4mm. Small and lightweight, easy to carry and replace.
- Usually used as a fixing clip and heat insulation plate under the hood, compatible with Volkswagen, Skoda, Audi and other models.
- Packaging: 20pcs car heat shield clips.
- Other Names: Center Shield Retainer, Front Shield Retainer, Muffler Shield Retainer, Side Shield Retainer, Washer
- Positions: Left Front, Right Front
- Stud Size 5mm, O.D.: 30mm, Dacromet
- Replaces VW: N90-335-006 VW & Audi
- 【20 Heat Shield Clips】There are 20 automotive heat insulation clips with a diameter of 30mm/1.18in, which is sufficient for your various installation needs.
- 【High Quality】The heat shield spacers are made of high strength manganese steel, which has strong resistance, wear resistant, corrosion resistance, heat-resisting, solid and durable.
- 【Easy to Use】Secure with suitable steel screws, the heat shield fastener can be clamped tightly to the surface. provide elasticity between the two attachments and hold the handle shaft firmly.
- 【Wide Range of Uses】The Engine under cover can be used to replace worn or broken clamping washers, and as a fixing clip and heat insulation plate under the hood.
- 【Service】If you have any questions about our Heat Shield Fasteners, please contact us, so we can work on finding you a solution as quickly as possible.We will try our best to provide you with 100% good service.
- High-Quality -- Metal materials, wear-resistant, corrosion-resistant, Not easy to bend, and have a long service life
- Includes -- 20PCS heat shield clips in the package , Which are enough to meet your daily needs
- Compatible With -- VW Skoda Audi N90-335-006, N90796502, N90335004, N90796501
- Note -- Please make sure that the part number is what you need before purchasing. The thickness of the washer is relatively thin, be careful when installing and do not use too much force.
- Service -- If you have any questions about our products, please get in touch with us in time, we will solve the problem for you as soon as possible
- Other Names: Center Shield Retainer, Front Shield Retainer, Muffler Shield Retainer, Side Shield Retainer, Washer
- Positions: Left Front, Right Front
- Stud Size 5mm, O.D.: 30mm, Dacromet
- Replaces VW: N90-335-006 VW & Audi
- Front Air Shield, Splash Guard & Heat Shield Push-Type Retainer Clips
- Head Diameter: 18mm, Stem Length: 18mm, Fits into 6.4mm Hole
- Fits 2015-2019 Ford
Edge, 2018-2019 Ford Expedition, 2011-2019 Ford Explorer, 2009-2019 Ford Flex, 2005-2007 Ford Freestyle, 2011-2019, 2003-2004, 1999-2000 fits Ford Mustang, 2008-2019 Ford Taurus, 2008-2009 Ford Taurus X, 2009-2016 Lincoln MKS, 2010-2019 Lincoln MKT, 2016-2018 Lincoln MKX, 2019 Lincoln Nautilus, 2018-2019 Lincoln Navigator, 2008-2009 Mercury Sable - Fits Chrysler 3002012- 2015, Dodge Charger2011- 2015, Dodge Ram 15002006- 2009, Dodge Ram 25002007- 2009, Dodge Ram 35002006- 2010, Dodge Ram 45002008- 2009, Dodge Ram 55002008- 2009
- Unit Package: 25pcs
- For more than 100 years Auveco has provided high-quality fasteners for body shops, repair shops, OEM's and industrial customers.
- With more than 10,000 fasteners, Auveco offers the largest assortment of retainers, clips, fasteners and hardware.
- Shop with confidence. Auveco works with the best manufacturers in the US and abroad to produce high quality products designed to meet or exceed your car or truck manufacturers specifications.
- OEM Part Number: Reference OEM numbers are 6715468, N90335004, N90335006, N90796501, N90796502. Please note that before purchasing, please carefully confirm the OEM and suitable models, to avoid receiving you can not use
- Application: This automotive clip is ideal for securing clips and heat shields under the hood. It also replaces worn or damaged clamping washers and can keep the shield from rattling loose. Ideal for other hot areas such as exhaust pipes and undercarriage
- Durable Material: This heat shield spacers are made of metal and aluminum with excellent rust and heat resistance. It also has strong compressive and flexural strength, ensuring durability and long-term performance even under extreme conditions

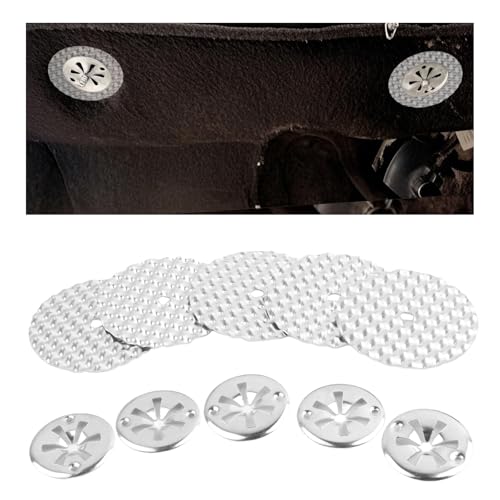

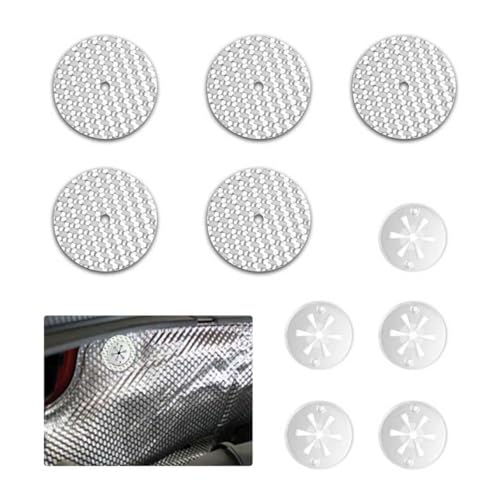

- Quantity and Size: Includes 5 heat protection clamping and 5 clamping washers. Washers are 30mm in diameter, and repair plates are 52mm. Compact and lightweight, making them easy to carry and replace, meeting your daily needs effectively
