NHTSA ID Number: 10192037
Manufacturer Communication Number: 21NA072
Summary
This informational bulletin advises the tech that the solenoid style engine mounts are being replaced with standard non solenoid mounts.
2 Affected Products
Vehicles
Condition
Some technicians may find when replacing the engine mounts, that the new mounts are non-solenoid style mounts.
Some technicians may also find DTC C11F0 and/or C11F1 set.
Correction
Only the affected active mount needs to be replaced. The unaffected mount can be left as is with the wiring connected unless it also has a need for replacement.
Important: This procedure only applies to mounts that are being replaced for failure or damage. Do not replace mounts or use this procedure unless the mount itself has failed.
Mounts replaced that are not failed are not covered by the warranty. Any unaffected mount can be left as is with the wiring connected, unless it also has a need for replacement.
Note: The electrical connector at the solenoid engine mount will need to be cut off and secured in a manor so to avoid water intrusion. Perform the following steps in addition to replacing the engine mounts.
1. Cut off solenoid connector.

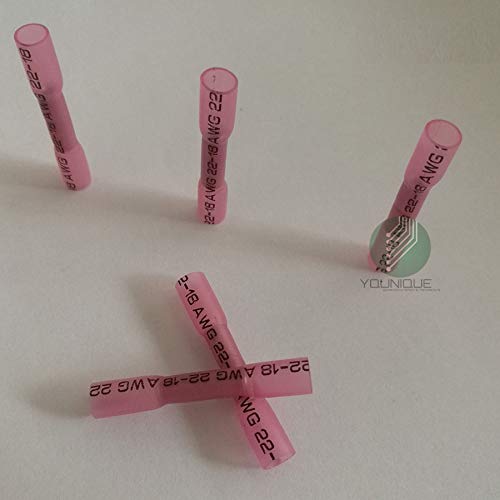

2. Crimp a salmon Duraseal splice sleeve onto the terminated lead.
3. Utilizing the Ultra torch or equivalent, shrink the spice sleeve around the wire and also seal the open end.
4. Tape the wire to the harness with Woven Polyester Electrical Tape (PET).
1 Associated Document
Manufacturer Communications
Bulletin No.: 21-NA-072
Date: March, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10192037
