NHTSA ID Number: 10222830
Manufacturer Communication Number: 21-NA-283
Summary
This service bulletin provides a service procedure to correct a customer concern of a Service Front Suspension Lift System Message Displayed on Driver Information Center (DIC) with DTC C103C and/or C103E Symptom 64 Set.
Condition
Some customers may comment that they have seen a Service Front Lift System message displayed on the DIC.
Some customers may also comment on a pump noise.
Technicians may find one or more of the following DTCs set:
- C103C: Left Front Strut Position Sensor Signal
- C103E: Left Front Strut Position Sensor Signal
Symptom 64: Signal Plausibility Failure (This sub type is used for failures where the control module detects a single input parameter is operating outside the plausible range.)
Cause
Note: If there is low mileage on the vehicle or previous service work on this system has been identified, it is possible that air entrapment in the system may be causing this issue.
This condition may be caused by air entrapment in the lift system.
Correction
Attempt to operate the front lift system several times. Determine if the codes will reset or if the system will raise briefly and then sink back down. If this occurs, that may indicate that there is indeed air trapped within the front suspension lift system.
Follow the published information in SI for these DTCs, paying particularly close attention to “Test B” at the end of the flowchart:
Note: For Prime and Bleed procedures to operate correctly, system related DTCs, specifically C103C and C103E, must be moved to HISTORY.*
⇒ First perform the Prime Front Suspension Pump procedure with the scan tool two times in an attempt to purge any trapped air bubbles from the system.
⇒ Next, raise and lower the front suspension system through 5 complete cycles.
If the DTCs reset, perform the Front Hydraulic Suspension Bleed procedure within Service Information and perform an Automatic Level Control System Bleed.
Re-evaluate the concern.
The Automatic Level Control System Bleed procedure may be performed up to three times, as necessary.
As a way to double check the system, a technician can measure the distance between the floor and the lower portion of the vehicle’s front fascia.
A correctly operating vehicle should reach a front fascia height of at least 35 mm within 4 seconds of pump operation.
4 Affected Products
Vehicle
MAKE | MODEL | YEAR |
CHEVROLET | CORVETTE | 2020-2023 |
1 Associated Document
Manufacturer Communications
Bulletin No.: 21-NA-283
Date: October, 2022
https://static.nhtsa.gov/odi/tsbs/2022/MC-10222830-0001.pdf
MC-10222830-0001.pdf 506.095KB
NHTSA ID Number: 10219292
Manufacturer Communication Number: 21-NA-283
Summary
This service bulletin provides a service procedure to correct a customer concern of a Service Front Suspension Lift System Message Displayed on Driver Information Center (DIC) with DTC C103C and/or C103E Symptom 64 Set.
1 Associated Document
Manufacturer Communications
Bulletin No.: 21-NA-283
Date: August, 2022
https://www.nhtsa.gov/recalls?nhtsaId=10219292
MC-10219292-0001.pdf 503.962KB
NHTSA ID Number: 10204443
Manufacturer Communication Number: PIC6434A
Summary
This Preliminary Information communicates diagnostic tips for a technician to diagnose a C103C / C103E set in the K218 Front Suspension Lift System.
1 Associated Document
Manufacturer Communications
Bulletin No.: PIC6434A
Published date: 11/8/2021
https://www.nhtsa.gov/recalls?nhtsaId=10204443
“This site contains affiliate links for which OEMDTC may be compensated” |

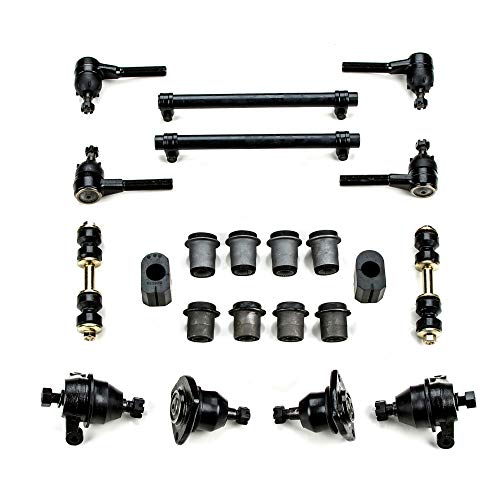

- 1975-1982 MODELS: This Complete Front End Rebuild kit is compatible with 1975, 1976, 1977, 1978, 1979, 1980, 1981, and 1982 Chevrolet Corvettes; Each kit includes all you need plus cotter pins, rubber grease seals/boots, zerk fittings (when applicable), and bolts for the ball joints, tie rod sleeve bolts, nuts and clamps
- INCLUDED COMPONENTS: Inner Tie Rod Ends, Right and Left, Outer Tie Rod Ends, Right and Left, Tie Rod Sleeves (2 Each), Sway Bar Bolts (2 Each), Sway Bar Bushings (2 Each) - 25.5 mm (1 inch), Upper Ball Joints (2 Each), Lower Ball Joints (2 Each), Upper Control Arm Bushings (4 Each), Lower Control Arm Bushings (4 Each), Upper Control Arm Bumpers (2 Each), Lower Control Arm Bumpers (2 Each), Idler Arm
- ENHANCED HANDLING AND CONTROL: By replacing worn-out or damaged components with this comprehensive rebuild kit, you'll enjoy improved handling and control over your vehicle; Experience a revitalized front suspension system that enhances the overall driving experience
- FACTORY DESIGN STOCH VEHICLES: Designed specifically for stock vehicles, this kit consists of factory-designed parts that seamlessly integrate with your vehicle; Experience a smooth and reliable front suspension system that maintains the original design and performance
- HIGH-QUALITY OEM REPLACEMENT KIT : Ensure a precise fit and match the original equipment installed by the manufacturer, providing reliable fit and optimal performance, maintaining the integrity of your vehicle's front end suspension system
- 1968-1974 MODELS: This Complete Front End Rebuild kit is compatible with 1975, 1976, 1977, 1978, 1979, 1980, 1981 and 1982 Chevrolet Corvettes; Each kit includes all you need plus cotter pins, rubber grease seals/boots, zerk fittings (when applicable), and bolts for the ball joints, tie rod sleeve bolts, nuts and clamps

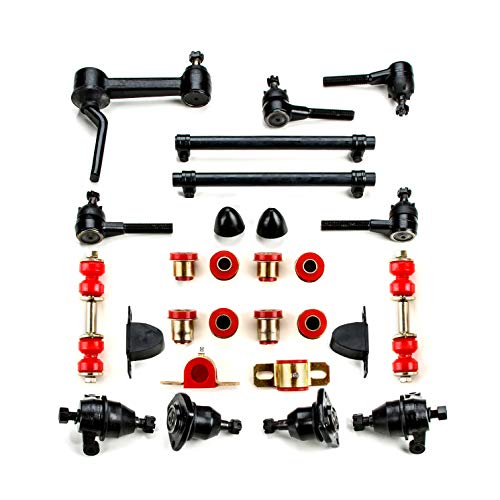

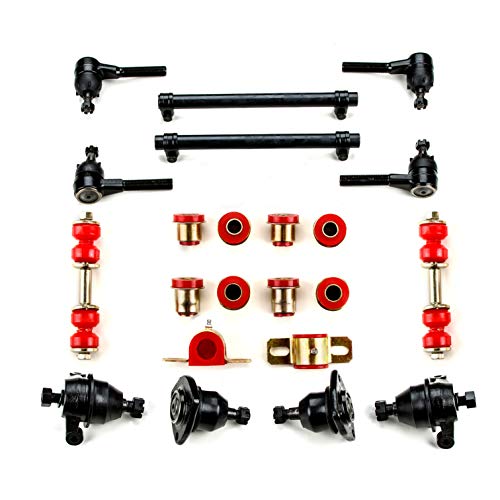

- ENHANCED STABILITY AND CONTROL: By utilizing polyurethane materials, this kit offers superior stability and control during cornering; The Polyurethane suspension parts provide more positive control, allowing you to handle your vehicle with confidence and precision
- INCLUDED IN THE 27 PIECE KIT: 2 Upper Ball Joints W/ Hardware, 2 Lower Ball Joints W/ Hardware, 4 Polyurethane Upper Control Arm Bushings, 4 Polyurethane Lower Control Arm Bushings, 2 Polyurethane Sway Bar Link Kits, 2 Polyurethane Sway Bar Bushings - 25.5 mm (1 inch), 2 Outer Tie Rods W/ Hardware, 2 Inner Tie Rods W/ Hardware, 2 Tie Rod Adjusting Sleeves W/ Clamps And Hardware, 2 Upper Control Arm Bumpers, 2 Lower Control Arm Bumpers, Idler Arm
- PRE-DRILLED BALL JOINTS AND TIE RODS: The ball joints and tie rods included in this kit come pre-drilled for grease fittings; This feature allows for easy lubrication, ensuring smooth and efficient operation of these critical components
- ALL-INCLUSIVE PACKAGE: In addition to the essential components, this complete front end suspension rebuild kit also includes cotter pins, rubber grease seals/boots, zerk fittings (when applicable), and bolts for the ball joints. Furthermore, it provides tie rod sleeve bolts, nuts, and clamps, ensuring that you have everything needed for a comprehensive suspension rebuild
- a hardened, chromed piston rod with micro cracks provides an ultra-smooth, self-lubricating, corrosion- and scratch-resistant surface, helping increase seal life
- drawn over mandrel (dom) pressure cylinder for high quality sealing properties and reduced internal friction to assist with longer product life
- gas charged for reduced fluid aeration, which can result in better response, less foaming, and more consistent control than non-gas charged shocks
- full perimeter, multi-lip, piston rod seal is permanently lubricated and helps keep dirt and contaminates from reaching the interior of the rod
- o-ring hydraulic piston seal resulting in minimized piston blow-by and consistent control

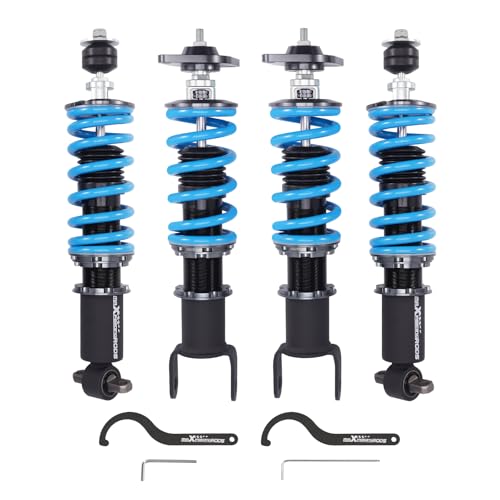

- MAXX Coilovers Compatible With Chevy Corvette (C5) 1997 1998 1999 2000 2001 2002 2003 2004; Excludes Electronic Suspensions; Spring Rate (F/R): 14 kg/mm (784 lbs/inch)/10 kg/mm (560 lbs/inch)
