NHTSA ID Number: 10205565
Manufacturer Communication Number: 21NA241
Summary
This service bulletin provides repair information to correct a customer concern of hearing a sunroof rattle noise.
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
CHEVROLET | CAMARO | 2021 |
Condition
Some customers may comment on hearing a rattle noise coming from the interior roof area of the vehicle while driving.
Cause
The cause of the condition may be due to a lack of body adhesion on the roof body side inner sub assembly.
Correction
Inspect for a faulty adhesive bond within the upper body structure, and repair following the Service Procedure below.
Parts Information
3M® products are available through your local 3M® distributor. Information about 3M® product retailers in your area may be obtained at 1-866-364-3577 or at https://3mcollision.com/
Description | Part Number |

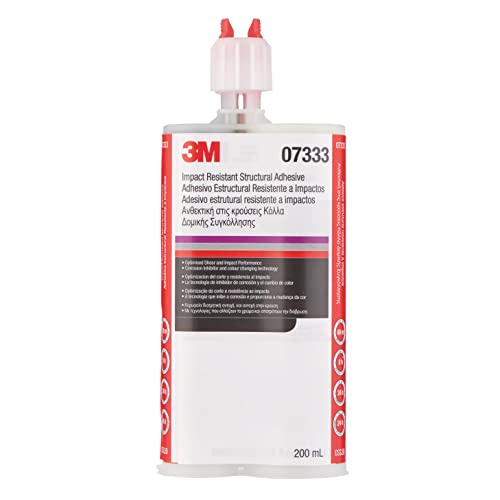

3M™ Impact Resistant Structural Adhesive | 07333 |
SEOCONTENT-START
Copyright 2021 General Motors LLC. All Rights Reserved.
Service Bulletin Bulletin No.: 21-NA-241
Date: November, 2021
TECHNICAL
Subject: Sunroof Rattle Noise
Brand: Model:
Model Year: Date Breakpoint:
Engine: Transmission:
from to from to
Chevrolet Camaro 2021 2021 June
22, 2021
July
13, 2021 All All
Involved Region or Country United States, Canada
Additional Options (RPOs) Equipped with ROOF-SUN, GLASS, SLIDING, ELEC (RPO CF5)
Condition Some customers may comment on hearing a rattle noise coming from the interior roof
area of the vehicle while driving.
Cause The cause of the condition may be due to a lack of body adhesion on the roof body side
inner sub assembly.
Correction Inspect for a faulty adhesive bond within the upper body structure, and repair following
the Service Procedure below.
Service Procedure
5912607
1. Inspect the roof bow by sliding a plastic trim tool
between the rear of the sunroof opening and the
headliner.
2. Slide the trim tool into the seam where the
structural adhesive should be. If the paddle can
penetrate between the roof bows and the roof,
anywhere along the seam, this is considered a bad
condition, and should require adhesion.
5912608
3. Inspect the D-Ring by gently pulling down the
headliner around the sunroof opening, at the left
rear corner.
Page 2 November, 2021 Bulletin No.: 21-NA-241
5912611
Note: It is NOT recommended to ONLY do a visual
inspection.
Note: Be careful not to crease the headliner or knock
the blue blocks out of position when running your hand
in-between the headliner and roof to feel for the D-ring.
4. The headliner should be flexed just enough to not
only visually inspect the D-ring, but also use your
hand to press on it physically to verify the adhesion
bond is good.
5. After verification is complete, re-assemble the seal
around the sunroof opening. If the adhesive is
required, then the headliner must be dropped for
the application process.
6. Obtain the recommended 3M™ Impact Resistant
Structural Adhesive #07333, or equivalent, and
apply following the steps below:
6.1. Remove the left side B & C pillar trim panels,
and lower the rear of the headliner enough to
access the D-ring. Refer to Headlining Trim
Panel Replacement in SI.
5912613
6.2. Use a plastic trim stick to check, and pry the
metals apart. If the vehicle is NOTexhibiting
the condition, the panels will not separate. If
they separate as shown, wedge the trim stick
in between the panels and inject the Plio-grip
adhesive.
5912614
Note: Seats, carpet and any other trims should be
covered to protect from any drips of repair sealant.
6.3. Starting at one side, insert the tip of the
cartridge in between the metals. Then begin
to inject a thick bead (approximately 4–5 mm
(0.160–0.20 in) of adhesive in between the
metals.
Bulletin No.: 21-NA-241 November, 2021 Page 3
5912615
6.4. Work your way across to other end of the
bracket. Remove the trim stick and the allow
metals to snap back. The joint should be
visibly full of adhesive.
5912616
Note: The graphic above shows the Rear Roof Bow
(Rear inside structural bow at rear of sunroof opening),
with the adhesive installed.
6.5. Adhesive must fill the entire void.
Page 4 November, 2021 Bulletin No.: 21-NA-241
5912617
6.6. Wipe off any drips (1) and excess adhesive,
to prevent contact or contamination of other
parts. Ensure there remains a clean, thick
bead (2) of adhesive.
Note: Avoid driving the vehicle and allow the adhesive
to cure at least 10 hours after application.
7. Reinstall the headliner and trim panels, once the
adhesive install is complete. Refer to Headlining
Trim Panel Replacement in SI.
Parts Information
3M® products are available through your local 3M®
distributor. Information about 3M® product retailers in
your area may be obtained at 1-866-364-3577 or at
https://3mcollision.com/
Causal
Part Description Part
Number
Material
Allowance
N/A
3M™ Impact
Resistant
Structural
Adhesive
07333
$67.35 U.S.
$121.20
Canada
Warranty Information
For vehicles repaired under the Bumper-to-Bumper
coverage (Canada Base Warranty coverage), use the
following labor operation. Reference the Applicable
Warranties section of Investigate Vehicle History (IVH)
for coverage information.
Labor
Operation
Description Labor Time
1481578* Inspect Roof Bow, Apply
Sealant
2.5 hrs
*This is a unique Labor Operation for bulletin use only.
Version 1
Modified Released November 15, 2021
GM bulletins are intended for use by professional technicians, NOT a “do-it-yourselfer”. They are written to inform these
technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper
service of a vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do a
job properly and safely. If a condition is described, DO NOT assume that the bulletin applies to your vehicle, or that your
vehicle will have that condition. See your GM dealer for information on whether your vehicle may benefit from the
information.
WE SUPPORT VOLUNTARY
TECHNICIAN
CERTIFICATION
SEOCONTENT-END
1 Associated Document
Manufacturer Communications
Bulletin No.: 21-NA-241
Date: November, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10205565
MC-10205565-9999.pdf 197.326KB
