NHTSA ID Number: 10187771
Manufacturer Communication Number: 21NA008
Summary
This service bulletin provides a procedure to correct a condition of Chrome Peeling Off Interior Door Handle.
5 Affected Products
Vehicle
MAKE | MODEL | YEAR |
CHEVROLET | CAMARO | 2016-2020 |
Parts Information
Causal Part | Description | Part Number | Qty |
X | Handle ASM-FRT S/D I/S (Driver Side) | 84005969 | 1 |
X | Handle ASM-FRT S/D I/S (Passenger Side) | 84005971 | 1 |
Nut Hex Self Thread Internal DR (Pawl Nut) | 11503417 | 4 | |
|
SEOCONTENT-START
Service Bulletin Bulletin No.: 21-NA-008
Date: January, 2021
TECHNICAL
Subject: Chrome Peeling Off Interior Door Handle
Brand: Model:
Model Year: VIN:
Engine: Transmission:
from to from to
Chevrolet Camaro 2016 2020 — — All All
Involved Region or Country
North America, Europe, Russia, Middle East, Israel, Argentina, Brazil, Bolivia, Chile,
Colombia, Ecuador, Paraguay, Peru, Uruguay, Japan, GM Korea Company, China,
Taiwan, Philippines
Condition
5701164
Page 2 January, 2021 Bulletin No.: 21-NA-008
5701165
Some customers may comment that the chrome is starting to peel off from the interior
door handle.
Cause The cause of the condition may be the parting line coming apart.
Correction Replace the door handle.
Service Procedure
If you encounter a vehicle with the above concern,
obtain the new service parts listed in the parts table
below and complete the following steps:
5701166
1. Remove the front side door trim. Refer to Front
Side Door Trim Replacement in SI.
2. Disconnect the electrical connectors from the front
side door inside handle.
5701167
3. Drill the 4 heat stakes with an appropriate size
drill bit.
Note: Do not drill too deeply or the hole in the
substrate will become too large. Drill only enough to
release the handle assembly.
Bulletin No.: 21-NA-008 January, 2021 Page 3
5701171
4. Using a suitable hand tool, remove the remaining
heat stake material.
5701174
5. Remove the front side door inside handle.
6. Align the front side door inside handle to the front
side door trim.
7. With the aid of a second person, support the front
side door inside handle in position.
5701177
8. Stamp nut. Install and hand tighten.
Note: Do not over tighten the nuts.
9. Verify the fit of the front side door inside handle to
the trim.
10. Carefully install the electrical connectors to the
front side door inside handle.
11. Re-install the front side door trim. Refer to Front
Side Door Trim Replacement in SI.
Parts Information
Causal
Part Description Part
Number Qty
X
Handle ASM-FRT
S/D I/S
(Driver Side)
84005969 1
X
Handle ASM-FRT
S/D I/S
(Passenger Side)
84005971 1
Nut Hex Self Thread
Internal DR
(Pawl Nut)
11503417 4
Warranty Information
For vehicles repaired under warranty, use:
Labor
Operation
Description Labor Time
2060620 Front Side Door Inside
Handle Replacement
Use Published
Labor
Operation Time
Page 4 January, 2021 Bulletin No.: 21-NA-008
Version 1
Modified Released January 20, 2021
SEOCONTENT-END
1 Associated Document
Manufacturer Communications
Bulletin No.: 21-NA-008
Date: January, 2021
https://www.nhtsa.gov/recalls?nhtsaId=10187771
MC-10187771-9999.pdf 146.897KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- Genuine GM handles brought to you by ACDelco
- Smooth operation of the latch to open door/liftgate/tailgate
- Enhances the vehicle’s exterior appearance
- Designed and manufactured by GM to fit the exact specifications of your GM vehicle
- Offering the fit, finish, and durability you expect when you use Genuine GM Parts
- Matching appearance - this replacement door handle was specifically designed to look and function the same as the original interior handle on particular vehicles
- Seamless replacement - designed to match the dimensions and specifications of the handle that came stock on the vehicle
- Trustworthy construction - engineered in North America and backed by 100 years of automotive aftermarket experience
- Ensure fit - this handle is vehicle position specific, so double check you have the correct handle for the same position and side of the vehicle you want to replace
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool

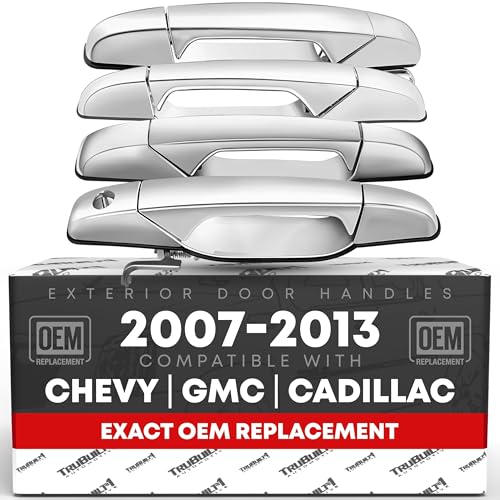

- EXTERIOR CHROME DOOR HANDLE - An upgrade design exterior chrome door handle kit, including all 4 Front & Rear Driver & Passenger (LH & RH) door handles. If your vehicle have a loose door handle or you have trouble shutting your door, these door handle is your way out.
