NHTSA ID Number: 10183194
Manufacturer Communication Number: 20NA177
Summary
This technical bulletin provides repair information to correct a customer concern of the loss of air pressure causing rear air suspension bags not to inflate.
Parts Information
Causal Part | Description | Part Number | Qty |
X | VALVE ASM,RR AIR SUSP LVLG | 19407966 | 1 |
SEOCONTENT-START
Copyright 2020 General Motors LLC. All Rights Reserved.
Service Bulletin Bulletin No.: 20-NA-177
Date: October, 2020
TECHNICAL
Subject: Loss of Air Pressure Causing Rear Air Suspension Bags Not to Inflate
Brand: Model:
Model Year: VIN: Engine: Transmission:
from to from to
Chevrolet Silverado 4500HD,
5500HD and 6500HD 2019 2020 All All
Involved Region or Country North America,
Additional Options (RPOs) GP1 – 13,500 Rear Air Suspension, GP8 – 15,500 Rear Air Suspension, G40 – 19,000
Rear Air Suspension
Condition Some customers may comment on the rear air suspension bags deflating and not reinflating.
Cause The cause of the condition may be the air spring leveling valve gasket fails, causing a
large air leak.
Correction Upon confirming the Condition, replace the rear air suspension leveling control valve.
Refer to Rear Air Suspension Leveling Control Valve Replacement, in SI.
Parts Information
Causal
Part
Description Part
Number
Qty
X VALVE ASM,RR
AIR SUSP LVLG
19407966 1
Warranty Information
For vehicles repaired under warranty, use:
Labor Operation Description Labor Time
8000510 Rear Air Suspension Leveling Control Valve Replacement Use Published Labor
Operation Time
Version 1
Modified Released October 23, 2020
GM bulletins are intended for use by professional technicians, NOT a “do-it-yourselfer”. They are written to inform these
technicians of conditions that may occur on some vehicles, or to provide information that could assist in the proper
service of a vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do a
job properly and safely. If a condition is described, DO NOT assume that the bulletin applies to your vehicle, or that your
vehicle will have that condition. See your GM dealer for information on whether your vehicle may benefit from the
information.
WE SUPPORT VOLUNTARY
TECHNICIAN
CERTIFICATION
SEOCONTENT-END
2 Affected Products
Vehicle
MAKE | MODEL | YEAR |
CHEVROLET | SILVERADO 4500HD | 2019-2020 |
1 Associated Document
Manufacturer Communications
MC-10183194-9999.pdf 494.492KB
“This site contains affiliate links for which OEMDTC may be compensated” |
- 【Air suspension】]also known as air springs or air compression suspension, is a suspension accessory that ensures a smooth ride.
- 【Applicable Models】Air suspension for Fit for 2002-2011 Cadillac Escalade;Suburban,Tahoe; GMC Yukon. (This model excluded: Avalanche 1500---With Z55 Autoride). It can replace the original shock absorber package directly.
- 【Excellent Quality】 Original factory replacement, high quality silicone, forged aluminum alloy. Bags lasted 80k miles and 8 years. air shocks for better fit to the original car
- 【Reference OEM Number】 OEM electronic air shocks: 22187156 25979393 25979394. Fit For CHEVY GM Truck SUV with Z55 Autoride.Interchangeable part numbers:23487280 19300069 19300070 19300071 19300072
- 【Package Included】 Come with a pair of CHEVY GM Truck SUV Air Suspensions Bags. If you have any questions about this product, please feel free to contact us.
- Upgraded replacement - this air compressor replaces and improves on the original part for certain Cadillac, Chevrolet and GMC vehicles
- Enhanced technology - features advanced thermal protection software to prevent future burn out
- More durable - addition of protective membrane prevents moisture intrusion
- Complete repair - brackets, dryer, air filter boxes, sealed sound isolation shielding, wiring harness and connectors included
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
- [Part Number of Air Height Leveling Control Valve] 90054007, 90554335, 90554902, 22040570. Please check your own truck model before purchase.
- [Widely Application of Height Control Valve] Fit for Kenworth, for Volvo, for Chevrolet, for GM, for many trucks, trailers, tractors, RVs etcs.
- [Function of Air Suspension Valve] It can control suspension height in commercial vehicles, by dynamically sensing the height change of the truck, properly complete the air change action to adjust the height of air spring.
- [Features of Height Control Air Suspension Valve] Come with 1/8" NPT Suspension Ports(top exhaust port, middle air spring port, and bottom supply port) and 8" bent arm, adopt with durable metal material and reliable constructions, ensure longer service life, provide a smooth driving experience.
- [Package] Include 1x Height Control Leveling Valve, 1x Fitting, 1x Tube, 1x Tube Fitting, 1x Locating Pin, Dump valve is not included. Please search online to get the professional installation video if in doubt.
- Vehicle Models Compatibility List: Chsuatuo Rear air shock absorber compatible with GMC YUKON XL1500, 2007-2013; GMC YUKON, 2007-2012; CHEVROLET TAHOE, 2007-2012; CHEVROLET SUBURBAN 1500, 2007-2012; CHEVROLET AVALANCHE, 2007-2012; CADILLAC ESCALADE EXT, 2007-2012; CADILLAC ESCALADE ESV, 2007-2012; CADILLAC ESCALADE, 2007-2013
- Reference Oem Number: 23487280,19300069,19300070,19300071,19300072,25979394,AS-2127,AS-2700,AS-2708,19302786,22187156,25979391,25979393,15756926,15852159,15869656,15869658,15918525,15924688,15945872,19300040,19300045,19300046,25885470,40034,4J-0005S,88965338,88965458,AS-2715,19302786 25871432 580-1091
- In-Situ Installation: our air shock absorber snap and shape are the same as the original, direct in-situ replacement of the original shock absorber without any modification
- Eliminate The Sound: Our rear air ride suspension shocks strut are made of natural rubber, which reduces vibration and noise and eliminates machine noise by more than 99%
- Smooth Operation: The rear air suspension shock struts can effectively solve cornering, high-speed instability, emergency braking, and nodding so that traveling is more stable and safer
- FITMENT - Fits the following years 2019 2020 2021 2022 2023 19 20 21 22 23

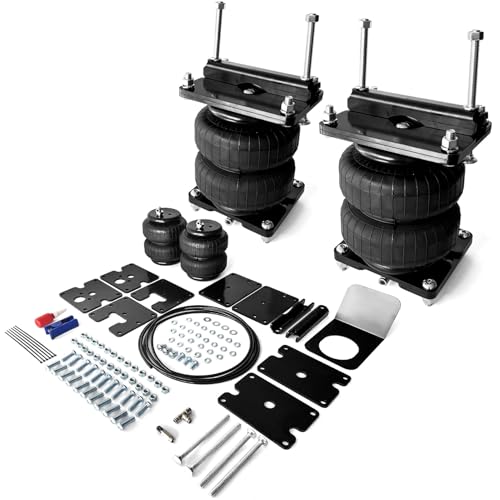

- REPLACE - This air helper spring kit is direct OEM replacement to Firestone Ride Rite W21-760-2609 which is suitable for 2019 - 2023 model Chevrolet Silverado / GMC Sierra 1500 pickup trucks with 2-wheel drive and 4-wheel drive. It fits High Country and Denali models as well.
