cNHTSA ID Number: 10226384
Manufacturer Communication Number: PIP5175E
Summary
This Preliminary Information communication provides information to the technician about vehicles that may have a delayed engagement into drive, shudder at a launch, or the transmission is slipping when shifting into 1st, 2nd, 3rd or 4th gears. This may be due to loose stator support to pump cover bolts causing a leak at the stator support to pump cover gasket. Technician will check for the bolts to be loose. If any of the bolts are loose or the gasket is misaligned or leaking, the transmission pump cover must be replaced and the 1234 clutch plates should be inspected for being distressed and repaired as needed.
Condition / Concern
Customers may comment on a delayed engagement into drive, shudder at a launch, or the transmission is slipping when shifting into 1st, 2nd, 3rd or 4th gears.
The customer may also comment that they feel a bump or hear a clunk noise during a 1-2 shift.
These concerns may only be present when the transmission is at operating temperature.
Parts Information
| Description | QTY | Part Number |
| COVER KIT,A/TRNS FLUID PUMP | 1 | 24248573  |

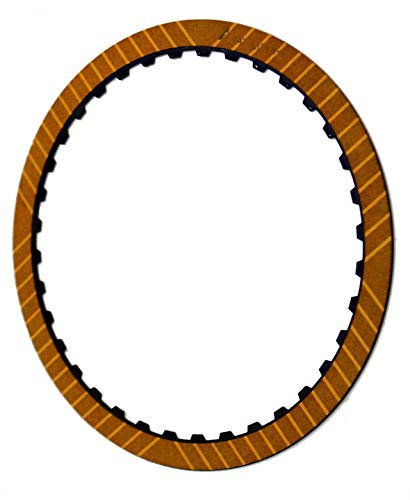

| PLATE ASM-1-2-3-4 CLU | 6 | 24224147 |
| PLATE,1-2-3-4 CLU(STEEL) | 5 | 24258080 |
118 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| CADILLAC | ESCALADE | 2013-2020 |
| CHEVROLET | AVALANCHE | 2013 |
| CHEVROLET | CAPRICE | 2013-2017 |
| CHEVROLET | CHEYENNE | 2017 |
| CHEVROLET | COLORADO | 2014-2022 |
| CHEVROLET | SILVERADO 1500 | 2013-2021 |
| CHEVROLET | SILVERADO 2500 | 2013-2021 |
| CHEVROLET | SILVERADO 3500 | 2013-2021 |
| CHEVROLET | SILVERADO 4500HD | 2019-2022 |
| CHEVROLET | SS | 2014-2017 |
| CHEVROLET | SUBURBAN | 2013-2020 |
| CHEVROLET | TAHOE | 2013-2020 |
| GMC | CANYON | 2015-2022 |
| GMC | SIERRA 1500 | 2013-2021 |
| GMC | SIERRA 2500 | 2014-2021 |
| GMC | SIERRA 3500 | 2014-2021 |
| GMC | SIERRA DENALI | 2019-2020 |
| GMC | YUKON DENALI | 2013, 2015-2019 |
| GMC | YUKON XL | 2014, 2020 |
1 Associated Document
Manufacturer Communications
Bulletin No.: PIP5175E
Published date: N/A
https://www.nhtsa.gov/recalls?nhtsaId=10226384
MC-10226384-9999.pdf 1107.194KB
MC-10226384-9999
NHTSA ID Number: 10178309
Manufacturer Communication Number: PIP5175D
Summary
This Preliminary Information communication provides information to the technician about vehicles that may have a delayed engagement into drive, shudder at a launch, or the transmission is slipping when shifting into 1st, 2nd, 3rd or 4th gears. This may be due to loose stator support to pump cover bolts causing a leak at the stator support to pump cover gasket. Technician will check for the bolts to be loose. If any of the bolts are loose or the gasket is misaligned or leaking, the transmission pump cover must be replaced and the 1234 clutch plates should be inspected for being distressed and repaired as needed.
1 Associated Document
Manufacturer Communications
Bulletin No.: PIP5175D
Published date: 06/8/2020
https://www.nhtsa.gov/recalls?nhtsaId=10178309
MC-10178309-9999.pdf 1103.788KB
MC-10178309-9999
