NHTSA ID Number: 10160979
Manufacturer Communication Number: PIC6361
Summary
This Preliminary Information communicates information to dealership technicians on how to adjust a rear spoiler so that it is level.
1 Affected Product
Vehicle
CHEVROLET | CORVETTE | 2019 |
SEOCONTENT-START
Bulletin No.: PIC6361
Published date: 05/3/2019
Preliminary Information
PIC6361 Rear Spoiler Is Out Of Adjustment
Models
Brand: Model: Model Years:
VIN:
from to
Engine: Transmissions:
Chevrolet Corvette ZR1 2019 All All
LT5 All
Condition / Concern
Involved
Region or Country
Condition
North America
Some dealership technicians may notice that after the rear spoiler has been attached to the vehicle
during the Pre Delivery Inspection (PDI), it may appear to be crooked.
Concern This concern may be caused by a Rear End Secondary Spoiler Bracket that is out
of adjustment.
Correction:
To correct this concern, remove the rear fascia and adjust the Rear End Secondary Spoiler Bracket
(seen below) as needed until the spoiler is level. The bolts that will need to be loosened in
order to perform this adjustment are
d out by the red arrows in the photos below.
When correctly adjusted, the spoiler mounting piers should be even left to right, and raise a
minimum of 3 mm above the rear fascia. If this minimum gap is not achieved, damage to the paint on
the fascia will result. The two pictures seen below show a close up of the spoiler stanchions as
they attach to the rear of the vehicle. This illustrates the necessary gap above the fascia.
Please follow this diagnostic or repair process thoroughly and complete each step. If the condition
exhibited is resolved without completing every step, the remaining steps do not need to be
performed.
Version History
Version 1
Modified 05/03/2019 – Created on
SEOCONTENT-END
Bulletin No.: PIC6361
Published date: 05/3/2019
To View or Download this Document Click Here
“This site contains affiliate links for which OEMDTC may be compensated” |

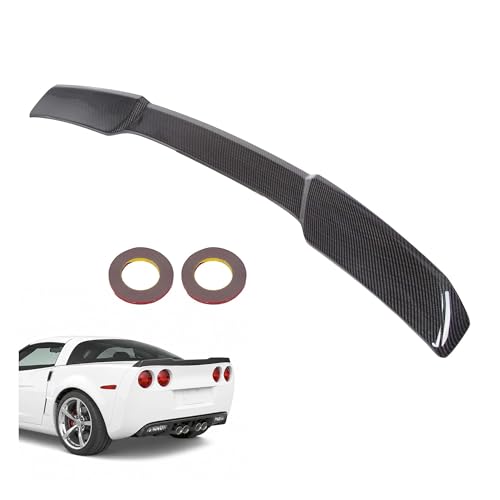

- Fitment: Compatible With ALL 2005-2013 Chevy Chevrolet Corvette C6 Models
- Style: H Style; Color: Carbon fiber painted; Made of high quality Plastic. Install with double sided tape, It is recommended that you wait at least 24 hours before driving to ensure that the rear spoiler fully fits to your vihicle
- Easy installation. Stick it on your vehicle with the mounting tape we offer. Clean up the surface before installing it
- Packing List:1 X Corvette C6 ZR1 Style Rear Trunk Lid Wing Spoiler. Including necessary hardware shown in the pictures
- Function: The rear spoiler can effectively reduce the air resistance of the vehicle at high speed, improve traction and grip, thus improving driving stability. At the same time, the rear wing spoiler effect can save some fuel
- Compatible with 2014 2015 2016 2017 2018 2019 Chevrolet Corvette C7 ALL Models.
- Color: Black; Made of superior ABS plastic for better performance and durability.
- The trunk Spoiler uses high-strength ABS plastic, light weight, strong and durable, wear-resistant and impact-resistant. And it uses aerodynamics to generate downward pressure on the car at high speeds, thereby offsetting some of the lift. Reduce the wind resistance coefficient, make the car close to the road, improve driving stability.
- Package include 1 X Trunk Spoiler; 1 X Pair of Corvette C7 Stage 2 Rear Side Winglet ( Left & Right ); 1 X Bag of Hardware.
- Instruction is NOT included!!! Professional installation is always highly recommended.

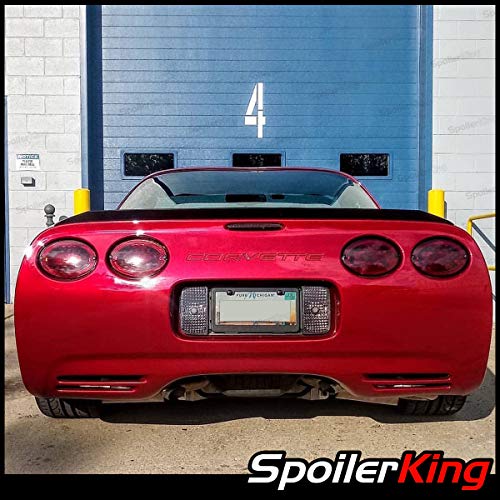

- 【APPLICATION】The trunk spoiler is compatible with Chevy Corvette C5 1997 1998 1999 2000 2001 2002 2003 2004
- 【COLOR】The trunk spoiler is of glossy black print. If you’d like a carbon fiber one, you can find it in our list
- 【PERFOAMANCE IMPROVEMENT】With the trunk spoiler, your Corvette C5 can keep more stable driving at high speed
- 【ZR1 EXTENDED STYLE DESIGN】The trunk spoiler can bring sporty and attractive appearance to your Corvette C5
- 【QUESTION US】If there is some trouble after you receive the item, please question us at any time. We will reply to you within 24 hours

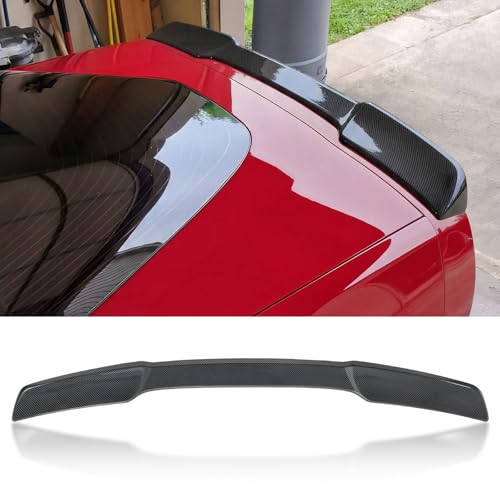

- ★Compatible Fitment:Our rear spoiler is specifically designed for 2005-2013 Chevy Chevrolet Corvette C6 Models. It accentuates the vehicle's natural lines and curves, enhancing its sporty and aggressive aesthetic.
- ★Superior Quality: Made from lightweight and OE-grade ABS material, our Corvette C6 Wing undergoes rigorous quality assessments.
- ★Easy Installation: Installing our spoiler is a breeze. Designed for seamless integration, our Spoiler comes with robust adhesive tape ensuring a stable fit.
- ★Aerodynamic Performance:Designed with an aerodynamic purpose,Our rear spoiler reduces wind resistance, increases fuel efficiency, and enhances high-speed stability, giving you a confident and thrilling driving experience.
- ★Package included: 1 x Corvette C6 ZR1 Style Rear Trunk Lid Wing Spoiler.
- Product Adaptation: This rear trunk spoiler is compatible with 2020 2021 2022 2023 2024 Chevy Chevrolet Corvette C8 Models. With this wing, your car can be transformed into a modern, sporty vehicle.
- Superior Build: Our wing is built to great precision and its sturdy construction provides great durability. The robustness of the ABS plastic provides this rear spoiler with a long lifespan and a superior finish.
- Improves Performance: When you are driving at high speed, the rear spoiler lip can improve the stability of the vehicle, reduce wind resistance to increase the car's grip, save fuel consumption to improve balance, and provide you with a more comfortable driving experience.
- Visual Upgrade: Featuring a sophisticated carbon fiber accent, this spoiler wing adds an impactful visual upgrade to your vehicle. The carbon fiber exterior offers a stylish look and feel that will make your car stand out wherever it goes.
- Package Contents: You will receive 1 x Rear Trunk Spoiler Wing and Installation Hardware. Instructions are not included. Bolt-on installation. Professional installation is highly recommended.
- Buy with Confidence: Please buy with confidence, if you have any questions, please do not worry, we will deal with you at the first time.
- Fitment:Please check top Automotive Fitment Filter and Description to see if this item will work on your vehicle before purchase
- Abs Plastic: Acrylonitrile Butadiene Styrene
- Location:Rear
- Part Number:UF2PFRTSLWMBA

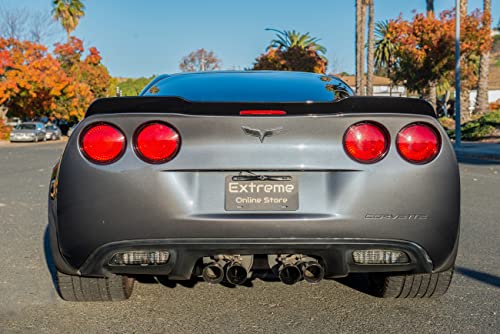

- Fits All 2005-2013 Chevrolet Corvette C6 Models
